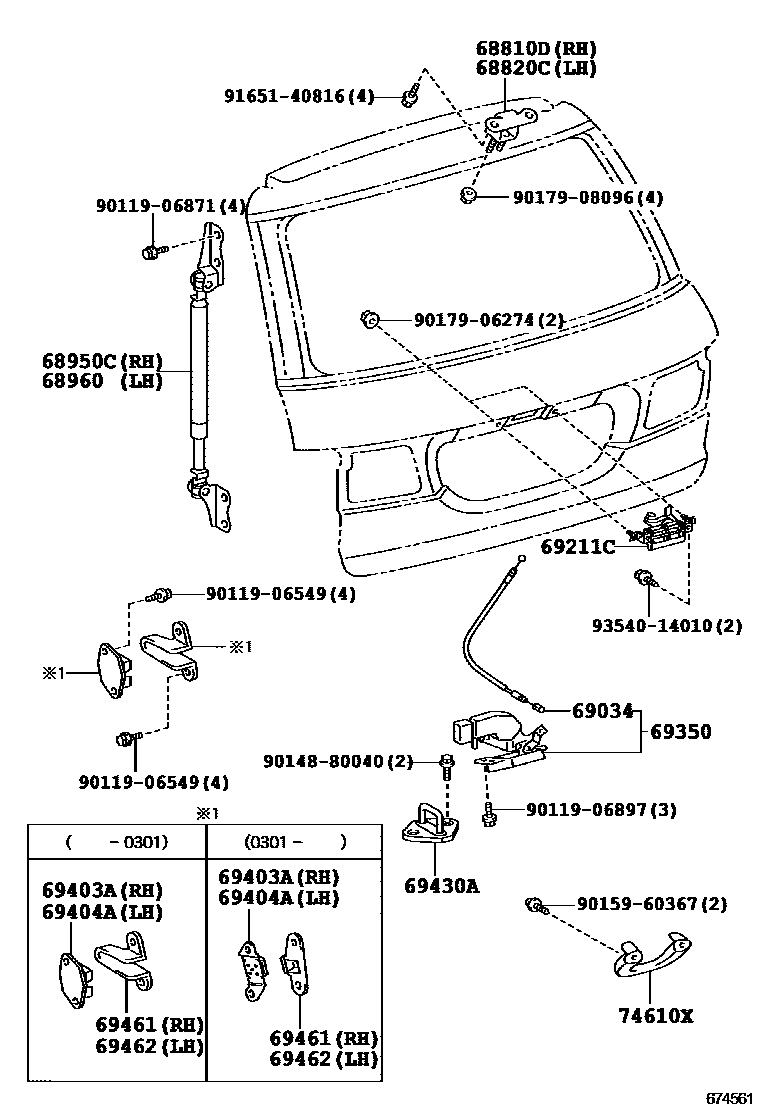

BACK DOOR LOCK & HINGE
68810DHINGE ASSY, BACK DOOR, RH
sub68810-28041
68820CHINGE ASSY, BACK DOOR, LH
sub68810-28041
69034CABLE SUB-ASSY, BACK DOOR LOCK
69211CHANDLE, BACK DOOR OUTSIDE
69350LOCK ASSY, BACK DOOR
69403ASTOPPER SUB-ASSY, BACK DOOR SIDE FEMALE, RH
69404ASTOPPER SUB-ASSY, BACK DOOR SIDE FEMALE, LH
69430ASTRIKER ASSY, BACK DOOR LOWER LOCK
69461STOPPER, BACK DOOR SIDE MALE, RH
69462STOPPER, BACK DOOR SIDE MALE, LH
74610XGRIP, ASSIST
9011906549
main90119-06549
9011906871
main90119-06871
9011906897
main90119-06897
9014880040
main90148-80040
9015960367
main90159-60367
9017906274
main90179-06274
9017908096
main90179-08096
9165140816
main91651-40816
9354014010
main93540-14010
22 parts on this diagram · 1 diagram in section
