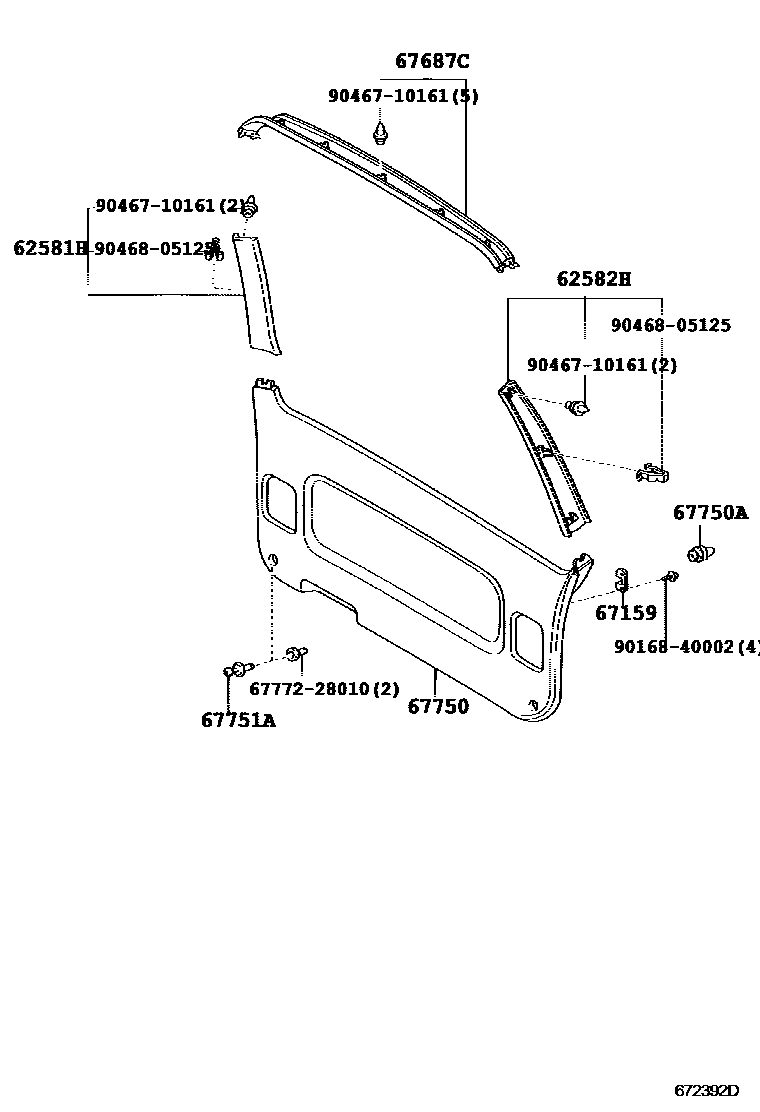

BACK DOOR PANEL & GLASS

0001 1 0002 1

62581HGARNISH, REAR WINDOW SIDE, RH

main62581-28040-A0iAHR10200308-200601

IVORY,TRIM0#

sub62581-28040

main62581-28040-B0iAHR10200105-200308

LT. BLUISH GRAY,TRIM13

sub62581-28040

main62581-28040-B1iAHR10200105-200308

MD.CHARCOAL,TRIM14

sub62581-28040

main62581-28040-B2iAHR10200308-200601

LT.GRAY,TRIM1#

sub62581-28040

62582HGARNISH, REAR WINDOW SIDE, LH

main62582-28050-A0iAHR10200308-200601

IVORY,TRIM0#

sub62582-28050

main62582-28050-B0iAHR10200105-200308

LT. BLUISH GRAY,TRIM13

sub62582-28050

main62582-28050-B1iAHR10200105-200308

MD.CHARCOAL,TRIM14

sub62582-28050

main62582-28050-B2iAHR10200308-200601

LT.GRAY,TRIM1#

sub62582-28050

67159RETAINER, BACK DOOR TRIM

main67159-28010iAHR10200105-200308

67687CGARNISH, BACK WINDOW

main67687-28060-A0iAHR10200308-200601

IVORY,TRIM0#

sub67687-28060

main67687-28060-B0iAHR10200105-200308

LT. BLUISH GRAY,TRIM13

sub67687-28060

main67687-28060-B1iAHR10200105-200308

MD.CHARCOAL,TRIM14

sub67687-28060

main67687-28060-B2iAHR10200308-200601

LT.GRAY,TRIM1#

sub67687-28060

67750BOARD ASSY, BACK DOOR TRIM

main67750-28080-A0iAHR10200308-200601

IVORY,TRIM0#

sub67750-28080

main67750-28080-B0iAHR10200105-200308

LT. BLUISH GRAY,TRIM13

sub67750-28080

main67750-28080-B1iAHR10200105-200308

MD.CHARCOAL,TRIM14

sub67750-28080

main67750-28080-B2iAHR10200308-200601

MD.GRAY,TRIM1#

sub67750-28080

67750ACLIP(FOR BACK DOOR TRIM)

main90467-10161iAHR10200311

main90467-10167iAHR10200105-200311

67751ACLIP(FOR BACK DOOR TRIM BOARD)

main90467-08209-A1iAHR10200308-200601

IVORY,TRIM0#

main90467-08209-B2iAHR10200105-200308

LT. BLUISH GRAY,TRIM13

main90467-08209-B3iAHR10200105-200308

MD.CHARCOAL,TRIM14

main90467-08209-B4iAHR10200308-200601

MD.GRAY,TRIM1#

6777228010WEATHERSTRIP, BACK DOOR TRIM, LH

main67772-28010

9016840002

main90168-40002

9046710161

main90467-10161

9046805125

main90468-05125

11 parts on this diagram · 2 diagrams in section
