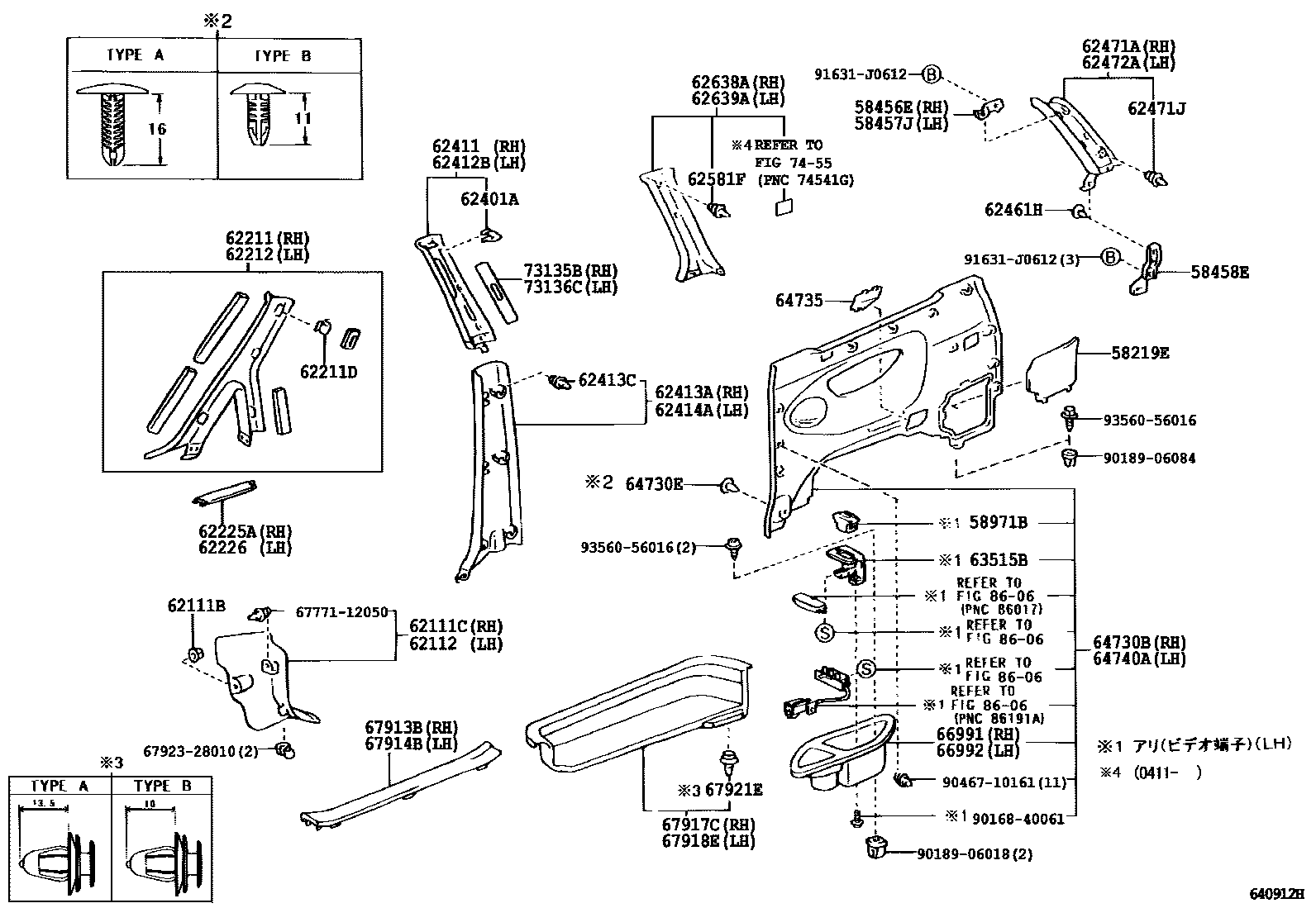

INSIDE TRIM BOARD
58219ECOVER, BATTERY BOX
58456EBRACKET, REAR GARNISH, NO.1 RH
58457JBRACKET, REAR GARNISH, NO.1 LH
58458EBRACKET, REAR GARNISH, NO.2 RH
58971BLOCK, CONSOLE COMPARTMENT DOOR
62111BCLIP(FOR COWL SIDE TRIM)
IVORY,TRIM0#
LT.GRAY,TRIM13,14
MD.GRAY,TRIM1#
62111CBOARD, COWL SIDE TRIM, RH
62112BOARD, COWL SIDE TRIM, LH
62211GARNISH, FRONT PILLAR, RH
62211DCLIP(FOR FRONT BODY PILLAR GARNISH)
62212GARNISH, FRONT PILLAR, LH
62225AGARNISH, FRONT PILLAR, LOWER RH
62226GARNISH, FRONT PILLAR, LOWER LH
62401ACLIP (FOR CENTER PILLAR GARNISH PANEL, UPPER)
62411GARNISH, CENTER PILLAR, RH
62412BGARNISH, CENTER PILLAR, UPPER LH
62413AGARNISH, CENTER PILLAR, LOWER RH
62413CCLIP (FOR CENTER LOWER GARNISH)
62414AGARNISH, CENTER PILLAR, LOWER LH
62461HCLIP (FOR ROOF SIDE INNER GARNISH)
62471AGARNISH, ROOF SIDE, INNER RH
62471JCLIP (FOR ROOF SIDE GARNISH)
62472AGARNISH, ROOF SIDE, INNER LH
62581FCLIP (FOR QUARTER PILLAR GARNISH)
62638AGARNISH, QUARTER PILLAR, RH
62639AGARNISH, QUARTER PILLAR, LH
63515BCOVER, VIDEO SET
64730BPANEL ASSY, DECK TRIM SIDE, RH
SANDAL WOOD,TRIM0#
DK.GRAY,TRIM1#
64735COVER, DECK TRIM SIDE SERVICE HOLE
sub64735-28010
sub64735-28010
sub64735-28010
sub64735-28010
sub64735-28020
sub64735-28020
sub64735-28020
sub64735-28020
64740APANEL ASSY, DECK TRIM SIDE, LH
SANDAL WOOD,TRIM0#
DK.GRAY,TRIM1#
66991HOLDER, QUARTER TRIM CUP, RH
67913BPLATE, FRONT DOOR SCUFF, RH
67914BPLATE, FRONT DOOR SCUFF, LH
67921ERETAINER, REAR DOOR SCUFF PLATE
73135BCOVER, SHOULDER BELT ANCHOR, RH
73136CCOVER, SHOULDER BELT ANCHOR, LH
7455
8606
6777112050WEATHERSTRIP, BACK DOOR TRIM, RH
main67771-12050
6792328010CUSHION, FRONT DOOR STIFFENER, NO.1
main67923-28010
9016840061
main90168-40061
9018906018
main90189-06018
9018906084
main90189-06084
9046710161
main90467-10161
91631J0612
main91631-J0612
9356056016
main93560-56016
50 parts on this diagram · 1 diagram in section
