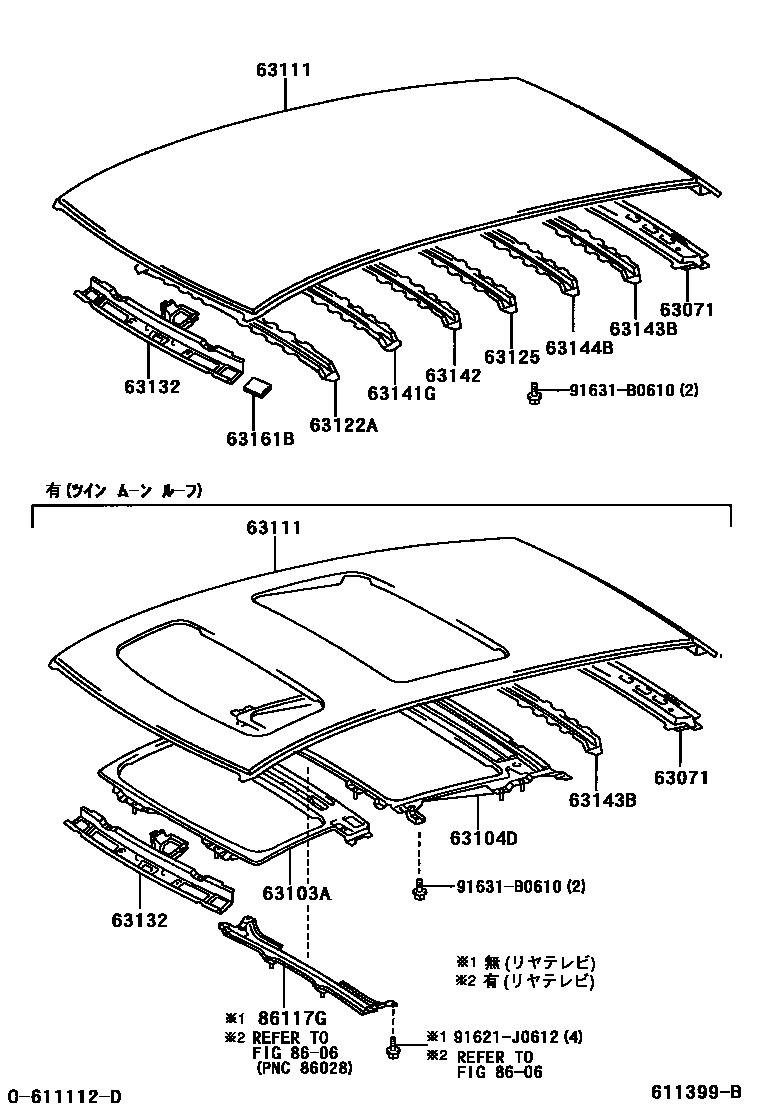

ROOF PANEL & BACK PANEL

0001 1 0002 1��(��� �-� �-�) 0003 1��(��� �-� �-�) 0004 1��(�-� �-�)

63071FRAME SUB-ASSY, BACK DOOR OPENING, UPPER

main63071-28020iAHR10200105-200308

63103AREINFORCEMENT SUB-ASSY, ROOF PANEL

main63103-28030iAHR10200105-200601

63104DREINFORCEMENT SUB-ASSY, ROOF PANEL, NO.2

main63104-28050iAHR10200105-200601

63111PANEL, ROOF

main63111-28170iAHR10200105-200308

main63111-28190iAHR10200105-200308

main63111-28210iAHR10200105-200308

main63111-28220iAHR10200105-200308

63122AREINFORCEMENT, ROOF PANEL, FRONT

main63122-28060iAHR10200105-200308

63125REINFORCEMENT, ROOF PANEL, NO.2

main63103-28060iAHR10..07S200111-200305

main63103-28080iAHR10..07S200308

main63125-28050iAHR10200105-200308

63132PANEL, WINDSHIELD HEADER, INNER

main63102-28010iAHR10200105-200308

63141GREINFORCEMENT, ROOF PANEL, NO.1

main63103-28040iAHR10200105-200308

main63103-28070iAHR10200308

main63141-28110iAHR10200105-200308

63142REINFORCEMENT, ROOF PANEL, NO.2

main63142-28060iAHR10200105-200308

63143BREINFORCEMENT, ROOF PANEL, NO.3

main63143-28050iAHR10200105-200308

63144BREINFORCEMENT, ROOF PANEL, NO.4

main63144-28050iAHR10200105-200308

63161BPLATE, ROOF HEADER PANEL, NO.1

main61815-28010iAHR10200105-200308

8606

86117GBRACKET, MULTI-DISPLAY CONTROLLER, A

main86117-28060iAHR10200105-200308

main86117-28061iAHR10200308

91621J0612

main91621-J0612

91631B0610

main91631-B0610

16 parts on this diagram · 4 diagrams in section
