SIDE MEMBER
55717GPANEL, COWL TOP SIDE, INNER RH
55718FPANEL, COWL TOP SIDE, INNER LH
58266LBRACKET, FUEL TUBE CLAMP
61027APILLAR SUB-ASSY, FRONT BODY, OUTER RH
61028APILLAR SUB-ASSY, FRONT BODY, OUTER LH
61063BRACKET, SUB-ASSY, REAR SHOCK ABSORBER, RH
61064BRACKET, SUB-ASSY, REAR SHOCK ABSORBER, LH
61101PANEL SUB-ASSY, COWL SIDE, RH
61102PANEL SUB-ASSY, COWL SIDE, LH
61106AREINFORCE SUB-ASSY, FRONT BODY PILLAR, UPPER RH
61107BREINFORCE SUB-ASSY, FRONT BODY PILLAR, UPPER LH
61108AREINFORCE SUB-ASSY, FRONT BODY PILLAR, LOWER RH
61109AREINFORCE SUB-ASSY, FRONT BODY PILLAR, LOWER LH
61147AEXTENSION, FRONT BODY PILLAR, UPPER OUTER
61148EXTENSION, FRONT BODY PILLAR, OUTER LH
61213BRAIL, ROOF SIDE, OUTER NO.2 RH
61214BRAIL, ROOF SIDE, OUTER NO.2 LH
61215ARAIL, ROOF SIDE, OUTER NO.3 RH
61216ARAIL, ROOF SIDE, OUTER REAR LH
61233ARAIL, ROOF SIDE, INNER NO.2 RH
61234ARAIL, ROOF SIDE, INNER NO.2 LH
61255PLATE, ROOF SIDE RAIL, OUTER RH
61256APLATE, ROOF SIDE RAIL, OUTER LH
61301CPILLAR SUB-ASSY, CENTER BODY, OUTER RH
61302CPILLAR SUB-ASSY, CENTER BODY, OUTER LH
61305REINFORCE SUB-ASSY, CENTER BODY PILLAR, LOWER RH
61306REINFORCE SUB-ASSY, CENTER BODY PILLAR, LOWER LH
61311BPILLAR, CENTER BODY, OUTER RH
61312BPILLAR, CENTER BODY, OUTER LH
61378CRETAINER, SLIDE DOOR DOWN STOP MALE, UPPER RH
61388CRETAINER, SLIDE DOOR DOWN STOP MALE, UPPER LH
61413CREINFORCEMENT, ROCKER PANEL, NO.2 RH
61414CREINFORCEMENT, ROCKER PANEL, NO.2 LH
61431PANEL, ROCKER, OUTER REAR RH
61432PANEL, ROCKER, OUTER REAR LH
61491CPLATE, NO.3 LOWER RAIL, INNER RH
61492CPLATE, NO.3 LOWER RAIL, INNER LH
61503AREINFORCE SUB-ASSY, SLIDE DOOR LOCK STRIKER, RH
NO.2
NO.1
61504AREINFORCE SUB-ASSY, SLIDE DOOR LOCK STRIKER, LH
NO.2
NO.1
61515BEXTENSION, QUARTER LOCK PILLAR, RH
61516EXTENSION, QUARTER LOCK PILLAR, LH
61527REINFORCEMENT, QUARTER LOCK PILLER, LOWER RH
61528REINFORCEMENT, QUARTER LOCK PILLER, LOWER LH
61611PANEL, QUARTER, RH
61612PANEL, QUARTER, LH
61615FREINFORCEMENT, QUARTER PANEL, OUTER RH
61616EREINFORCEMENT, QUARTER PANEL, OUTER LH
61617APANEL, QUARTER INNER, REAR RH
61618APANEL, QUARTER, INNER REAR LH
61621DTROUGH, BACK DOOR OPENING, RH
61622DTROUGH, BACK DOOR OPENING, LH
61623AEXTENSION, QUARTER PANEL, OUTER RH
61624AEXTENSION, QUARTER PANEL, OUTER LH
61625GEXTENSION, QUARTER PANEL, REAR RH
61627CREINFORCEMENT, QUARTER INNER PANEL, RH
61628CREINFORCEMENT, QUARTER INNER PANEL, LH
61631APANEL, QUARTER WHEEL HOUSE, OUTER RH
61632APANEL, QUARTER WHEEL HOUSE, OUTER LH
61633APANEL, QUARTER WHEEL HOUSE, INNER RH
61634APANEL, QUARTER WHEEL HOUSE, INNER LH
61635ABRACE, QUARTER WHEEL HOUSE, RH
61637ABRACE, QUARTER PANEL, RH
61638ABRACE, QUARTER PANEL, LH
61649APLATE, QUARTER WHEEL HOUSE
61665BREINFORCE, SEAT BELT ANCHORAGE TO QUARTER WHEEL HOUSE, RH
61666BREINFORCE, SEAT BELT ANCHORAGE TO QUARTER WHEEL HOUSE, LH
61675AREINFORCE, SEAT BELT ANCHOR, NO.2 UPPER RH
61676AREINFORCE, SEAT BELT ANCHOR, NO.2 UPPER LH
NO.1
NO.2
61717AREINFORCEMENT, QUARTER PANEL EXTENSION, RH
61718AREINFORCEMENT, QUARTER PANEL EXTENSION, LH
61731BPANEL, ROOF SIDE, INNER RH
61732BPANEL, ROOF SIDE, INNER LH
61733APANEL, ROOF SIDE, INNER FRONT RH
61734APANEL, ROOF SIDE, INNER FRONT LH
61735APANEL, ROOF SIDE, INNER REAR RH
61736APANEL, ROOF SIDE, INNER REAR LH
61745AREINFORCEMENT, BACK DOOR OPENING, LOWER RH
61746AREINFORCEMENT, BACK DOOR OPENING, LOWER LH
61764BREINFORCEMENT, SEAT BELT ANCHOR, NO.2 RH
61765AREINFORCEMENT, SEAT BELT ANCHOR, NO.2 LH
61767GRETAINER, SEAT BELT ANCHOR, NO.2
61768AREINFORCEMENT, SEAT BELT ANCHOR, NO.2 RH
61769AREINFORCEMENT, SEAT BELT ANCHOR, NO.2 LH
61771BFRAME, BACK DOOR OPENING UPPER CORNER, RH
61772BFRAME, BACK DOOR OPENING UPPER CORNER, LH
61775CFRAME, BACK DOOR OPENING SIDE, RH
61776DFRAME, BACK DOOR OPENING SIDE, LH
61777DRETAINER, BACK DOOR SIDE STOPPER, RH
61778JRETAINER, BACK DOOR SIDE STOPPER, LH
62615ECOVER, QUARTER WHEEL HOUSE, INNER RH
62616DCOVER, QUARTER WHEEL HOUSE, INNER LH
66310KHOOK ASSY, ROPE
6755
68308BRAIL SUB-ASSY, SLIDE DOOR, UPPER RH
68309ARAIL SUB-ASSY, SLIDE DOOR, UPPER LH
68981ARETAINER, BACK DOOR STAY, RH
68982ARETAINER, BACK DOOR STAY, LH
76587APROTECTOR, CENTER PILLAR OUTER
76627MUDGUARD, QUARTER PANEL, INNER
76628BMUDGUARD, QUARTER PANEL, UPPER REAR RH
76629BMUDGUARD, QUARTER PANEL, UPPER REAR LH
77371KBRACKET, FUEL FILLER OPENING LID LOCK

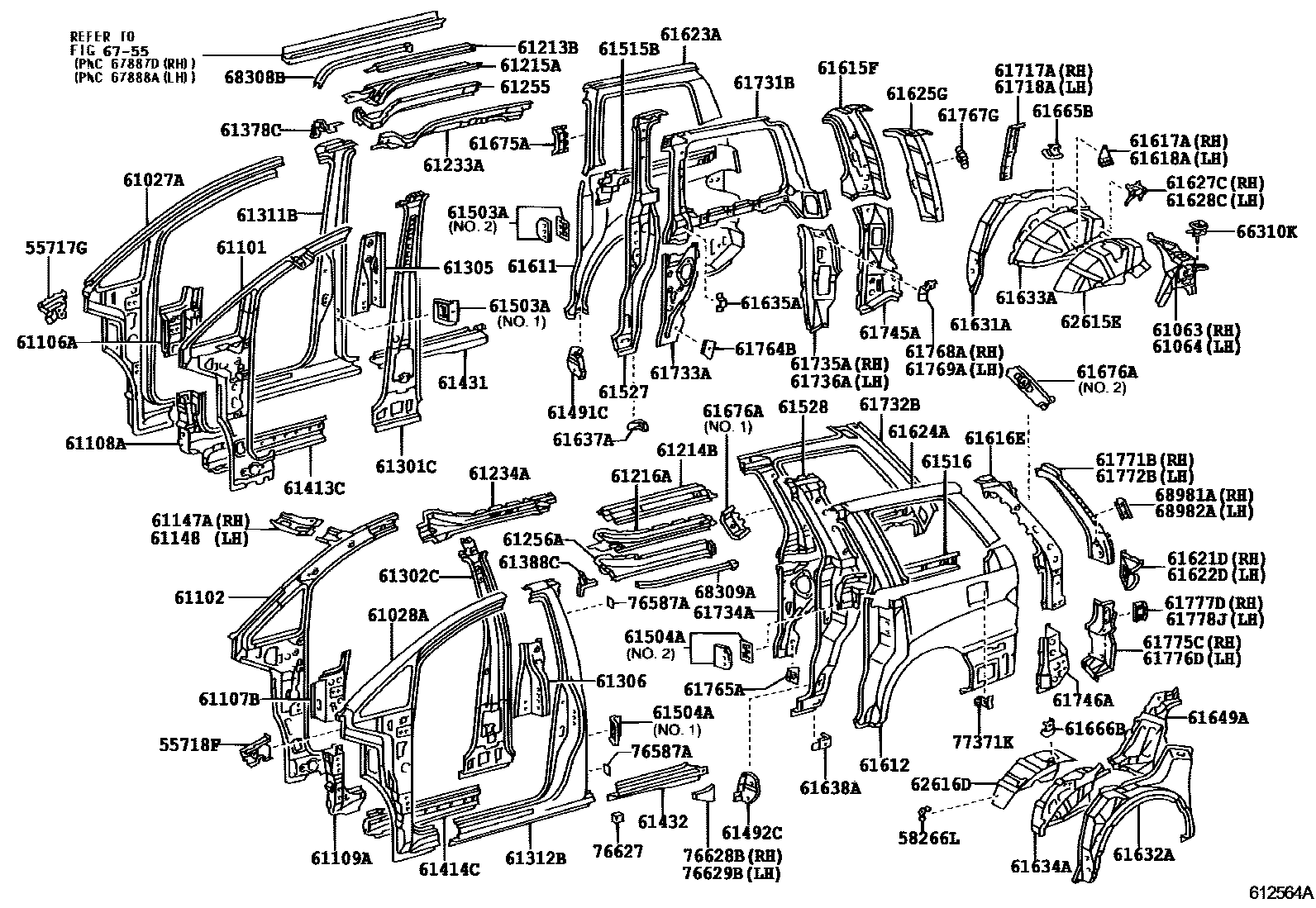

102 parts on this diagram · 2 diagrams in section
