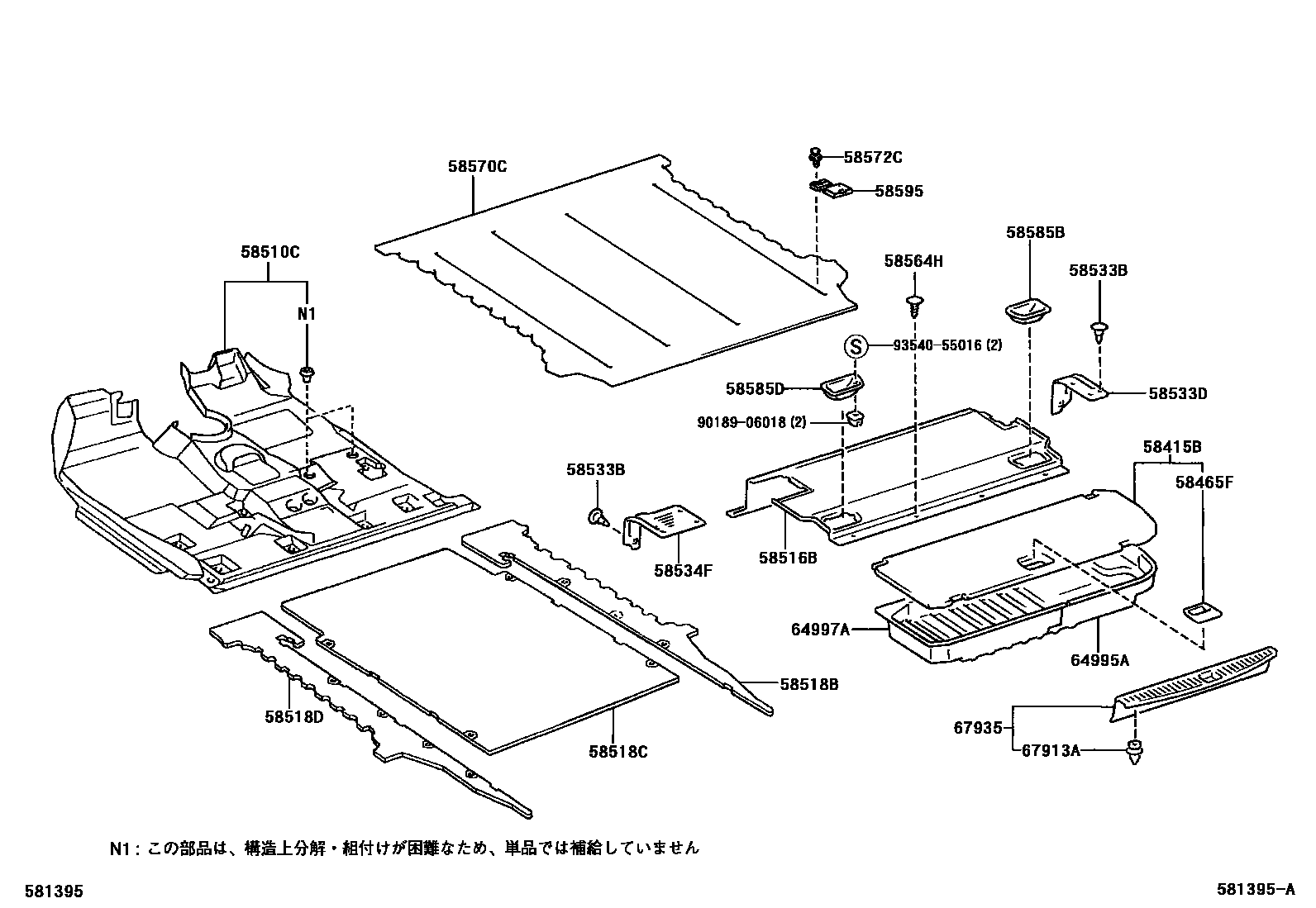

FLOOR MAT & SILENCER PAD
58415BBOARD, REAR FLOOR, NO.1
LT. BLUISH GRAY,TRIM13
MEDIUM CHARCOAL,TRIM14
IVORY,TRIM0#
MD GRAY,TRIM1#
58465FHANDLE, DECK BOARD
58510CCARPET ASSY, FRONT FLOOR, FRONT
LT. BLUISH GRAY,TRIM13
MEDIUM CHARCOAL,TRIM14
58516BMAT, FRONT FLOOR, REAR NO.2
LT. BLUISH GRAY,TRIM13
MEDIUM CHARCOAL,TRIM14
IVORY,TRIM0#
MD GRAY,TRIM1#
58518BMAT, REAR FLOOR, NO.2
58518CMAT, REAR FLOOR, NO.2
58518DMAT, REAR FLOOR, NO.2
58533BCLIP(FOR FLOOR CARPET COVER)
58533DCOVER, FLOOR CARPET, CENTER RH
58534FCOVER, FLOOR CARPET, CENTER LH
58564HCLIP(FOR REAR FLOOR CARPET)
58570CCARPET ASSY, REAR FLOOR
LT. BLUISH GRAY,TRIM13
MEDIUM CHARCOAL,TRIM14
LT. BLUISH GRAY,TRIM13
MEDIUM CHARCOAL,TRIM14
IVORY,TRIM0#
MD GRAY,TRIM1#
IVORY,TRIM0#
MD GRAY,TRIM1#
58572CCLIP, REAR FLOOR MAT SET
58585BCOVER, REAR FLOOR SEAT LOCK
58585DCOVER, REAR FLOOR SEAT LOCK
58595MOULDING, FLOOR CARPET, NO.3
64995ABOX, DECK FLOOR, RH
64997ABOX, DECK FLOOR, LH
67913ACLIP(FOR SCUFF PLATE)
67935PLATE, BACK DOOR SCUFF
9018906018
9354055016
22 parts on this diagram · 1 diagram in section
