REAR FLOOR PANEL & REAR FLOOR MEMBER

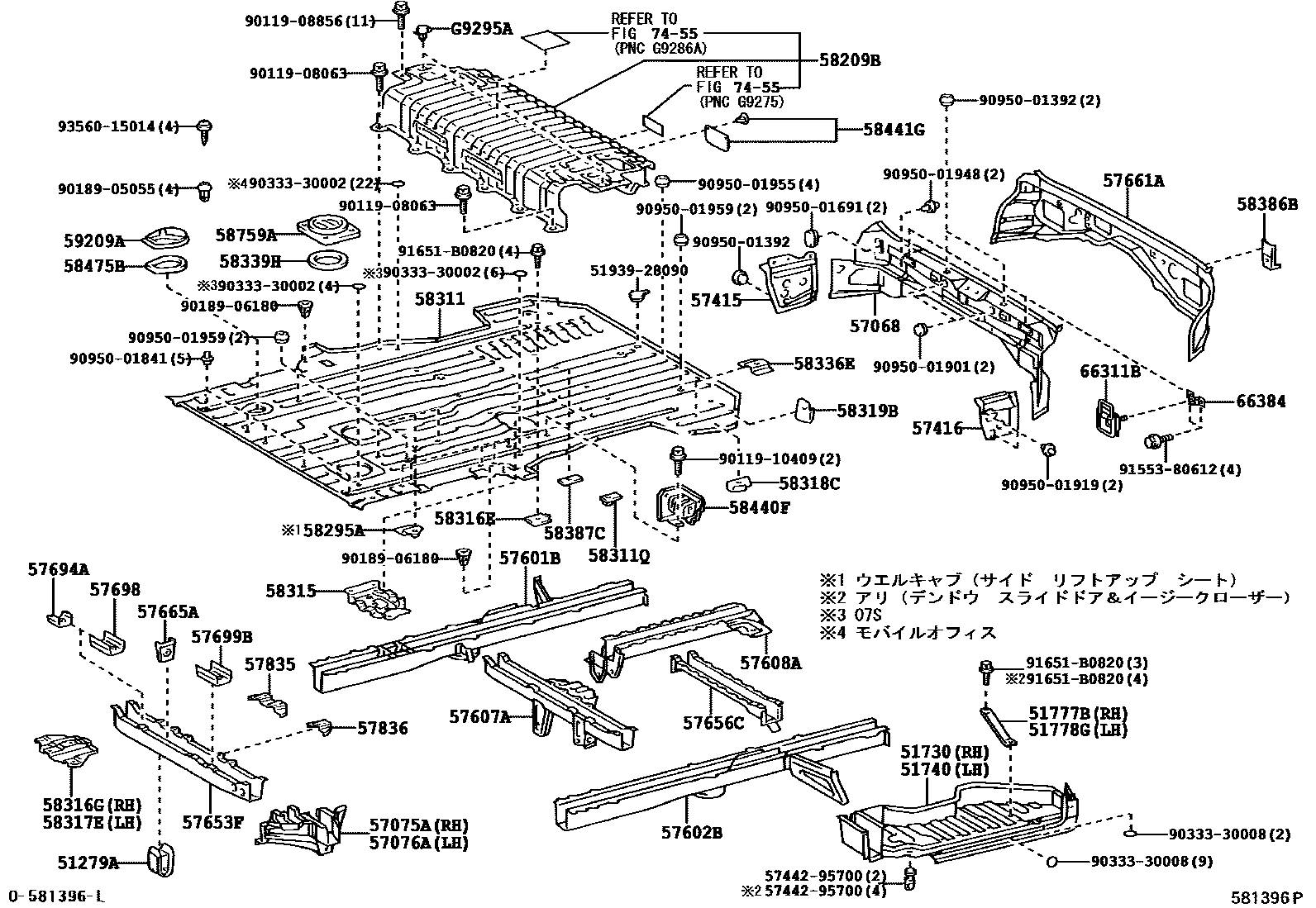

Parts diagram
51279ABRACKET, DIFFERENTIAL SUPPORT
main51279-28020i200105-200205
main51279-28021i200205-200308
51730STEP ASSY, REAR FLOOR, RH
main51730-28030i200105-200308
main51730-28060i200308
51740STEP ASSY, REAR FLOOR, LH
main51740-28030i200105-200308
main51740-28050i200105-200308
51777BSTAY, STEP PLATE
main51777-28010i200105-200308
main51777-28020i200308
51778GSTAY, STEP PLATE, LH
main51778-28010i200105-200308
main51778-28020i200105-200308
57068MEMBER SUB-ASSY, REAR FLOOR REAR CROSS, INNER
main57068-28250i200105-200308
57075ABRACKET SUB-ASSY, REAR SUSPENSION ARM, RH
main57075-28010i200105-200304
sub57075-28030
main57075-28030i200304-200308
57076ABRACKET SUB-ASSY, REAR SUSPENSION ARM, LH
main57076-28010i200105-200304
sub57076-28030
main57076-28030i200304-200308
57415RAIL, FLOOR SIDE, REAR RH
main57415-28080i200105-200308
57416RAIL, FLOOR SIDE, REAR LH
main57416-28090i200105-200308
57601BMEMBER SUB-ASSY, REAR FLOOR SIDE, FRONT RH
main57601-28040i200105-200308
main57601-28050i200105-200308
57602BMEMBER SUB-ASSY, REAR FLOOR SIDE, FRONT LH
main57602-28030i200105-200302
sub57602-28050
main57602-28050i200105-200302
main57602-28050i200302-200308
57607AMEMBER SUB-ASSY, REAR FLOOR CROSS, NO.3
main57607-28400i200105-200205
main57607-28402i200205-200308
57608AMEMBER SUB-ASSY, REAR FLOOR CROSS, NO.4
main57608-28210i200105-200205
main57608-28211i200205-200308
57653FMEMBER, REAR FLOOR CROSS, NO.2
main57653-28100i200105-200308
57656CMEMBER, REAR FLOOR CROOS, NO.5
main57656-28040i200105-200308
57661APANEL, REAR FLOOR REAR CROSS, OUTER
main57661-28020i200105-200308
57665AREINFORCEMENT, REAR FLOOR CROSSMEMBER, NO.2
main57665-28030i200105-200308
57694AREINFORCEMENT, FUEL TANK SUPPORT, NO.2
main57694-28020i200105-200308
57698REINFORCEMENT, FUEL TANK
main57698-28010i200105-200308
57699BREINFORCE, FUEL TANK MOUNTING BRACKET, NO.3
main57699-28010i200105-200308
57835REINFORCEMENT, REAR NO.1 SEAT LEG, REAR NO.1
main57835-28100i200105-200308
57836REINFORCEMENT, REAR NO.1 SEAT LEG, REAR NO.2
main57836-28070i200105-200308
58209BCOVER SUB-ASSY, BATTERY SERVICE HOLE
main58209-28020i200105-200308
sub58209-28030
main58209-28030i200308
58295AREINFORCEMENT, SEAT BELT ANCHOR FLOOR
main58295-28030i200105-200308
58311PAN, REAR FLOOR
main58311-2J280i200105-200201
sub58311-2J281
main58311-2J281i200201-200210
sub58311-2J282
sub90950-01955
main58311-2J282i200210-200301
sub58311-2J283
sub58316-28021
sub58317-28031
main58311-2J283i200301-200308
sub58311-2J770
sub90333-30002
main58311-2J290i200105-200201
sub58311-2J291
main58311-2J291i200201-200210
sub58311-2J292
sub90950-01955
main58311-2J292i200210-200301
sub58311-2J293
sub58316-28021
sub58317-28031
main58311-2J293i200301-200308
sub58311-2J780
sub90333-30002
main58311-2J300i200105-200201
sub58311-2J301
main58311-2J301i200201-200210
sub58311-2J302
sub90950-01955
main58311-2J302i200210-200301
sub58311-2J303
sub58316-28021
sub58317-28031
main58311-2J303i200301-200308
sub58311-2J790
sub90333-30002
main58311-2J310i200105-200201
sub58311-2J311
main58311-2J311i200201-200210
sub58311-2J312
sub90950-01955
main58311-2J312i200210-200301
sub58311-2J313
sub58316-28021
sub58317-28031
main58311-2J313i200301-200308
sub58311-2J800
sub90333-30002
main58311-2J320i200105-200201
sub58311-2J321
main58311-2J321i200201-200210
sub58311-2J322
sub90950-01955
main58311-2J322i200210-200301
sub58311-2J323
sub58316-28021
sub58317-28031
main58311-2J323i200301-200308
sub58311-2J810
sub90333-30002
main58311-2J330i200105-200201
sub58311-2J331
main58311-2J331i200201-200210
sub58311-2J332
sub90950-01955
main58311-2J332i200210-200301
sub58311-2J333
sub58316-28021
sub58317-28051
main58311-2J333i200301-200308
sub58311-2J820
sub90333-30002
main58311-2J410i200105-200201
sub58311-2J411
main58311-2J411i200201-200210
sub58311-2J412
sub90950-01955
main58311-2J412i200210-200301
sub58311-2J413
sub58316-28021
sub58317-28031
main58311-2J413i200301-200308
sub58311-2J830
sub90333-30002
main58311-2J420i200105-200201
sub58311-2J421
main58311-2J421i200201-200210
sub58311-2J422
sub90950-01955
main58311-2J422i200210-200301
sub58311-2J423
sub58316-28021
sub58317-28051
main58311-2J423i200301-200308
sub58311-2J840
sub90333-30002
main58311-2J680i200308
main58311-2J690i200308
main58311-2J700i200308
main58311-2J710i200308
main58311-2J720i200308
main58311-2J730i200308
main58311-2J740i200308
main58311-2J750i200308
main58311-2J850i200308
main58311-2J860i200308
58311QPLATE, REAR FLOOR CROSSMEMBER, SIDE
main64149-95A00i200105-200308
58315EXTENSION, REAR FLOOR PANEL
main58315-28090i200105-200308
58316ERETAINER, REAR SEAT SET
mainC519622020i200105-200308
58316GRETAINER, REAR SEAT, NO.1
main58316-28020i200105-200301
main58316-28021i200301-200308
58317ERETAINER, REAR SEAT, NO.2
main58317-28030i200105-200301
main58317-28031i200301-200308
main58317-28050i200105-200301
main58317-28051i200301-200308
58318CBRACKET, REAR FLOOR CROSSMEMBER
main58318-28010i200105-200308
58319BBRACKET, REAR FLOOR SIDE PANEL
main58319-28050i200105-200308
58336EPLATE, FLOOR SIDE, FRONT LH
main58336-28030i200105-200308
58339HPACKING, REAR FLOOR SERVICE HOLE
main58337-28010i200105-200308
58386BBRACKET, REAR BUMPER COVER, NO.2
main58386-28010i200105-200308
58387CPLATE, REAR FLOOR FINISH
main58387-28060i200105-200308
58440FCOVER ASSY, BATTERY SERVICE HOLE
main58207-28030i200105-200308
58441GCOVER, BATTERY SERVICE HOLE
main58441-28040i200105-200308
58475BPACKING, INSPECTION HOLE COVER
main58475-28020i200203-200308
main58475-95J00i200105-200203
58759ACOVER, FUEL TANK INSPECTION HOLE
main58759-28010i200105-200308
59209ACOVER SUB-ASSY, INSPECTION HOLE
main59209-95J00i200105-200308
66311BHOOK, ROPE
main66310-28040-A0i200308-200601
IVORY,TRIM0#
sub66310-28040
main66310-28040-B0i200105-200308
LT. BLUISH GRAY,TRIM13
sub66310-28040
main66310-28040-B1i200105-200308
MD.CHARCOAL,TRIM14
sub66310-28040
main66310-28040-B2i200308-200601
MD.GRAY,TRIM1#
sub66310-28040
66384BRACKET, ROPE HOOK BAR
main66384-28010i200105-200308
7455
G9295ABRACKET, EV BATTERY WATER TANK
mainG929528030i200105-200308
5193928090CUP, SPARE TIRE CARRIER WINCH
main51939-28090
5744295700PLUG, STEP PANEL HOLE
main57442-95700
9011908063
main90119-08063
9011908856
main90119-08856
9011910409
main90119-10409
9018905055
main90189-05055
9018906180
main90189-06180
9033330002
main90333-30002
9033330008
main90333-30008
9095001392
main90950-01392
9095001691
main90950-01691
9095001841
main90950-01841
9095001901
main90950-01901
9095001919
main90950-01919
9095001948
main90950-01948
9095001955
main90950-01955
9095001959
main90950-01959
9155380612
main91553-80612
91651B0820
main91651-B0820
9356015014
main93560-15014

66 parts on this diagram · 1 diagram in section
