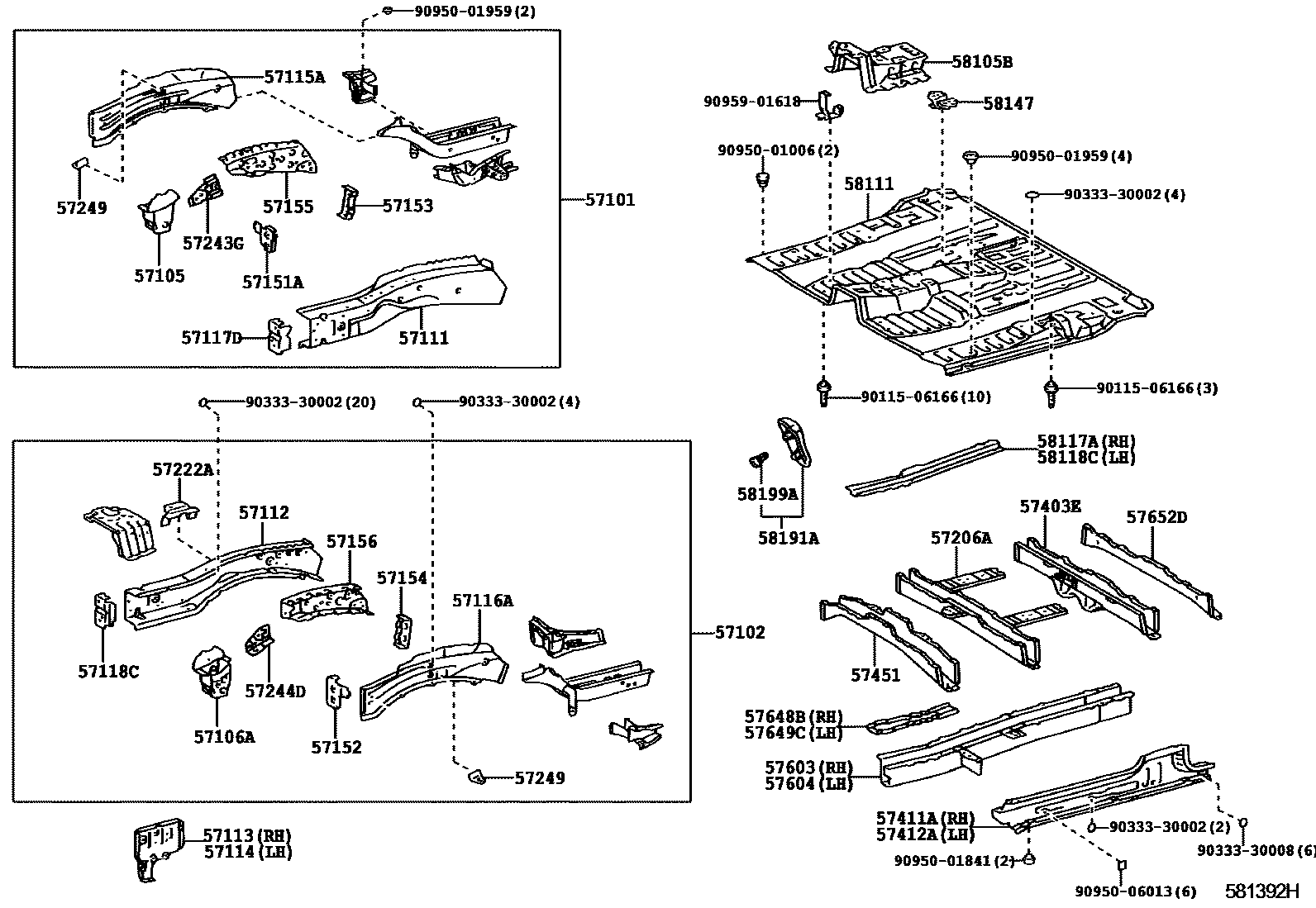

FRONT FLOOR PANEL & FRONT FLOOR MEMBER

57101MEMBER SUB-ASSY, FRONT SIDE, RH

main57101-28640iAHR10200105-200304

sub57101-28850

main57101-28850iAHR10200304-200601

57102MEMBER SUB-ASSY, FRONT SIDE, LH

main57102-28690iAHR10200105-200304

sub57102-28750

main57102-28750iAHR10200304-200601

57105BRACKET SUB-ASSY, FRONT SUSPENSION MEMBER MOUNTING, FRONT RH

main57105-28120iAHR10200105-200601

57106APLATE SUB-ASSY, FRONT SIDE MEMBER, LH

main57106-28120iAHR10200105-200308

57111MEMBER, FRONT SIDE, RH

main57111-28230iAHR10200105-200601

57112MEMBER, FRONT SIDE, LH

main57112-28260iAHR10200105-200601

57113EXTENSION, FRONT SIDE MEMBER, RH

main57113-28080iAHR10200105-200304

sub57113-28120

main57113-28120iAHR10200304-200601

57114EXTENSION, FRONT SIDE MEMBER, LH

main57114-28070iAHR10200105-200601

57115APLATE, FRONT SIDE MEMBER, OUTER RH

main57115-28090iAHR10200105-200601

57116APLATE, FRONT SIDE MEMBER, OUTER LH

main57116-28090iAHR10200105-200601

57117DRETAINER, FRONT BUMPER ARM, RH

main57117-28060iAHR10200105-200303

sub57117-28080

main57117-28080iAHR10200304-200601

57118CRETAINER, FRONT BUMPER ARM, LH

main57118-28050iAHR10200105-200304

sub57118-28060

main57118-28060iAHR10200304-200601

57151AREINFORCEMENT, FRONT SIDE MEMBER, NO.1 RH

main57151-28120iAHR10200105-200601

57152REINFORCEMENT, FRONT SIDE MEMBER, NO.1 LH

main57152-28120iAHR10200105-200601

57153REINFORCEMENT, FRONT SIDE MEMBER, NO.2 RH

main57153-28080iAHR10200105-200601

57154REINFORCEMENT, FRONT SIDE MEMBER, NO.2 LH

main57154-28080iAHR10200105-200601

57155REINFORCEMENT, FRONT SIDE MEMBER, NO.3, RH

main57155-28070iAHR10200105-200601

57156REINFORCEMENT, FRONT SIDE MEMBER, NO.3, LH

main57156-28080iAHR10200105-200601

57206AMEMBER SUB-ASSY, FRONT FLOOR CROSS, NO.2

main57206-28100iAHR10200105-200308

57222ABRACKET, FRONT SIDE MEMBER, LH

main57222-28040iAHR10200308-200601

57243GREINFORCEMENT, FRONT SIDE MEMBER, NO.6 RH

main57243-28070iAHR10200105-200601

57244DREINFORCEMENT, FRONT SIDE MEMBER, NO.6 LH

main57244-28040iAHR10200105-200601

57249BRACKET, FLEXIBLE HOSE, NO.1

main57249-10040iAHR10200105-200601

57403EMEMBER SUB-ASSY, CENTER FLOOR CROSS, NO.3

main57403-28100iAHR10..07S200105-200308

main57403-28110iAHR10..08S200105-200308

57411AMEMBER, FLOOR SIDE, INNER RH

main57411-28010iAHR10200105-200308

57412AMEMBER, FLOOR SIDE, INNER LH

main57412-28010iAHR10200105-200308

57451MEMBER, FRONT FLOOR CROSS

main57408-28080iAHR10200105-200304

sub57408-28081

main57408-28081iAHR10200304-200308

57603MEMBER SUB-ASSY, REAR FLOOR SIDE, FRONT RH

main57603-28010iAHR10200105-200308

sub57603-28050

57604MEMBER SUB-ASSY, REAR FLOOR SIDE, FRONT LH

main57604-28010iAHR10200105-200308

sub57604-28040

main57604-28040iAHR10..07S200105-200308

57648BREINFORCE, REAR FLOOR SIDE MEMBER, REAR UPPER RH

main57648-28030iAHR10200105-200308

57649CREINFORCE, REAR FLOOR SIDE MEMBER, REAR UPPER LH

main57649-28020iAHR10200105-200308

57652DMEMBER, REAR FLOOR CROSS, NO.1

main57652-28100iAHR10200105-200308

main57652-28110iAHR10..07S200105-200308

58105BPANEL SUB-ASSY, FRONT FLOOR REAR UPPER SUB

main58105-28020iAHR10200105-200308

58111PAN, FRONT FLOOR

main58111-28720iAHR10200105-200308

58117AREINFORCEMENT, FRONT FLOOR SIDE, RH

main58117-28030iAHR10200105-200308

58118CREINFORCEMENT, FRONT FLOOR SIDE, LH

main58118-28050iAHR10200105-200308

58147BRACKET, FRONT FLOOR HOUSING, FRONT LH

main58147-28010iAHR10200105-200308

58191AFOOTREST, FRONT FLOOR, RH

main58191-28040iAHR10200105-200308

58199ACLIP, FOOTREST, NO.2

main58199-20050iAHR10200105-200308

9011506166

main90115-06166

9033330002

main90333-30002

9033330008

main90333-30008

9095001006

main90950-01006

9095001841

main90950-01841

9095001959

main90950-01959

9095006013

main90950-06013

9095901618

main90959-01618

47 parts on this diagram · 1 diagram in section
