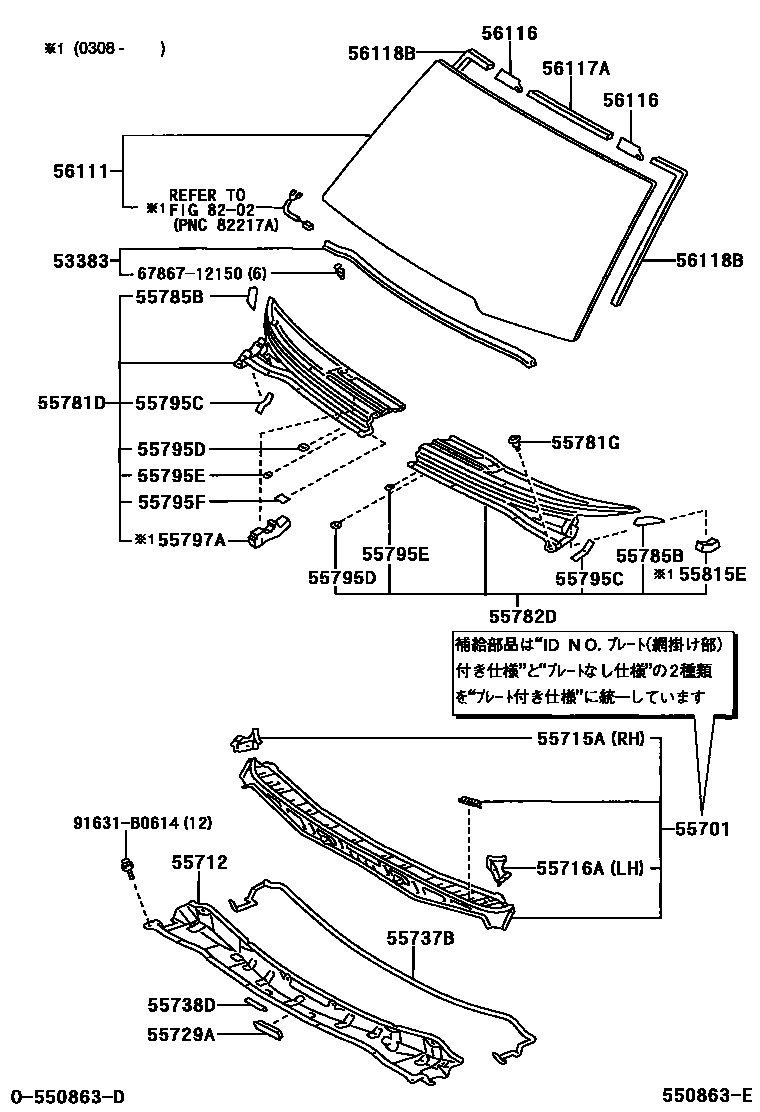

COWL PANEL & WINDSHIELD GLASS

53383SEAL, HOOD TO COWL TOP

main53383-28030iAHR10200105-200308

55701PANEL SUB-ASSY, COWL

main55700-28020iAHR10200105-200308

55712PANEL, COWL TOP OUTSIDE, FRONT

main55720-28060iAHR10200105-200308

main55720-28130iAHR10200308

55715ABRACE, COWL TOP TO APRON, RH

main55715-28020iAHR10200105-200308

55716ABRACE, COWL TOP TO APRON, LH

main55716-28060iAHR10200105-200308

55729ACOVER, COWL PANEL HOLE

main55729-28010iAHR10200308

55737BSEAL, HEATER AIR DUCT SPLASH SHIELD, NO.1

main55737-28010iAHR10200308

55738DSEAL, HEATER AIR DUCT SPLASH SHIELD, NO.2

main55738-28020iAHR10200105-200308

55781DLOUVER, COWL TOP VENTILATOR, RH

main55708-28140iAHR10200308

main55708-28150iAHR10200105-200308

55781GCLIP, COWL TOP VENTILATOR LOUVER

main55799-28020×8iAHR10200308

main90467-07197×8iAHR10200105-200308

55782DLOUVER, COWL TOP VENTILATOR, LH

main55709-28050iAHR10200308

main55709-28060iAHR10200308

55785BSHEET, COWL TOP VENTILATOR LOUVER

main55785-28030×2iAHR10200105-200308

55795CSEAL, WIPER MOTOR SERVICE HOLE

main55795-28010iAHR10200308

main55795-28050iAHR10200105-200308

55795DSEAL, WIPER MOTOR SERVICE HOLE

main55795-28020×12iAHR10200105-200308

55795ESEAL, WIPER MOTOR SERVICE HOLE

main55795-28030×2iAHR10200105-200308

55795FSEAL, WIPER MOTOR SERVICE HOLE

main55795-28040iAHR10200105-200308

55797ASEAL, COWL WATER EXTRACT

main55797-28010iAHR10200308

55815ESEAL, FRONT VENTILATOR, NO.1

main55815-28010iAHR10200308

56111GLASS, WINDSHIELD

main56111-28340iAHR10200105-200308

main56111-28450iAHR10200308

main56111-28460iAHR10200308

56116SPACER, WINDSHIELD GLASS

main56116-35050×2iAHR10200105-200308

56117ADAM, WINDOW GLASS ADHESIVE

main56118-28030iAHR10200105-200308

sub64813-52010

56118BDAM, WINDOW GLASS ADHESIVE, NO.2

main56118-28030×2iAHR10200105-200308

sub64813-52010

8202

6786712150CLIP, DOOR WEATHERSTRIP

main67867-12150

91631B0614

main91631-B0614

25 parts on this diagram · 1 diagram in section
