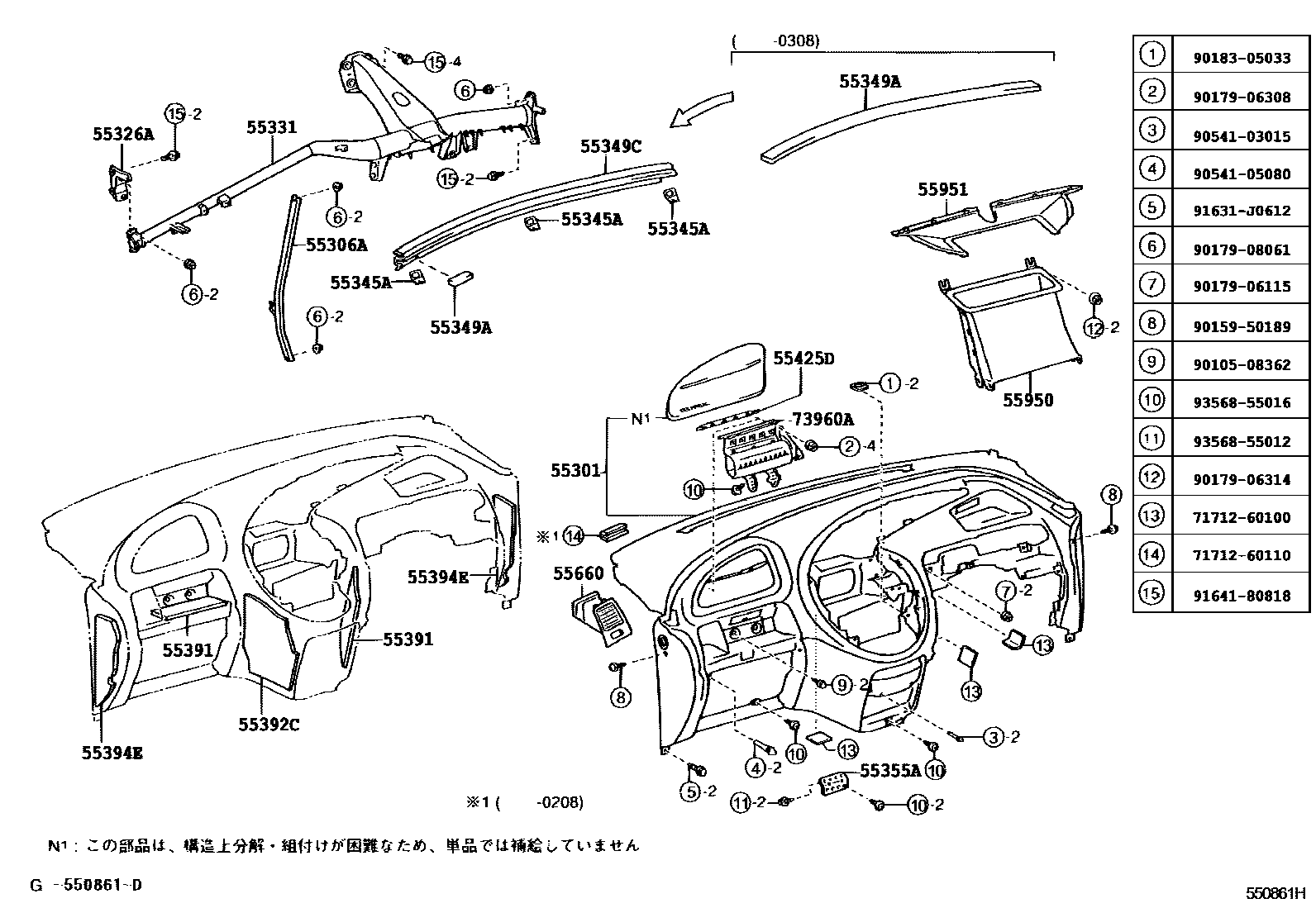

INSTRUMENT PANEL & GLOVE COMPARTMENT

0001 1 0002 1

55301PANEL SUB-ASSY, INSTRUMENT

main55300-28010-B0iAHR10200105-200308

BLUISH GRAY,TRIM13

sub55300-28010

main55300-28010-B1iAHR10200105-200308

DK.CHARCOAL,TRIM14

sub55300-28010

main55300-28010-B2iAHR10200308-200601

DK.GRAY,TRIM1#

sub55300-28010

main55300-28010-E0iAHR10200308-200601

SANDAL WOOD,TRIM0#

sub55300-28010

55306ABRACE SUB-ASSY, INSTRUMENT PANEL, NO.1

main55306-28160iAHR10200105-200308

55326ASTAY, INSTRUMENT PANEL, NO.1

main55326-28090iAHR10200105-200308

55331REINFORCEMENT, INSTRUMENT PANEL

main55330-28130iAHR10200105-200308

main55330-28170iAHR10200308

55345ACLIP, INSTRUMENT PANEL, NO.1

main55345-28030iAHR10200105-200308

55349ACUSHION, INSTRUMENT PANEL

main55349-28120iAHR10200308

main55349-28200iAHR10200105-200308

55349CCUSHION, INSTRUMENT PANEL

main55349-28180iAHR10200308

55355APLATE, INSTRUMENT PANEL

main55355-28050iAHR10200105-200308

55391CUSHION, INSTRUMENT PANEL, LOWER NO.1

main55391-28020iAHR10200105-200208

sub55391-28030

main55391-28030iAHR10200208-200308

55392CCUSHION, INSTRUMENT PANEL, LOWER NO.2

main55392-28020iAHR10200105-200208

sub55392-28030

main55392-28030iAHR10200208-200308

55394ECUSHION, INSTRUMENT PANEL, LOWER NO.4

main55394-28010iAHR10200105-200208

sub55394-28030

main55394-28020iAHR10200105-200208

sub55394-28030

main55394-28030iAHR10200208-200308

55425DBASE, AIRBAG PASSENGER MOUNTING

main55425-28010iAHR10200105-200308

55660REGISTER ASSY, INSTRUMENT PANEL, NO.2

main55660-28100-B0iAHR10200105-200308

BLUISH GRAY,TRIM13

sub55660-28170

main55660-28100-B1iAHR10200105-200308

DK.CHARCOAL,TRIM14

sub55660-28170

main55660-28170-B0iAHR10200308-200601

DK.GRAY,TRIM1#

sub55660-28170

main55660-28170-E0iAHR10200308-200601

SANDAL WOOD,TRIM0#

sub55660-28170

55950NOZZLE ASSY, DEFROSTER

main55950-28140iAHR10200105-200208

sub55950-28160

main55950-28160iAHR10200208-200308

55951NOZZLE, DEFROSTER, FRONT

main55951-28050iAHR10200105-200308

73960AAIRBAG ASSY, INSTRUMENT PANEL PASSENGER W/O DOOR

main73960-28030iAHR10200105-200308

sub73960-28050

main73960-28050iAHR10200308

7171260100LEATHER, FOR SEAT, B RH

main71712-60100

7171260110LEATHER, FOR SEAT, B RH

main71712-60110

9010508362

main90105-08362

9015950189

main90159-50189

9017906115

main90179-06115

9017906308

main90179-06308

9017906314

main90179-06314

9017908061

main90179-08061

9018305033

main90183-05033

9054103015

main90541-03015

9054105080

main90541-05080

91631J0612

main91631-J0612

9164180818

main91641-80818

9356855012

main93568-55012

9356855016

main93568-55016

31 parts on this diagram · 2 diagrams in section
