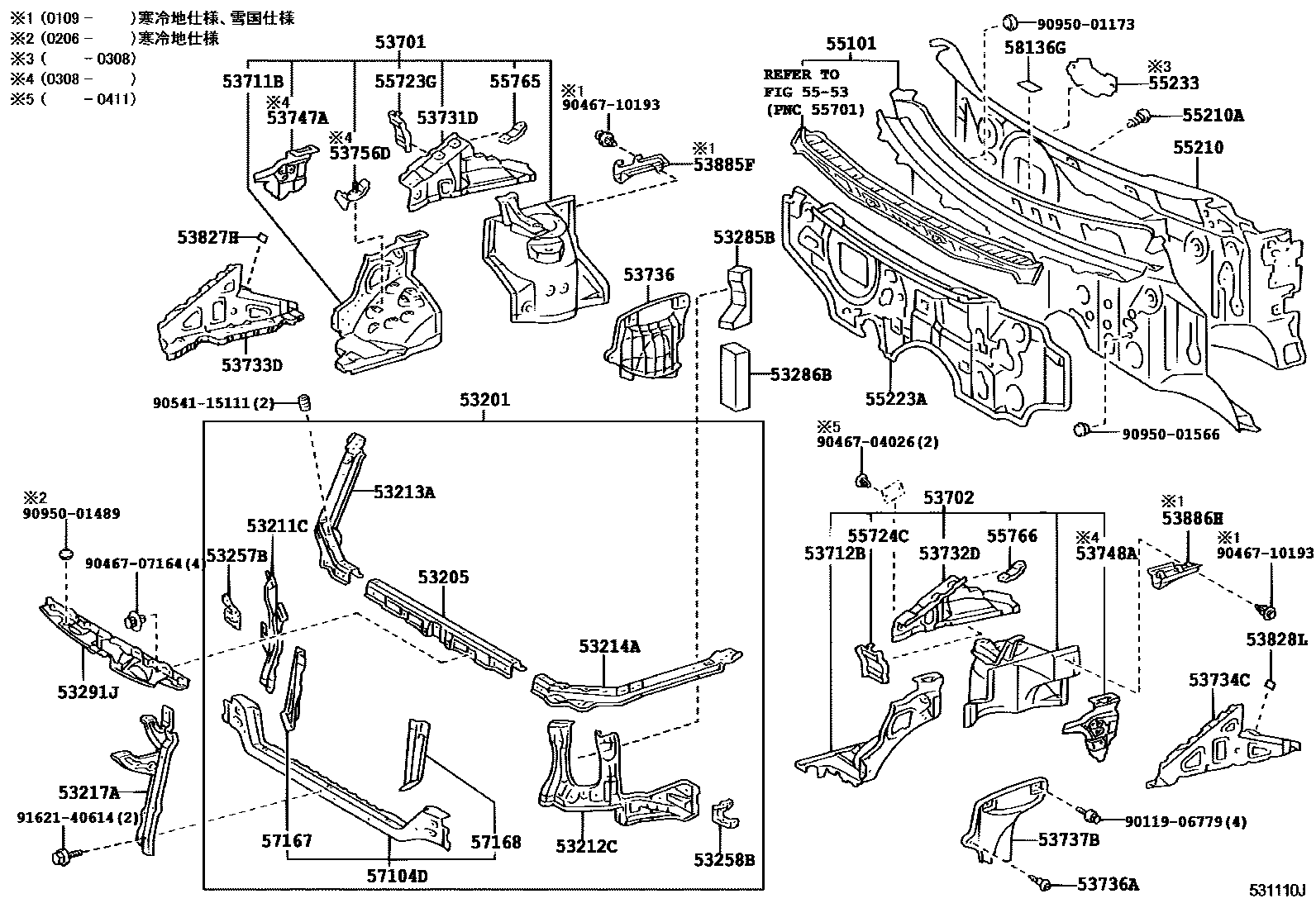

FRONT FENDER APRON & DASH PANEL
53201SUPPORT SUB-ASSY, RADIATOR
53205SUPPORT SUB-ASSY, RADIATOR, UPPER
53211CSUPPORT, RADIATOR, RH
53212CSUPPORT, RADIATOR, LH
53213ASUPPORT, RADIATOR, UPPER RH
53214ASUPPORT, RADIATOR, UPPER LH
53217ABRACE, HOOD LOCK SUPPORT
53257BBRACKET, RADIATOR SUPPORT TO FRONT FENDER
53258BBRACKET, RADIATOR SUPPORT TO FRONT FENDER, LH
53285BSEAL, RADIATOR SIDE AIR, NO.1
53286BSEAL, RADIATOR SIDE AIR, NO.2
53711BAPRON, FRONT FENDER, FRONT RH
53712BAPRON, FRONT FENDER, FRONT LH
53731DMEMBER, FRONT APRON TO COWL SIDE, UPPER RH
53732DMEMBER, FRONT APRON TO COWL SIDE, UPPER LH
53733DMEMBER, FRONT APRON TO COWL SIDE, LOWER FRONT RH
53734CMEMBER, FRONT APRON TO COWL SIDE, LOWER FRONT LH
53736ACLIP(FOR FRONT FENDER APRON SEAL)
53737BSEAL, FRONT FENDER APRON, LH
53747AEXTENSION, APRON FENDER SIDE, RH
53748AEXTENSION, APRON FENDER SIDE, LH
53756DBRACKET, BRAKE ACTUATOR MOUNTING
53827HPROTECTOR, FRONT FENDER SIDE PANEL, RH
53828LPROTECTOR, FRONT FENDER SIDE PANEL
53885FSHIELD, FRONT FENDER SPLASH, REAR RH
53886HSHIELD, FRONT FENDER SPLASH, REAR LH
55101PANEL SUB-ASSY, DASH
55210ACLIP
55223AINSULATOR, DASH PANEL, OUTER
55233SHEET, DASH PANEL INSULATOR
5553
55723GGUSSET, FRONT PANEL, RH
55724CGUSSET, FRONT PANEL, LH
55765BRACKET, HOOD DAMPER MOUNTING
55766BRACKET, HOOD DANPER MOUNTING, LH
57104DMEMBER SUB-ASSY, FRONT CROSS
57167GUSSET, FRONT CROSSMEMBER, UPPER RH
57168GUSSET, FRONT CROSSMEMBER, UPPER LH
58136GCOVER, FRONT FLOOR HOLE
9011906779
main90119-06779
9046704026
main90467-04026
9046707164
main90467-07164
9046710193
main90467-10193
9054115111
main90541-15111
9095001173
main90950-01173
9095001489
main90950-01489
9095001566
main90950-01566
9162140614
main91621-40614
53 parts on this diagram · 1 diagram in section
