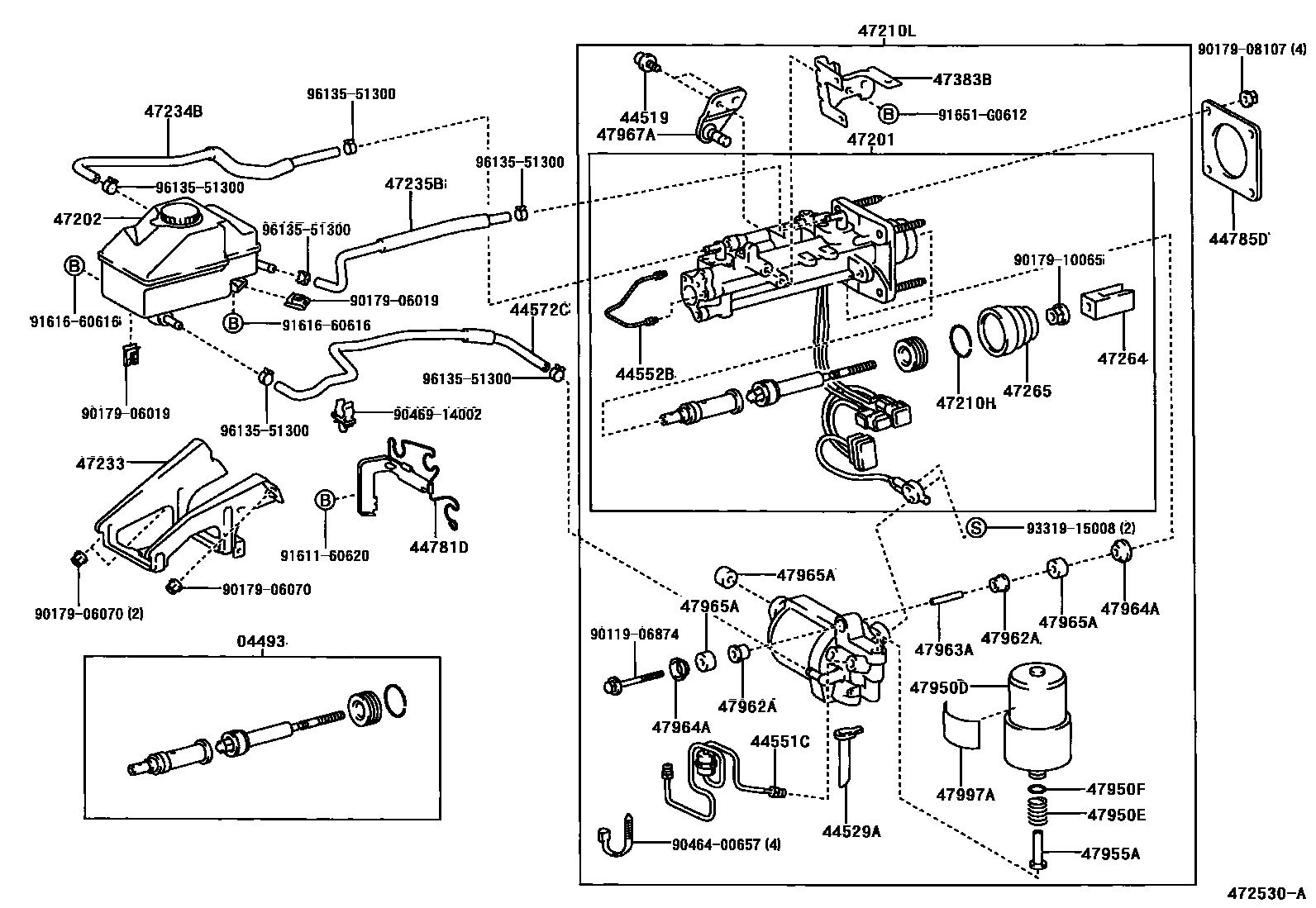

BRAKE MASTER CYLINDER
04493CYLINDER KIT, BRAKE MASTER
44519BOLT, BRAKE ACTUATOR
44529AHOSE, BRAKE ACTUATOR BREATHER
44551CTUBE, BRAKE ACTUATOR, NO.1
44552BTUBE, BRAKE ACTUATOR, NO.2
44781DBRACKET, RESERVOIR HOSE
47202RESERVOIR SUB-ASSY, BRAKE MASTER CYLINDER
47210HRING, SNAP(FOR BRAKE MASTER CYLINDER)
47210LBRAKE BOOSTER ASSY, W/MASTER CYLINDER
47235BTUBE, BRAKE MASTER CYRINDER RESERVOIR, NO.2
47264CLEVIS, MASTER CYLINDER PUSH ROD
47265BOOT, MASTER CYLINDER
47383BBRACKET, CONNECTOR
47950DACCUMULATOR ASSY, BRAKE BOOSTER
47950ESPRING, COMPRESSION(FOR BRAKE BOOSTER ACCUMULATOR)
47950FRING, O(FOR BRAKE BOOSTER ACCUMULATOR)
47955APIPE, BRAKE BOOSTER ACCUMULATOR
47962ACOLLAR, BRAKE BOOSTER PUMP
47963ASHAFT, BRAKE BOOSTER PUMP
47964AWASHER, BRAKE BOOSTER PUMP
47965ABUSH, BRAKE BOOSTER PUMP
47967ABRACKET, BRAKE BOOSTER PUMP, NO.1
47997ALABEL, ACCUMULATOR CAUTION, NO.1
9011906874
main90119-06874
9017906019
main90179-06019
9017906070
main90179-06070
9017908107
main90179-08107
9017910065
main90179-10065
9046400657
main90464-00657
9046914002
main90469-14002
9161160620
main91611-60620
9161660616
main91616-60616
91651G0612
main91651-G0612
9331915008
main93319-15008
9613551300
main96135-51300
40 parts on this diagram · 2 diagrams in section
