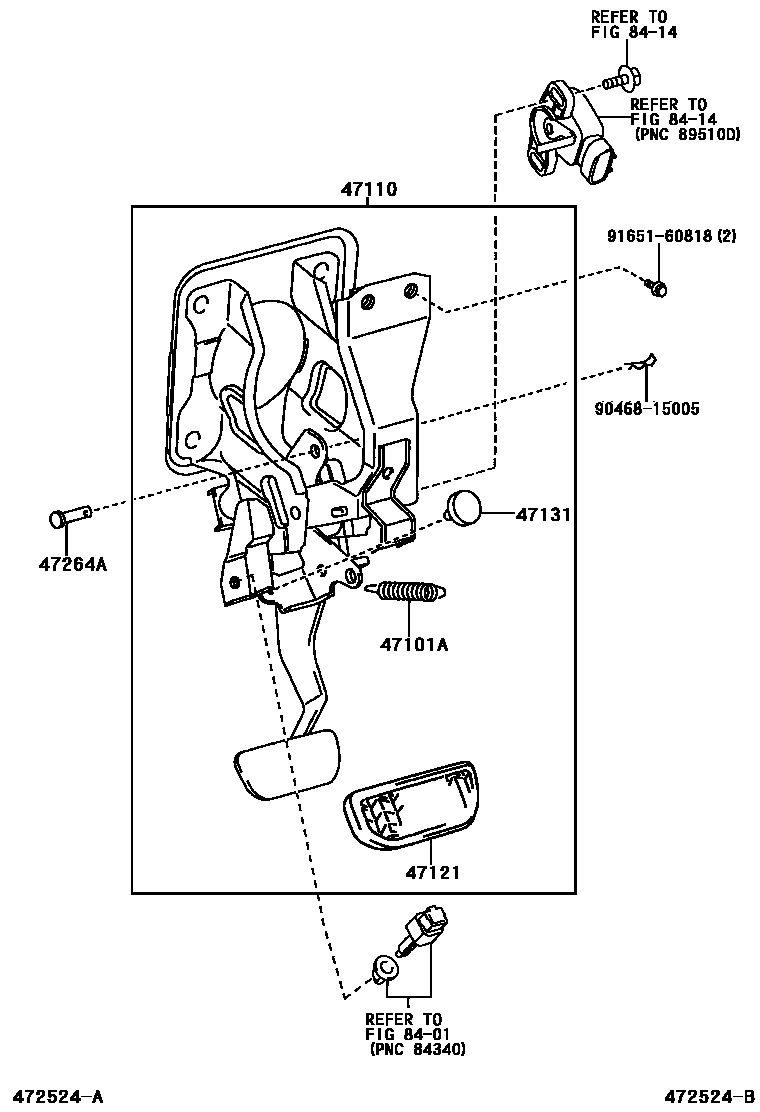

BRAKE PEDAL & BRACKET

47101ASPRING(FOR BRAKE PEDAL RETURN)

main90506-20075iAHR10200105-200308

47110SUPPORT ASSY, BRAKE PEDAL

main47110-28070iAHR10200105-200308

main47110-28100iAHR10200308

47121PAD, BRAKE PEDAL

main47121-52010iAHR10200105-200308

47131CUSHION(FOR STOP LAMP SWITCH)

main90541-06049iAHR10200105-200308

47264APIN(FOR PUSH ROD)

main90240-06023iAHR10200105-200308

8401

8414

9046815005

main90468-15005

9165160818

main91651-60818

9 parts on this diagram · 1 diagram in section
