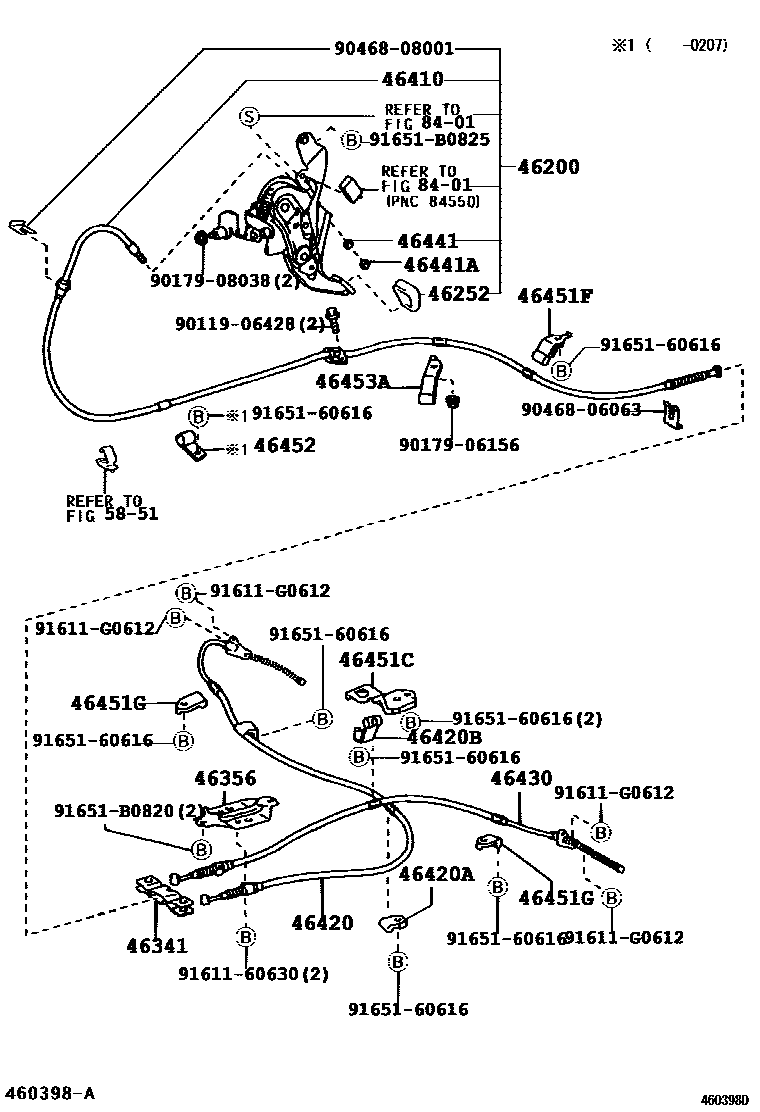

PARKING BRAKE & CABLE

0001 1 0002 1

46200PEDAL ASSY, PARKING BRAKE CONTROL

main46200-28031iAHR10200105-200308

sub46210-28360

sub46410-28220

sub46441-12010

sub90468-08001

46252PAD, PARKING PEDAL

main46252-52010iAHR10200105-200308

46341EQUALIZER, PARKING BRAKE

main46341-12020iAHR10200105-200308

46356BRACKET, EQUALIZER SUPPORT

main46356-28061iAHR10200105-200308

46410CABLE ASSY, PARKING BRAKE, NO.1

main46410-28220iAHR10200105-200308

46420CABLE ASSY, PARKING BRAKE, NO.2

main46420-28440iAHR10200105-200405

sub46420-28441

main46420-28441iAHR10200405-200601

46420ACLAMP, NO.1(FOR PARKING BRAKE CABLE)

main90949-01A77iAHR10200105-200308

46420BCLAMP, NO.2(FOR PARKING BRAKE CABLE)

main90949-01B71iAHR10200105-200308

46430CABLE ASSY, PARKING BRAKE, NO.3

main46430-28390iAHR10200105-200405

sub46430-28391

main46430-28391iAHR10200405-200601

46441NUT, WIRE ADJUSTING, NO.1

main46441-12010iAHR10200105-200308

46441ANUT, WIRE ADJUSTING, NO.2

main90179-06058iAHR10200105-200308

sub90179-06299

main90179-06299iAHR10200308

46451CBRACKET, PARKING BRAKE CABLE SUPPORT, NO.1

main46451-28100iAHR10200105-200308

46451FBRACKET, CABLE SUPPORT

main46451-28130iAHR10200105-200308

46451GBRACKET, CABLE SUPPORT

main46451-28140iAHR10200105-200308

46452BRACKET, PARKING BRAKE CABLE SUPPORT, NO.2

main46451-28110iAHR10200105-200207

46453ABRACKET, CABLE SUPPORT, NO.3

main46451-28120iAHR10200105-200308

5851

8401

9011906428

main90119-06428

9017906156

main90179-06156

9017908038

main90179-08038

9046806063

main90468-06063

9046808001

main90468-08001

9161160630

main91611-60630

91611G0612

main91611-G0612

9165160616

main91651-60616

91651B0820

main91651-B0820

91651B0825

main91651-B0825

28 parts on this diagram · 2 diagrams in section
