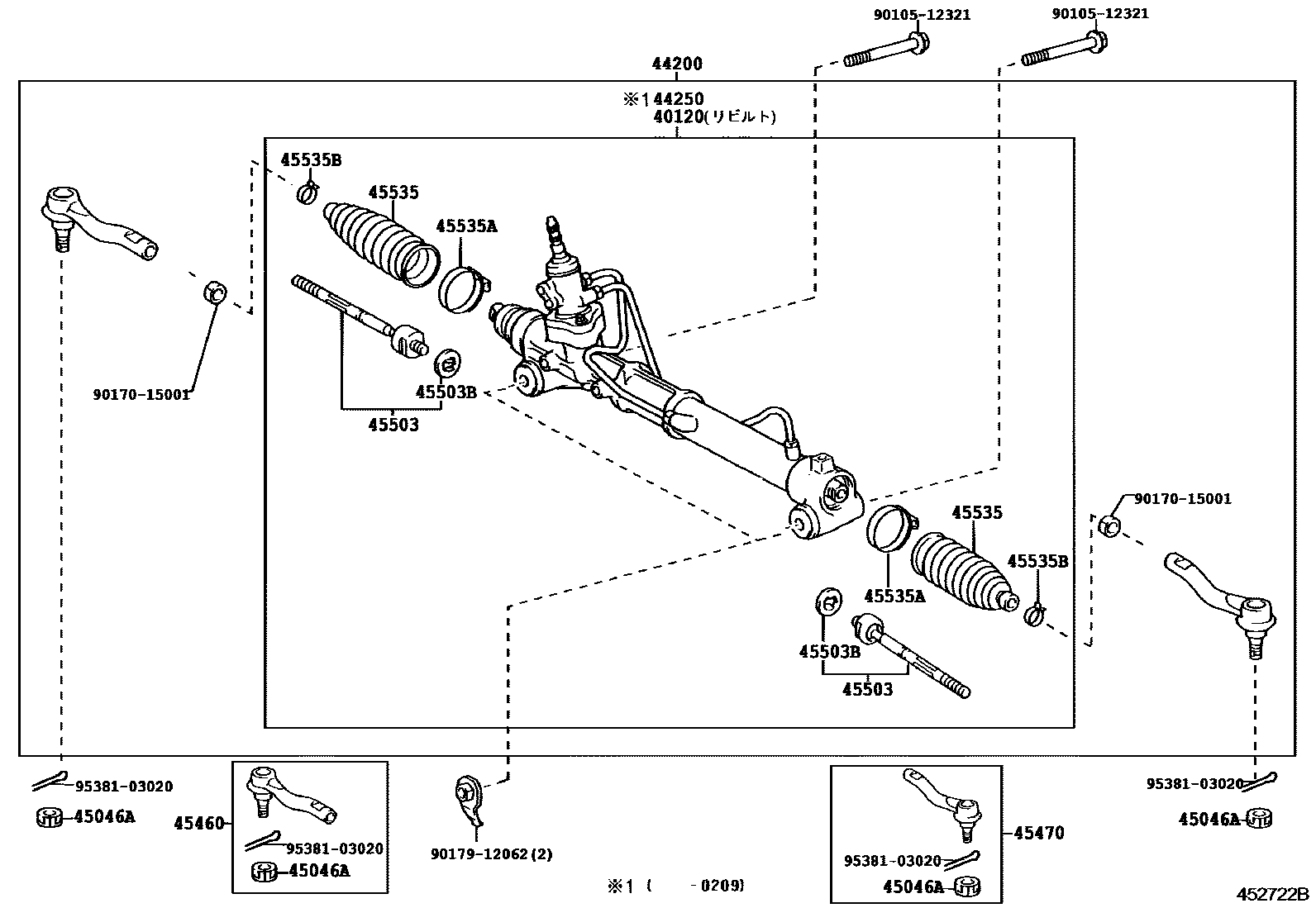

FRONT STEERING GEAR & LINK

0001 1 0002 1 0003 1

40120GEAR ASSY,POWER STEERING,REBUILT

main40120-28470iAHR10200105-200308

sub40120-28471

main40120-58050iAHR10200308-200502

sub40120-58051

main40120-58051iAHR10200502

sub40120-58052

44200LINK ASSY, POWER STEERING

main44200-28470iAHR10200105-200308

sub44200-28471

main44200-58050iAHR10200308-200501

sub44200-58051

main44200-58051iAHR10200502

sub44200-58052

44250GEAR ASSY, POWER STEERING(FOR RACK & PINION)

main44250-28470iAHR10200105-200209

sub44200-28470

45046ANUT, CASTLE(FOR TIE ROD END)

main90171-12028iAHR10200105-200308

45460ROD ASSY, TIE, RH

main45460-29425iAHR10200105-200308

main45460-59055iAHR10200308

sub45460-59115

45470ROD ASSY, TIE, LH

main45470-29185iAHR10200105-200308

main45470-59055iAHR10200308

sub45470-59135

45503END SUB-ASSY, STEERING RACK

main45503-29765iAHR10200105-200308

main45503-59075iAHR10200308

45503BWASHER, CLAW(FOR STEERING RACK END)

main90214-14007iAHR10200105-200308

45535BOOT, STEERING RACK, NO.1

main45535-28030iAHR10200105-200308

45535ACLAMP(FOR STEERING RACK BOOT)

main90460-55016iAHR10200105-200308

45535BCLIP(FOR STEERING RACK BOOT)

main90467-19018iAHR10200105-200204

sub90467-19021

main90467-19021iAHR10200204-200308

9010512321

main90105-12321

9017015001

main90170-15001

9017912062

main90179-12062

9538103020

main95381-03020

15 parts on this diagram · 3 diagrams in section
