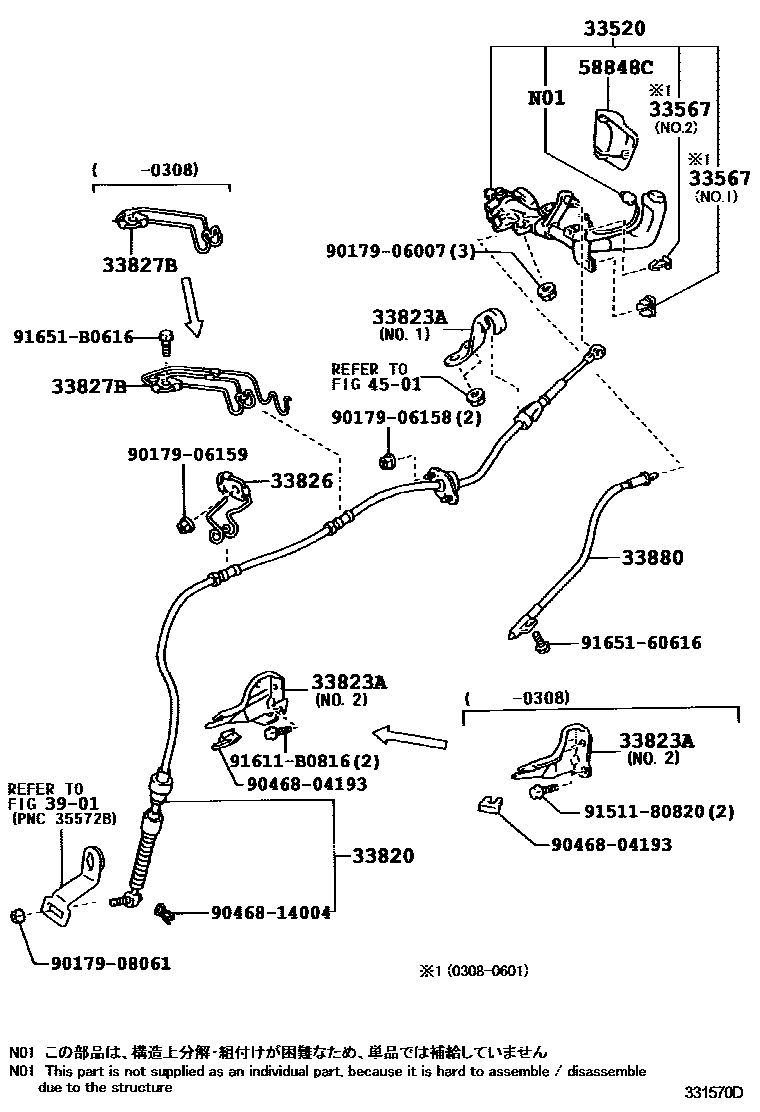

CONTROL SHAFT & CROSSSHAFT

33520SHAFT ASSY, CONTROL

main33520-28220-B0iAHR10200105-200308

BLUISH GRAY,TRIM13

main33520-28220-B1iAHR10200105-200308

DK.CHARCOAL,TRIM14

main33520-28220-B2iAHR10200308-200310

DK.GRAY,TRIM1#

main33520-28221-B2iAHR10200310-200601

DK.GRAY,TRIM1#

main33520-28270-E0iAHR10200308-200310

SANDAL WOOD,TRIM0#

main33520-28271-E0iAHR10200310-200601

SANDAL WOOD,TRIM0#

main33520-28290-E0iAHR10..07S200308-200310

main33520-28291-E0iAHR10..07S200310-200601

33567CLAMP, CONTROL SHAFT TUBE

main33567-28010iAHR10200308-200601

main33567-44010iAHR10200308-200601

33820CABLE ASSY, TRANSMISSION CONTROL (FOR COLUMN SHIFT)

main33820-28390iAHR10200105-200308

main33820-28391iAHR10200308

33823ABRACKET, TRANSMISSION CONTROL CABLE

main33823-28220iAHR10200105-200308

main33823-28250iAHR10200105-200308

main33823-28251iAHR10200308

33826BRACKET, TRANSMISSION CONTROL CABLE, NO.2

main33826-28090iAHR10200105-200308

33827BBRACKET, TRANSMISSION CONTROL CABLE, NO.3

main33827-28010iAHR10200105-200308

main33827-28011iAHR10200308

33880CABLE ASSY, PARKING LOCK (FOR COLUMN SHIFT)

main33880-28070iAHR10200105-200308

3901

4501

58848CCOVER, SHIFT LEVER HOLE

main58848-28050-A0iAHR10200308-200601

IVORY,TRIM0#

main58848-28050-B0iAHR10200105-200308

LT. BLUISH GRAY,TRIM13

main58848-28050-B1iAHR10200105-200308

MD.CHARCOAL,TRIM14

main58848-28050-B2iAHR10200308-200601

MD.GRAY,TRIM1#

9017906007

main90179-06007

9017906158

main90179-06158

9017906159

main90179-06159

9017908061

main90179-08061

9046804193

main90468-04193

9046814004

main90468-14004

9151180820

main91511-80820

91611B0816

main91611-B0816

9165160616

main91651-60616

91651B0616

main91651-B0616

20 parts on this diagram · 1 diagram in section
