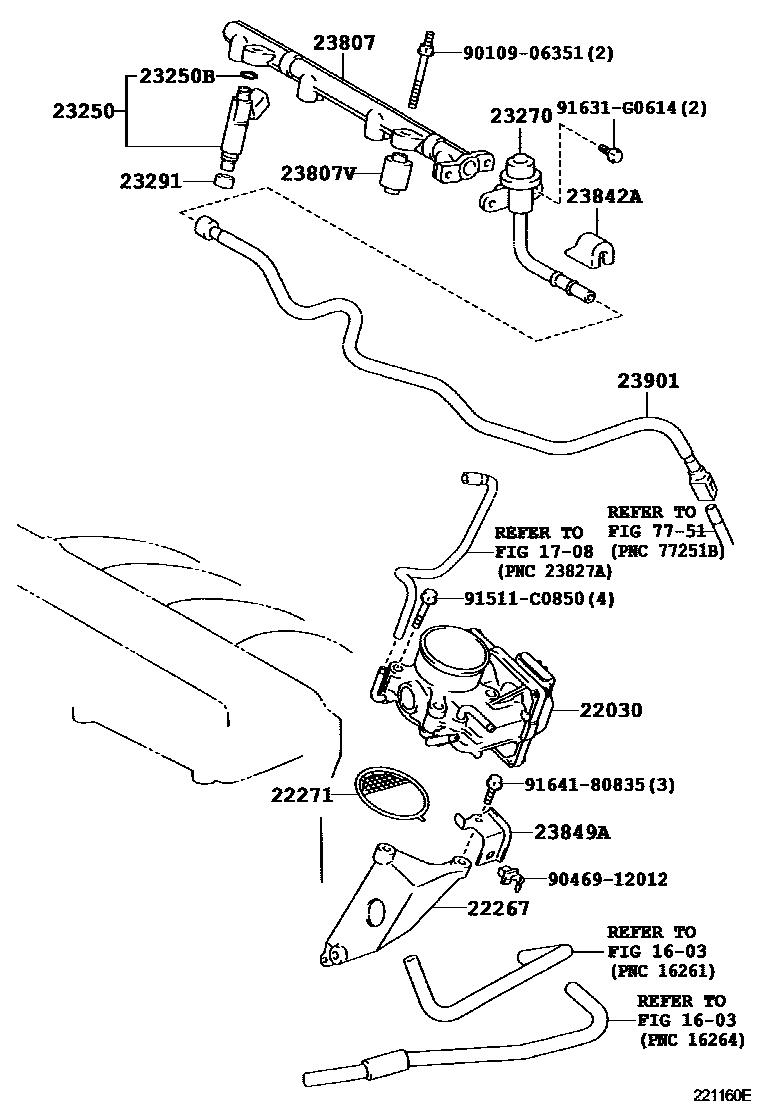

FUEL INJECTION SYSTEM

0001 1 0002 1

1603

1708

22030BODY ASSY, THROTTLE W/THROTTLE POSITION SENSOR

main22030-28030i2AZFXE..AHR10200105-200601

22267BRACKET, THROTTLE BODY

main22267-28030i2AZFXE..AHR10200105-200308

22271GASKET, THROTTLE BODY

main22271-28030i2AZFXE..AHR10200105-200308

23250INJECTOR ASSY, FUEL

main23209-28020i2AZFXE..AHR10200105-200601

23250BRING, O(FOR FUEL INJECTOR)

main90301-07024i2AZFXE..AHR10200105-200308

23270DAMPER ASSY, FUEL PRESSURE PULSATION

main23270-28020i2AZFXE..AHR10200105-200308

sub23270-28021

23291INSULATOR, INJECTOR VIBRATION

main23291-41010i2AZFXE..AHR10200105-200308

23807PIPE SUB-ASSY, FUEL DELIVERY

main23814-28020i2AZFXE..AHR10200105-200308

sub23814-28031

main23814-28031i2AZFXE..AHR10200308

sub23814-28060

23807VSPACER, NO.1(FOR DELIVERY PIPE)

main90561-08053i2AZFXE..AHR10200105-200308

23842ACLAMP, FUEL PIPE, NO.2(FOR EFI)

main23842-22020i2AZFXE..AHR10200105-200308

23849ASUPPORT, FUEL PIPE

main23849-28020i2AZFXE..AHR10200105-200308

23901TUBE SUB-ASSY, FUEL

main23901-28110i2AZFXE..AHR10200105-200308

main23901-28280i2AZFXE..AHR10200308

7751

9010906351

main90109-06351

9046912012

main90469-12012

91511C0850

main91511-C0850

91631G0614

main91631-G0614

9164180835

main91641-80835

20 parts on this diagram · 2 diagrams in section
