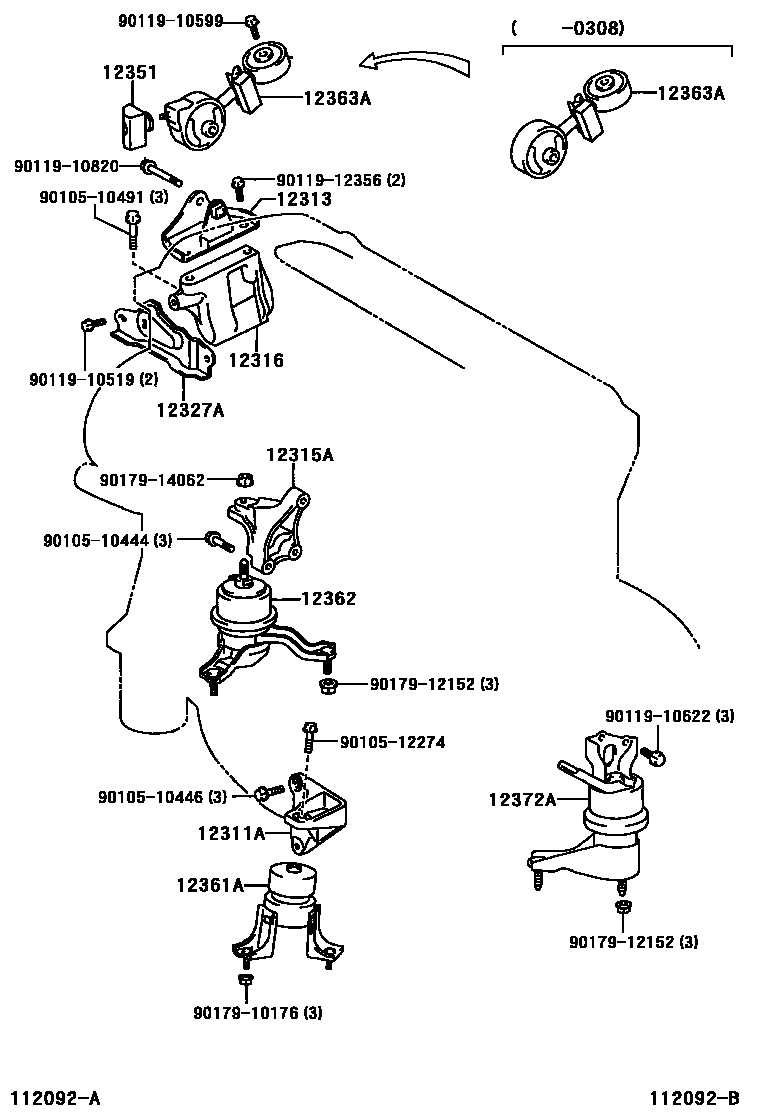

MOUNTING

12311ABRACKET, ENGINE MOUNTING, FRONT(FOR TRANSVERSE ENGINE)

main12311-28080i2AZFXE..AHR10200105-200308

12313BRACKET, ENGINE MOUNTING CONTROL(FOR TRANSVERSE ENGINE)

main12313-28010i2AZFXE..AHR10200105-200308

12315ABRACKET, ENGINE MOUNTING, RH(FOR TRANSVERSE ENGINE)

main12315-28050i2AZFXE..AHR10200105-200308

12316BRACKET, ENGINE MOUNTING, NO.2 RH

main12316-28020i2AZFXE..AHR10200105-200308

12327ASTAY, ENGINE MOUNTING, NO.2 RH

main12327-28010i2AZFXE..AHR10200105-200308

12351DAMPER, ENGINE MOUNTING

main12351-28050i2AZFXE..AHR10200308

12361AINSULATOR, ENGINE MOUNTING, FRONT(FOR TRANSVERSE ENGINE)

main12361-28140i2AZFXE..AHR10200105-200308

12362INSULATOR, ENGINE MOUNTING, RH(FOR TRANSVERSE ENGINE)

main12362-28100i2AZFXE..AHR10200105-200308

12363AROD, ENGINE MOVING CONTROL

main12363-28080i2AZFXE..AHR10200105-200308

main12363-28110i2AZFXE..AHR10200308

12372AINSULATOR, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE)

main12306-28060i2AZFXE..AHR10200105-200308

9010510444

main90105-10444

9010510446

main90105-10446

9010510491

main90105-10491

9010512274

main90105-12274

9011910519

main90119-10519

9011910599

main90119-10599

9011910622

main90119-10622

9011910820

main90119-10820

9011912356

main90119-12356

9017910176

main90179-10176

9017912152

main90179-12152

9017914062

main90179-14062

22 parts on this diagram · 1 diagram in section
