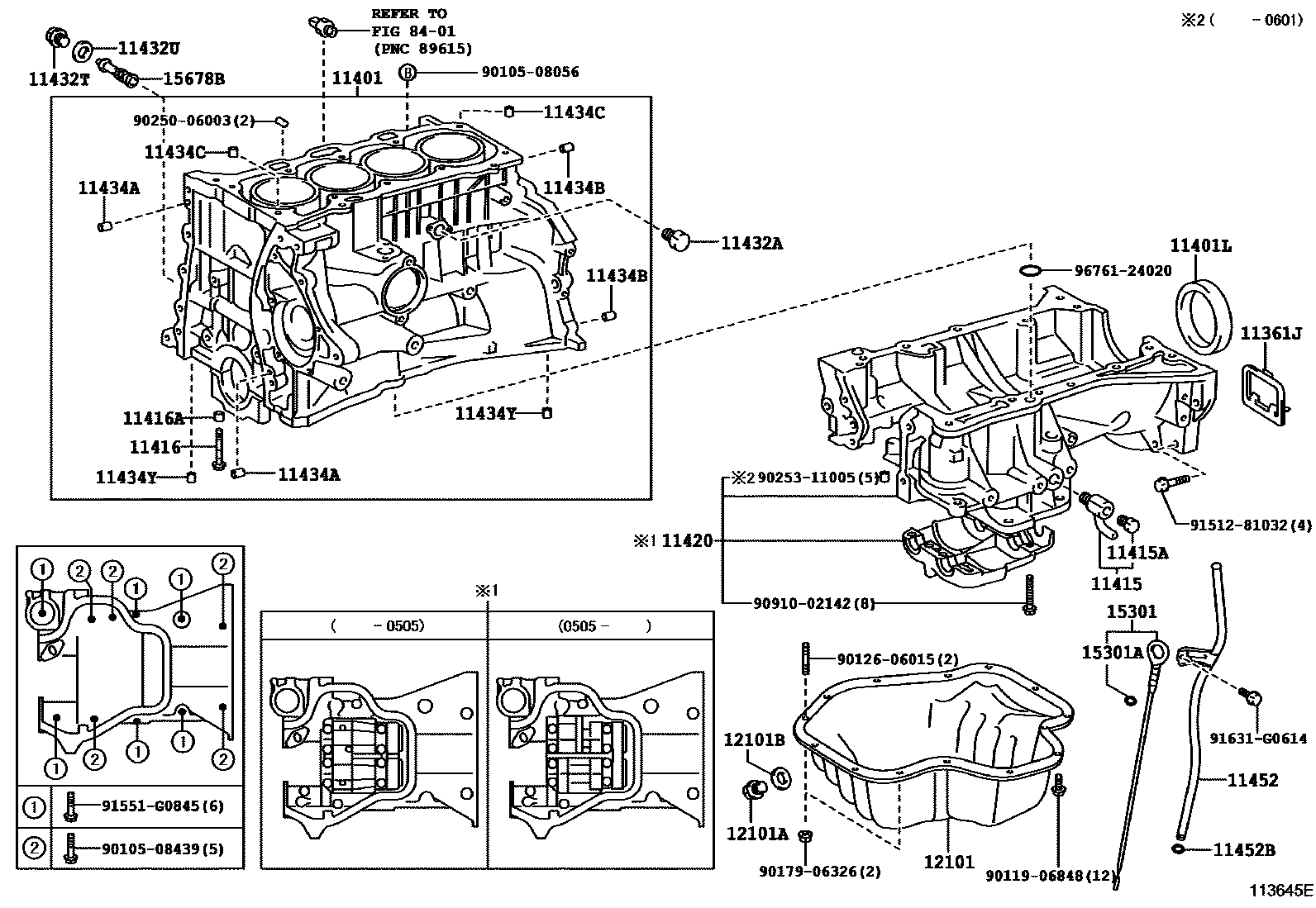

CYLINDER BLOCK
11361JCOVER, FLYWHEEL HOUSING UNDER
11401LSEAL, ENGINE REAR OIL
sub90311-89007
11415COCK SUB-ASSY, WATER DRAIN(FOR CYLINDER BLOCK)
11415APLUG, WATER DRAIN COCK(FOR CYLINDER BLOCK)
11416BOLT(FOR CRANKSHAFT BEARING CAP SET)
sub90910-02206
11416APIN, RING(FOR CRANKSHAFT BEARING CAP SET)
11432APLUG, W/HEAD TAPER SCREW, NO.1
11432TPLUG, W/HEAD STRAIGHT SCREW, NO.3(FOR CYLINDER BLOCK)
11432UGASKET, STRAIGHT SCREW PLUG NO.1(FOR CYLINDER BLOCK)
11434APIN, STRAIGHT(FOR TIMING GEAR COVER SET)
11434BPIN, STRAIGHT(FOR CLUTCH HOUSING SET)
11434CPIN, STRAIGHT (FOR CYLINDER HEAD SET)
11434YPIN, STRAIGHT(FOR OIL PAN)
11452GUIDE, OIL LEVEL GAGE
11452BRING, O(FOR OIL LEVEL GAGE GUIDE)
12101PAN SUB-ASSY, OIL
12101APLUG(FOR OIL PAN DRAIN)
12101BGASKET(FOR OIL PAN DRAIN PLUG)
15301GAGE SUB-ASSY, OIL LEVEL
15301ARING, O(FOR OIL LEVEL GAGE)
15678BFILTER, OIL CONTROL VALVE
8401
9010508056
main90105-08056
9010508439
main90105-08439
9011906848
main90119-06848
9012606015
main90126-06015
9017906326
main90179-06326
9025006003
main90250-06003
9025311005
main90253-11005
9091002142
main90910-02142
9151281032
main91512-81032
91551G0845
main91551-G0845
91631G0614
main91631-G0614
9676124020
main96761-24020
36 parts on this diagram · 1 diagram in section
