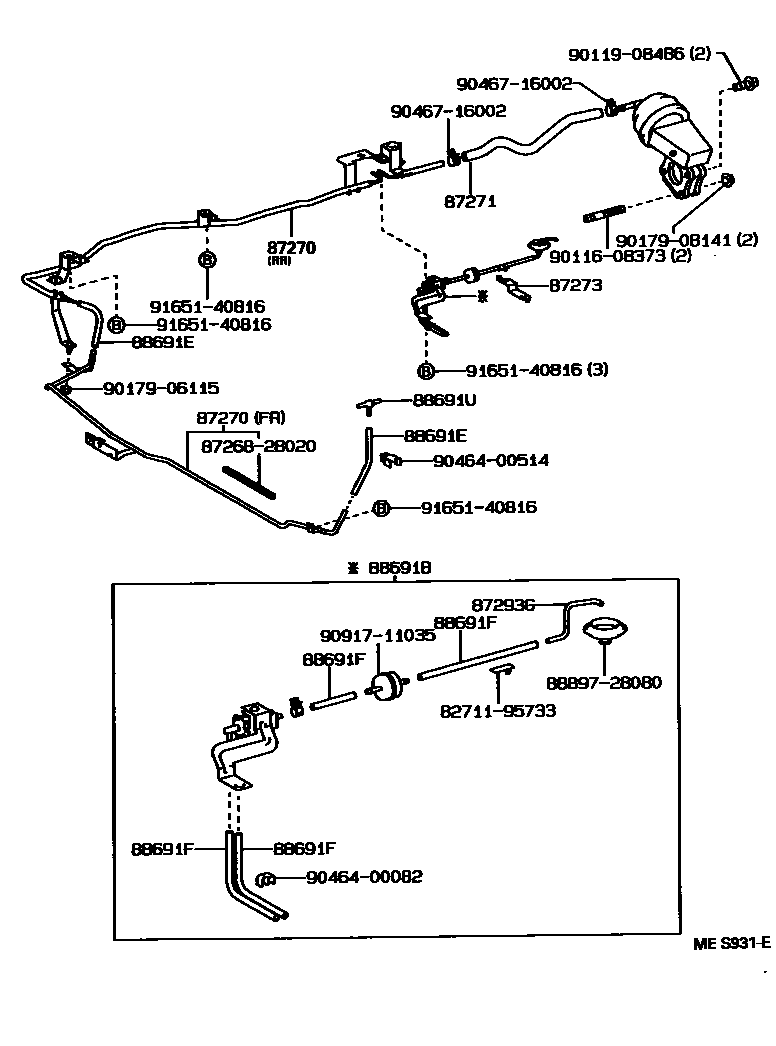

HEATING & AIR CONDITIONING - VACUUM PIPING

0001 1HEATER IDLE UP 0002 1HEATER IDLE UP 0003 1COOLER IDLE UP 0004 1COOLER IDLE UP

87270PIPE ASSY, VACUUM

main87270-28010iCXR1#,2#199201-199501

main87270-28020iCXR1#,2#199201-199608

main87270-28030iCXR1#,2#199501-199608

main87270-28040iCXR1#,2#199608-199908

main87270-28050iCXR1#,2#199608-199908

87271HOSE, HEATER VACUUM

main87271-28010iCXR1#,2#..AERAS,D,F,G,GLUX,X,XLUX199201-199908

87273BRACKET, HEATER VACUUM TUBE

main87273-28070iCXR1#,2#199308-199501

main87273-28080iCXR1#,2#..AERAS,G,GLUX,X,XLUX199501-199908

87293GCONNECTOR, VACUUM

main87293-28020iCXR1#,2#199201-199501

88691VALVE, MAGNET (FOR IDLE UP DEVICE)

main88691-90K02iCXR1#,2#199201-199308

88691BVALVE, MAGNET (FOR WATER VALVE)

main88690-28130iCXR1#,2#199201-199501

sub90950-01833

main88690-28440iCXR10,20..ELU199801-199908

88691EHOSE, VACUUM (FOR IDLE UP DIVICE), NO.3

main90999-92002iCXR1#,2#199201-199308

88691FHOSE, VACUUM (FOR IDLE UP DIVICE), NO.4

main90999-92002iCXR1#,2#199308-199501

88691UWAY(FOR VACUUM HOSE)

main90413-04001iCXR1#,2#199201-199308

8271195733WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-95733

8726828020COCK, WATER HOSE DRAIN(FOR REAR HEATER)

main87268-28020

8889728080VALVE, COOLER MAGNET

main88897-28080

9011608373

main90116-08373

9011908486

main90119-08486

9017906115

main90179-06115

9017908141

main90179-08141

9046400082

main90464-00082

9046400514

main90464-00514

9046716002

main90467-16002

9091711035

main90917-11035

9165140816

main91651-40816

21 parts on this diagram · 4 diagrams in section
