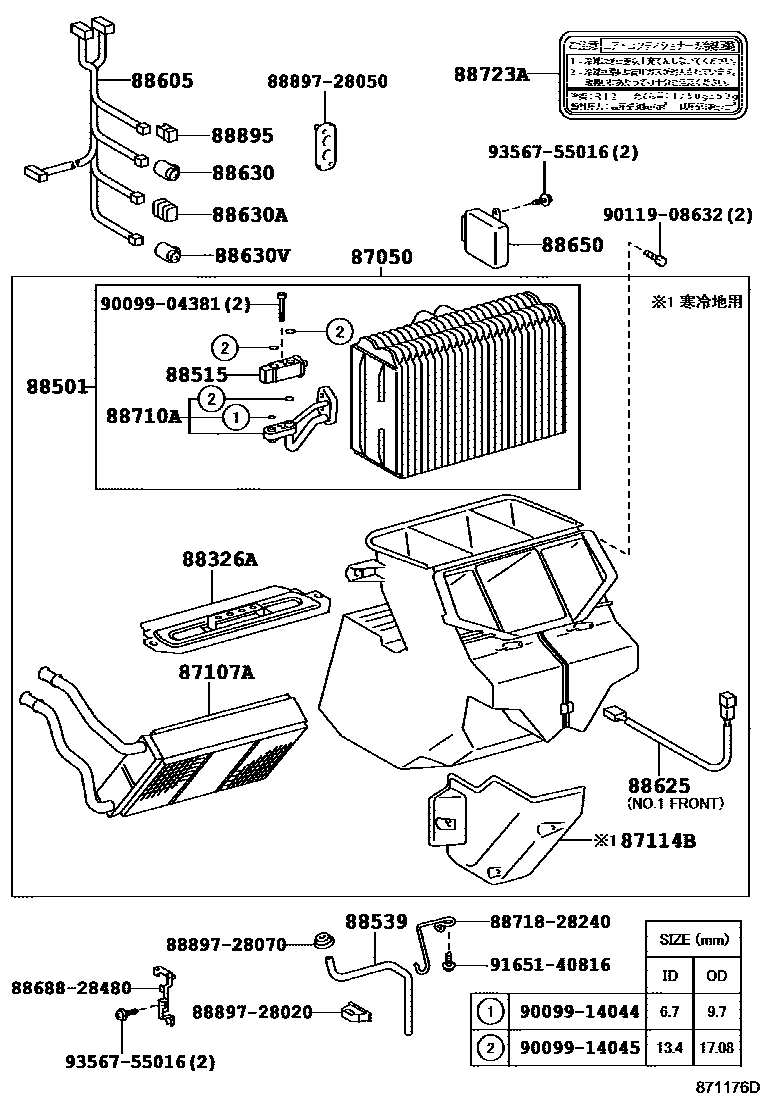

HEATING & AIR CONDITIONING - COOLER UNIT

0001 1���� ���� 0002 1���� ���� 0003 1���� ���� 0004 1���� ����,�-����� ��������� 0005 1���� ����,�-����� ��������� 0006 1���� ����,�-����� ��������� 0007 1�� ���� 0008 1�� ���� 0009 1�� ���� 0010 1�������� 0011 1��������

87050RADIATOR ASSY, AIR CONDITIONER

main87050-28010iCXR10,20,TCR1#,2#..D,F,S,X199201-199308

main87050-28020iCXR10,20,TCR1#,2#..D,F,S,X199201-199308

sub87050-28010

main87050-28030iCXR11,21,TCR11,21..G199201-199308

main87050-28040iCXR11,21,TCR11,21..G199201-199308

sub87050-28030

main87050-28120iCXR10,20..AERAS,X199801-199908

main87050-28130iCXR10,20,TCR10,20..AERAS,F,X199308-199710

sub87050-28140

main87050-28140iTCR10,20..AERAS,X199308-199710

main87050-28140iTCR10,20..AERAS,X199308-199710

main87050-28150iCXR1#,2#,TCR1#,2#..ELU,G,GLUX,XLUX199308-199912

sub87050-28160

main87050-28150iCXR10,20,TCR10,20..X199308-199501

*AAC

sub87050-28160

main87050-28160iCXR1#,2#,TCR1#,2#..ELU,G,GLUX,XLUX199308-199912

main87050-28160iCXR10,20,TCR10,20..X199308-199501

main87050-28190iTCR10..XLUX;CXR1#,2#..ELU,G,XLUX199801-199912

main87050-28220iCXR10,20,TCR10,20..AERAS,X199710-199912

sub87050-28230

main87050-28230iCXR10,20,TCR10,20..AERAS,X199710-199912

87107AUNIT SUB-ASSY, HEATER RADIATOR

main87107-28060iCXR1#,2#,TCR1#,2#199201-199912

main87107-28070iCXR1#,2#,TCR1#,2#199201-199912

sub87107-28060

87114BCOVER, HEATER

main87114-28020iCXR1#,2#,TCR1#,2#199308-199912

main87114-28020iCXR1#,2#,TCR1#,2#199504-199608

main87114-28030iCXR1#,2#,TCR1#,2#199504-199608

main87114-95D01iCXR11,21,TCR11,21..G199201-199302

main87114-95D05iCXR1#,2#,TCR1#,2#199201-199308

88326APLATE, COVER

main88326-28020iCXR1#,2#,TCR1#,2#199201-199308

main88326-28040iCXR1#,2#,TCR1#,2#199308-199912

88501EVAPORATOR SUB-ASSY, COOLER, NO.1

main88501-28040iCXR1#,2#,TCR1#,2#199201-199308

main88501-28110iCXR1#,2#,TCR1#,2#199308-199912

sub88511-28041

sub88515-22240

sub88710-28870

sub90099-04381

88515VALVE, COOLER EXPANSION

main88515-14062iCXR1#,2#,TCR1#,2#199201-199303

sub88515-33010

main88515-20100iCXR1#,2#,TCR1#,2#199308-199912

sub88515-22240

main88515-33010iCXR1#,2#,TCR1#,2#199303-199308

88539HOSE, COOLER UNIT DRAIN, NO.1

main88539-28040iCXR1#,2#,TCR1#,2#199201-199912

88605HARNESS SUB-ASSY, COOLER WIRING, NO.1

main88605-28420iCXR10,20,TCR1#,2#..AERAS,D,F,S,X199201-199801

main88605-28430iCXR1#,2#,TCR1#,2#..G,GLUX,XLUX199201-199912

main88605-28430iCXR10,20,TCR10,20..X199308-199501

*AAC

main88605-28840iCXR10,20,TCR10..D,F199201-199501

main88605-2R370iCXR10,20,TCR10,20..AERAS,X199801-199912

main88605-2R380iCXR1#,2#,TCR1#,2#..ELU,G,XLUX199801-199912

main88605-2R390iCXR10,20..AERAS,X199801-199908

main88605-2R400iCXR11,21199801-199908

main88605-2R420iCXR1#,2#..ELU,G,XLUX199801-199908

88625THERMISTOR, COOLER, NO.1

main88625-12280iCXR1#,2#,TCR1#,2#199501-199912

main88625-16210iCXR10,20,TCR10,20..AERAS,X199710-199912

main88625-28190iCXR10,20..AERAS,X199801-199908

main88625-60050iCXR10,20,TCR1#,2#..AERAS,D,F,S,X199201-199710

main88625-60060iCXR1#,2#,TCR1#,2#..G,X199201-199912

88630RELAY ASSY, COOLER

main88630-14030iCXR10,20,TCR1#,2#..AERAS,D,F,S,X199201-199912

main88630-95701iCXR10,20,TCR10..D,F199201-199501

88630ARELAY ASSY, COOLER

main88630-16090iCXR10,20,TCR1#,2#..AERAS,D,F,S,X199201-199912

88630VRELAY ASSY

main88630-28040iCXR1#,2#,TCR1#,2#..ELU,G,GLUX,XLUX199201-199912

88650AMPLIFIER ASSY, COOLER STABILIZER

main88650-28130iCXR1#,2#199201-199308

main88650-28140iTCR1#,2#199201-199308

main88650-28270iCXR1#,2#199308-199501

main88650-28370iTCR1#,2#199308-199501

main88650-28470iTCR1#,2#199501-199608

main88650-28480iCXR10,20..AERAS,X199501-199908

main88650-28640iTCR1#,2#199608-199912

88710ATUBE ASSY, AIR CONDITIONER

main88710-28630iCXR10,20..D,F199201-199303

DEALER OPT

sub88710-28730

main88710-28730iCXR1#,2#,TCR1#,2#199201-199308

main88710-28870iCXR1#,2#,TCR1#,2#199308-199912

88723ALABEL, COOLER SERVICE CAUTION

main88723-20030iCXR1#,2#,TCR1#,2#199308-199912

R134A

sub88733-30040

main88723-28140iCXR1#,2#,TCR1#,2#199201-199308

R12

88895HOLDER, FUSE

main88895-28040iCXR1#,2#,TCR1#,2#..ELU,G,XLUX199201-199912

main88895-28080iCXR10,20..AERAS,X199801-199908

main88895-28090iCXR10,20,TCR10,20..AERAS,X199801-199912

8868828480BRACKET, COOLER DIAPHRAGM

main88688-28480

8871828240PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-28240

8889728020VALVE, COOLER MAGNET

main88897-28020

8889728050VALVE, COOLER MAGNET

main88897-28050

8889728070VALVE, COOLER MAGNET

main88897-28070

9009904381

main90099-04381

9009914044

main90099-14044

9009914045

main90099-14045

9011908632

main90119-08632

9165140816

main91651-40816

9356755016

main93567-55016

27 parts on this diagram · 11 diagrams in section
