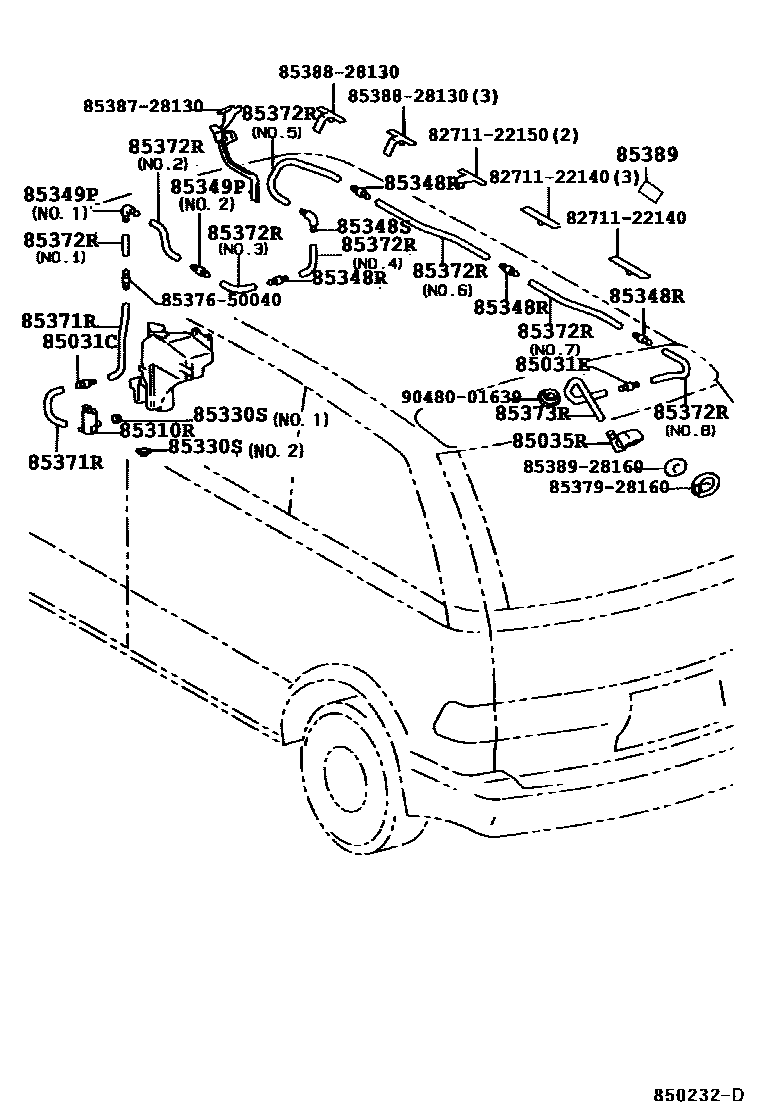

REAR WASHER

0001 1 0002 1 0003 1 0004 1

85031CVALVE SUB-ASSY, WASHER

main85031-12250iCXR10,20..F..TDEFI;CXR1#,2#,TCR1#,2#..AERAS,ELU,G,GLUX,S,X,XLUX199201-199912

85031EVALVE SUB-ASSY REAR WASHER, NO.2

main85031-12250iCXR1#,20,TCR10,20..ELU,G199201-199912

85035RNOZZLE SUB-ASSY, REAR WASHER

main85035-95D01iCXR1#,2#,TCR1#,2#199201-199912

85330SBUSH, REAR WASHER JAR

main85336-28030iCXR1#,2#..AERAS,ELU,F,G,GLUX,X,XLUX199201-199908

main85336-95D00iTCR1#,2#199308-199912

main90099-32089iCXR1#,2#199201-199912

85348RJOINT, REAR WASHER HOSE, NO.1

main85349-89122iCXR1#,2#,TCR1#,2#..ATM..(AERAS,G,X,XLUX)199308-199912

main85349-89122iCXR1#,2#,TCR1#,2#199201-199308

main85349-89122iCXR1#,2#,TCR1#,2#..ATM199810-199912

85348SJOINT, REAR WASHER ELBOW, NO.1

main85355-20200iTCR10,20;CXR10,20,TCR11,21..D,G,S199201-199308

main85355-20200iCXR10,20,TCR10,20..ELU199801-199912

85349PJOINT, REAR WASHER ELBOW, NO.3

main85355-20200iTCR1#,2#199308-199912

main85355-20200iCXR1#,2#199308-199908

main85375-33040iTCR1#,2#199308-199912

85371RHOSE, REAR WASHER (FROM MOTOR TO JOINT)

main90099-33080iTCR1#,2#199201-199308

main90099-33080iTCR1#,2#199201-199308

main90099-33080iCXR1#,20..ELU,G199801-199908

main90099-33080iCXR10,2#..AERAS,G,X,XLUX199801-199908

main90099-33080iTCR1#,2#199308-199912

main90099-33080iCXR1#,2#199308-199801

main90446-07001iTCR1#,2#199201-199308

85372RHOSE, REAR WASHER (FROM JOINT TO JOINT OR NOZZLE)

main90099-33080iCXR1#,20,TCR10,20..ELU,G199801-199912

main90099-33080iCXR1#,2#,TCR1#,2#199306-199308

main90099-33080iCXR1#,2#,TCR1#,2#199201-199912

main90099-33080iTCR1#,2#..F,G,S,X199201-199912

main90099-33080iCXR11,21,TCR11,21199501-199608

main90099-33080iTCR1#,2#199308-199801

main90099-33080iTCR1#,2#199308-199908

main90099-33080iCXR1#,2#,TCR1#,2#199608-199908

main90099-33080iCXR1#,2#199201-199908

main90099-33080iCXR1#,2#199201-199308

main90099-33080iCXR10,20,TCR10,20..ELU199801-199912

main90099-33299iCXR1#,20,TCR10,20..ELU,G199608-199912

main90099-33299iCXR1#,2#,TCR1#,2#199201-199306

main90099-33299iCXR1#,2#,TCR1#,2#..G,S,X199201-199308

main90099-33299iCXR1#,2#,TCR1#,2#199201-199912

main90099-33299iCXR1#,2#,TCR1#,2#199201-199801

main90099-33299iCXR1#,2#,TCR1#,2#..AERAS,F,G,GLUX,X,XLUX199308-199912

main90099-33589iCXR1#,2#,TCR1#,2#199201-199306

main90099-33723iCXR1#,2#,TCR1#,2#199308-199603

sub90099-33080

main90099-59097iCXR1#,2#,TCR1#,2#199306-199509

sub90099-59116

main90099-59109iCXR10,20,TCR10,20..ELU199603-199912

main90099-59116iCXR1#,2#,TCR1#,2#199608-199912

main90099-59170iCXR10,20,TCR10,20..ELU199509-199912

sub90099-33589

main90446-07001iCXR10,20..D199201-199308

main90446-07001iCXR1#,2#,TCR1#,2#199201-199308

85373RHOSE, REAR WASHER (FROM JOINT TO NOZZLE)

main90099-33080iCXR1#,2#,TCR1#,2#199202-199308

main90099-33299iCXR1#,2#,TCR1#,2#199201-199912

85389PACKING, WINDSHIELD WASHER HOSE, NO.1

main85389-28130iCXR11,21,TCR11,21199306-199912

8271122140WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-22140

8271122150WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-22150

8537650040PROTECTOR, HEADLAMP CLEANER HOSE, NO.1

main85376-50040

8537928160JOINT

main85379-28160

8538728130CLAMP NO.1 (FOR WINDSEIELD WASHER)

main85387-28130

8538828130CLAMP NO.2 (FOR WINDSEIELD WASHER)

main85388-28130

8538928160PACKING, WINDSHIELD WASHER HOSE, NO.1

main85389-28160

9048001639

main90480-01639

19 parts on this diagram · 4 diagrams in section
