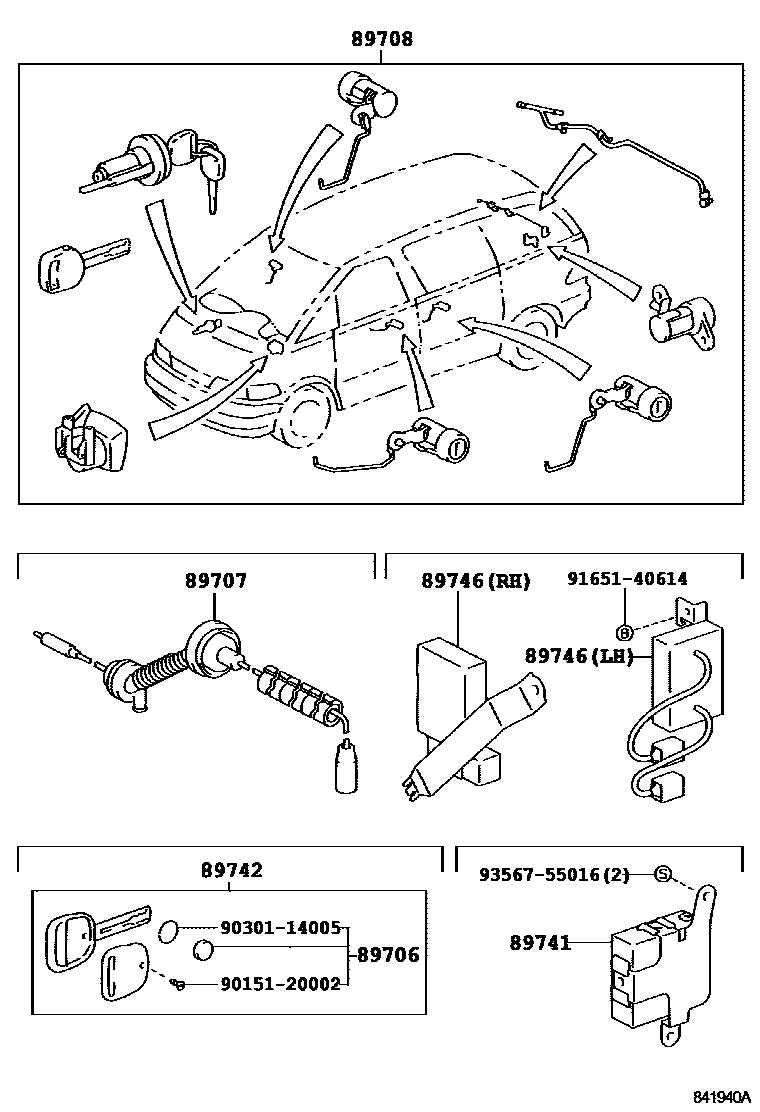

WIRELESS DOOR LOCK

89706BATTERY SET, TRANSMITTER

main89706-50010iCXR10,20,TCR10,20..ELU199801-199912

sub89745-48020

sub90151-20002

sub90301-14005

89707CORD SUB-ASSY, WIRELESS DOOR LOCK

main89707-28040iCXR10,20,TCR10,20..ELU199801-199810

89708CYLINDER SET, WIRELESS DOOR LOCK

main89708-28060iCXR10,20,TCR10,20..ELU199801-199810

main89708-28070iCXR10,20,TCR10,20..ELU199810-199912

89741RECEIVER, DOOR CONTROL

main89741-28060iCXR10,20,TCR10,20..ELU199801-199810

main89741-28100iCXR10,20,TCR10,20..ELU199810-199912

89742TRANSMITTER, DOOR CONTROL

main89742-28090iCXR10,20,TCR10,20..ELU199801-199810

main89742-28110iCXR10,20,TCR10,20..ELU199810-199912

89746FILTER, WIRELESS DOOR LOCK

main89746-28010iCXR10,20,TCR10,20..ELU199801-199810

main89746-28020iCXR10,20,TCR10,20..ELU199801-199810

9015120002

main90151-20002

9030114005

main90301-14005

9165140614

main91651-40614

9356755016

main93567-55016

10 parts on this diagram · 1 diagram in section
