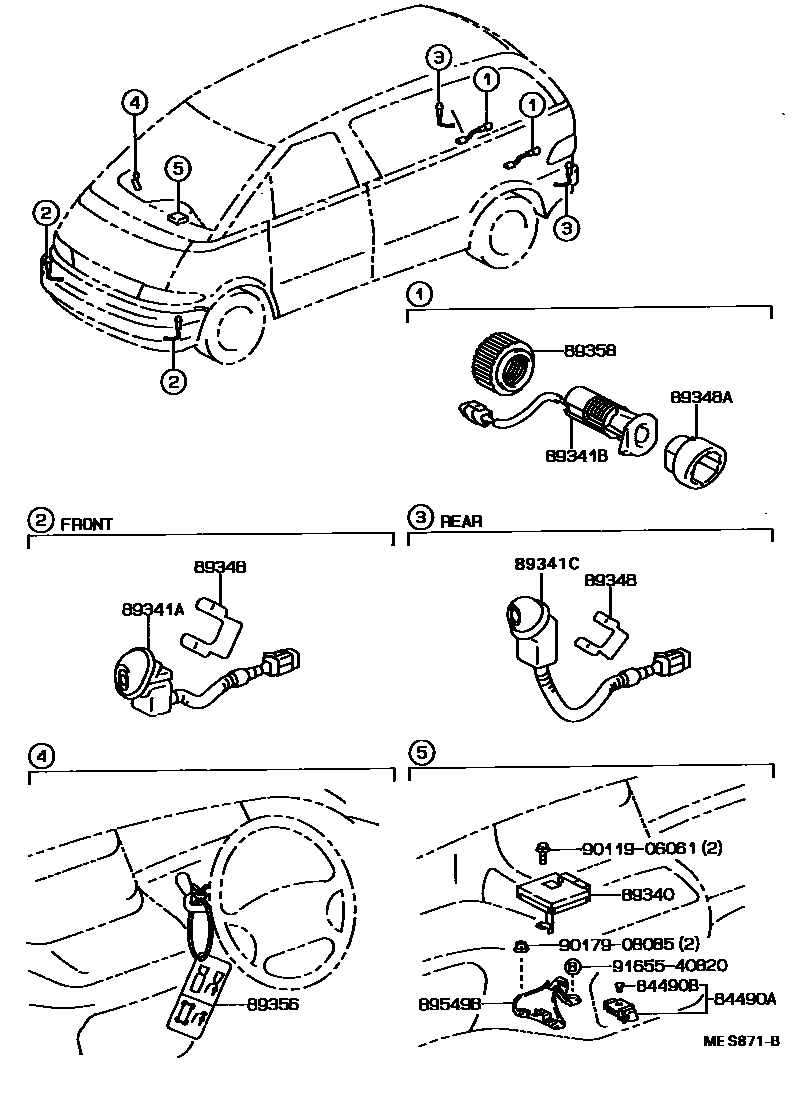

CLEARANCE & BACK SONAR

0001 1 0002 1

84490ASWITCH ASSY, BACK SONAR OR CLEARANCE SONAR

main84490-28010iCXR10,20,TCR1#,2#..AERAS,D,F,S,X199201-199912

84490BBULB(FOR BACK SONAR SWITCH)

main84999-10320iCXR10,20,TCR1#,2#..AERAS,D,F,S,X199201-199912

89340COMPUTER ASSY, REAR CLEARANCE WARNING

main89340-28020iCXR1#,2#,TCR1#,2#199201-199308

main89340-28060iCXR1#,2#,TCR1#,2#199308-199501

main89340-28060iCXR1#,2#,TCR1#,2#199501-199608

main89340-28090iCXR1#,2#,TCR1#,2#199608-199912

89341ASENSOR, ULTRASONIC, NO.1

main89341-28020-A0iCXR10,20,TCR10,20199201-199308

LUCIDA,WHITE,041

sub89341-28120

main89341-28020-B1iCXR11,21,TCR11,21199201-199308

LUCIDA,WARM GRAY OPAL,041

sub89341-28120

main89341-28020-B1iCXR10,20,TCR10,20..X199201-199308

LUCIDA,WARM GRAY OPAL,193

sub89341-28120

main89341-28020-B1iCXR10,20,TCR10,20..X199201-199308

LUCIDA,WARM GRAY OPAL,041 ,193

sub89341-28120

main89341-28020-D0iCXR1#,2#,TCR1#,2#..G,S,X199201-199308

LUCIDA,DEEP RED MICA,193 ,3H8

sub89341-28120

main89341-28020-D0iCXR10,20,TCR10..F199201-199308

LUCIDA,DEEP RED MICA,3H8

sub89341-28120

main89341-28020-E0iCXR1#,2#,TCR1#,2#..G,S,X199201-199308

LUCIDA,GRAY M.,193 ,3H8

sub89341-28120

main89341-28020-F0iCXR1#,2#,TCR1#,2#..G,S,X199201-199308

LUCIDA,PALE YELLOW PEARE MI,573

sub89341-28120

main89341-28020-H0iCXR1#,2#,TCR1#,2#..G,S,X199201-199308

LUCIDA,LIGHT TURQUOISE M.M.,750

sub89341-28120

main89341-28020-J0iCXR1#,2#,TCR1#,2#..F,G,S,X199201-199308

BLUEISE GRAY M.,8H5

sub89341-28120

main89341-28030-A0iCXR10,20,TCR10,20199201-199308

sub89341-28130

main89341-28030-B0iCXR1#,2#,TCR1#,2#..G,S,X199201-199308

sub89341-28130

main89341-28030-D0iCXR1#,2#,TCR1#,2#..F,G,S,X199201-199308

sub89341-28130

main89341-28030-F0iCXR1#,2#,TCR1#,2#..G,S,X199201-199308

sub89341-28130

main89341-28030-H0iCXR1#,2#,TCR1#,2#..G,S,X199201-199308

sub89341-28130

main89341-28030-J0iCXR1#,2#,TCR1#,2#..F,G,S,X199201-199308

sub89341-28130

main89341-28090-A0iCXR10,20,TCR10,20199201-199308

sub89341-28140

main89341-28090-B0iCXR1#,2#,TCR1#,2#..G,S,X199201-199308

sub89341-28140

main89341-28090-D0iCXR1#,2#,TCR1#,2#..F,G,S,X199201-199308

sub89341-28140

main89341-28090-F0iCXR1#,2#,TCR1#,2#..G,S,X199201-199308

sub89341-28140

main89341-28090-H0iCXR1#,2#,TCR1#,2#..G,S,X199201-199308

sub89341-28140

main89341-28090-J0iCXR1#,2#,TCR1#,2#..F,G,S,X199201-199308

sub89341-28140

main89341-28120-A3iCXR10,20,TCR10,20199308-199501

LUCIDA,WHITE/GRAY,041

main89341-28120-D1iCXR1#,2#,TCR1#,2#199308-199501

LUCIDA,DP.RED MC/BLACK,3H8

main89341-28120-H1iCXR1#,2#,TCR1#,2#..G,X199308-199501

LUCIDA,LI.TURQUOISE MM/BLCK,750

main89341-28120-H3iCXR1#,2#,TCR1#,2#..G,X199308-199501

LUCIDA,DK.TEAL GRN MM/BLACK,751

main89341-28120-J1iCXR1#,2#,TCR1#,2#199308-199501

LUCIDA,BL.GRAY ME/BLACK,8H5

main89341-28120-P3iCXR11,21,TCR11,21199308-199501

LUCIDA,WARM GRAY OPAL,193

main89341-28130-A0iCXR10,20,TCR10,20199308-199501

main89341-28130-B2iCXR1#,2#,TCR1#,2#..G,X199308-199501

main89341-28130-D0iCXR1#,2#,TCR1#,2#199308-199501

main89341-28130-H0iCXR1#,2#,TCR1#,2#..G,X199308-199501

main89341-28130-H1iCXR1#,2#,TCR1#,2#..G,X199308-199501

main89341-28130-J0iCXR1#,2#,TCR1#,2#199308-199501

main89341-28140-A0iCXR10,20,TCR10,20199308-199501

main89341-28140-B2iCXR1#,2#,TCR1#,2#..G,X199308-199501

main89341-28140-D0iCXR1#,2#,TCR1#,2#199308-199501

main89341-28140-H0iCXR1#,2#,TCR1#,2#..G,X199308-199501

main89341-28140-H1iCXR1#,2#,TCR1#,2#..G,X199308-199501

main89341-28140-J0iCXR1#,2#,TCR1#,2#199308-199501

main89341-28180-B0iCXR1#,2#,TCR1#,2#199501-199608

WARM GRAY OP.,193

main89341-28180-D0iCXR1#,2#,TCR1#,2#199501-199608

DP.RED MC,3H8

main89341-28180-F0iCXR1#,2#,TCR1#,2#199501-199608

PL.YELLOW OP,574

main89341-28180-H0iCXR1#,2#,TCR1#,2#199501-199608

LT.TORQUOISE MM,750

main89341-28180-H1iCXR1#,2#,TCR1#,2#199501-199608

DK.TEAL GREEN MC.,751

main89341-28180-J0iCXR1#,2#,TCR1#,2#199501-199608

DK.BLUE M.M.,8K0

main89341-28230iCXR1#,2#,TCR1#,2#199608-199912

sub89341-28220

89341BSENSOR, ULTRASONIC, NO.2

main89341-28040-B0iCXR10,20,TCR10..F199201-199308

main89341-28040-B0iCXR10,20,TCR10..F199201-199308

main89341-28040-B0iCXR10,20,TCR10..F199201-199308

main89341-28040-B0iCXR10,20,TCR10..F199201-199308

main89341-28040-B0iCXR10,20..F199308-199501

GRAY M.,041 ,8H5

main89341-28040-B0iCXR10,20..F199308-199501

GRAY M.,041 ,750 ,751 ,8H5

main89341-28040-B0iCXR10,20..F199308-199501

GRAY M.,750 ,751 ,8H5

main89341-28040-B0iCXR1#,2#,TCR1#,2#199501-199608

GRAY M.,574 ,750 ,751 ,8K0

main89341-28040-E0iTCR10,20..ATM;CXR1#,2#,TCR11,21..G,GLUX,X,XLUX199201-199608

GRAY M.,193 ,3H8

main89341-28040-E0iTCR10,20..ATM;CXR1#,2#,TCR11,21..G,GLUX,X,XLUX199308-199608

main89341-28040-E0iCXR10,20,TCR10..F199201-199501

GRAY M.,3H8

main89341-28210iCXR1#,2#,TCR1#,2#199608-199912

89341CSENSOR, ULTRASONIC, NO.3

main89341-28020-B0iCXR10,20,TCR10,20..X199201-199308

sub89341-28120

main89341-28020-B0iCXR10,20,TCR10,20..X199201-199308

sub89341-28120

main89341-28020-B0iCXR10,20..D199201-199308

sub89341-28120

main89341-28020-B0iCXR10,20..D199201-199308

sub89341-28120

main89341-28020-E0iCXR1#,2#,TCR1#,2#..G,S,X199201-199308

sub89341-28120

main89341-28020-E0iCXR1#,2#,TCR1#,2#..G,S,X199201-199308

sub89341-28120

main89341-28120-A3iCXR10,20,TCR10,20..X199308-199501

main89341-28120-A3iCXR10,20..F199308-199501

WHITE/GRAY,041

main89341-28120-B7iCXR11,21,TCR11,21199308-199501

BLUE GRAY M./BLACK,041 ,8H5

main89341-28120-B7iCXR11,21,TCR11,21199308-199501

main89341-28120-B7iCXR11,21,TCR11,21199308-199501

main89341-28120-B7iCXR1#,2#,TCR1#,2#199501-199608

main89341-28120-E3iCXR10,20..F199308-199501

GRAY M./BLACK,3H8

main89341-28120-E3iCXR1#,2#,TCR1#,2#..G,GLUX,X,XLUX199308-199608

main89341-28220iCXR1#,2#,TCR1#,2#199608-199912

89348RETAINER, ULTRASONIC SENSOR, NO.1

main89348-22010iCXR1#,2#,TCR1#,2#199501-199912

main89348-22010iCXR1#,2#,TCR1#,2#199201-199501

LUCIDA

main89348-22010iCXR1#,2#,TCR1#,2#199201-199501

main89348-28010iCXR1#,2#,TCR1#,2#199201-199501

main89348-28010iCXR1#,2#,TCR1#,2#199501-199608

89348ARETAINER, ULTRASONIC SENSOR, NO.2

main89348-28020iCXR1#,2#,TCR1#,2#199201-199608

89356LABEL, CLEARANCE WARNING INFORMATION

main89356-28020iCXR1#,2#,TCR1#,2#199501-199912

main89356-28020iCXR1#,2#,TCR1#,2#199201-199501

89358NUT, ULTRASONIC SENSOR

main89358-28010iCXR1#,2#,TCR1#,2#199501-199608

main89358-28010iCXR1#,2#,TCR1#,2#199201-199501

89549BBRACKET, CLEARANCE WARNING COMPUTER

main89549-28060iCXR1#,2#,TCR1#,2#199201-199501

main89549-28060iCXR1#,2#,TCR1#,2#199501-199608

9011906061

main90119-06061

9017908085

main90179-08085

9165540820

main91655-40820

14 parts on this diagram · 2 diagrams in section
