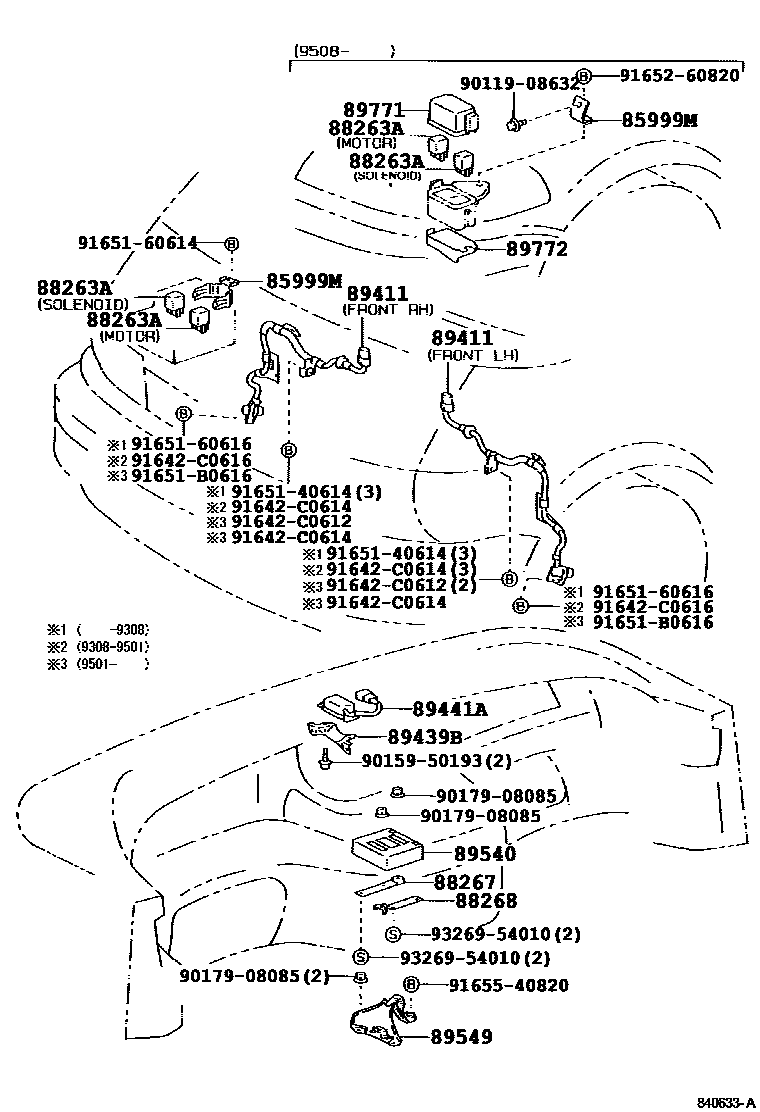

ABS & VSC

0001 1 0002 1 0003 1

85999MBRACKET, RELAY

main85999-28230iCXR1#,2#199508-199908

main85999-28350iTCR1#,2#199308-199608

main85999-28510iTCR1#,2#199608-199912

88263ARELAY, SKID CONTROL

main88263-12110iTCR1#,2#199604-199912

MOTOR RELAY

main88263-14110iCXR11,21,TCR11,21199201-199908

MOTOR RELAY

main88263-14120iTCR1#,2#199201-199501

SOLENOID RELAY

main88263-24030iCXR1#,2#199508-199908

SOLENOID RELAY

main88263-35070iCXR1#,2#199308-199912

SOLENOID RELAY

main89633-50030iCXR1#,2#,TCR1#,2#199308-199604

MOTER RELAY

sub28610-64110

88267BRACKET, SKID CONTROL COMPUTER, NO.1

main88267-28100iCXR11,21,TCR11,21199201-199608

main88267-28160iCXR1#,2#,TCR1#,2#199608-199801

88268BRACKET, SKID CONTROL COMPUTER, NO.2

main88268-28070iCXR11,21,TCR11,21199201-199608

main88268-28140iCXR1#,2#,TCR1#,2#199608-199801

89411SENSOR, SPEED

main89542-28020iCXR11,21,TCR11,21199201-199608

FRONT RH

sub89542-28060

main89542-28060iCXR1#,2#,TCR1#,2#199608-199912

FRONT RH

main89543-28020iCXR1#,2#,TCR1#,2#199201-199608

FRONT LH

sub89543-28060

main89543-28060iCXR1#,2#,TCR1#,2#199608-199912

FRONT LH

main89545-28030iCXR11,21,TCR11,21199201-199308

REAR RH

main89545-28070iCXR10,20,TCR10,20199308-199608

REAR RH

main89545-28080iCXR11,21,TCR11,21199308-199608

REAR RH

sub89545-28120

main89545-28110iCXR10,20,TCR10,20199608-199912

REAR RH

main89545-28120iCXR11,21,TCR11,21199608-199912

REAR RH

main89546-28030iCXR11,21,TCR11,21199201-199308

REAR LH

main89546-28070iCXR10,20,TCR10,20199308-199608

REAR LH

main89546-28080iCXR11,21,TCR11,21199308-199608

REAR LH

sub89546-28120

main89546-28090iCXR10,20,TCR10,20199608-199912

REAR LH

main89546-28120iCXR11,21,TCR11,21199608-199912

REAR LH

89439BBRACKET, SENSOR

main89439-28030iCXR21,TCR21199201-199608

main89439-28040iCXR21,TCR21199201-199608

89441ASENSOR, DECELERATION

main89441-28010iCXR21,TCR21199201-199403

main89441-28030iCXR2#,TCR2#199403-199608

89540COMPUTER ASSY, SKID CONTROL

main89540-28340iCXR1#,TCR1#199801-199912

main89540-28350iCXR2#,TCR2#199801-199912

main89541-28030iCXR11,TCR11199201-199308

sub89541-28060

main89541-28040iCXR21,TCR21199201-199308

sub89541-28070

main89541-28060iCXR1#,TCR1#199308-199608

main89541-28070iCXR2#,TCR2#199308-199608

main89541-28080iCXR1#,TCR1#199608-199801

main89541-28090iCXR2#,TCR2#199608-199801

89549BRACKET, SKID CONTROL COMPUTER

main89549-28060iCXR11,21,TCR11,21199201-199608

main89549-28100iCXR1#,2#,TCR1#,2#199608-199801

sub89549-28101

main89549-28101iCXR1#,2#,TCR1#,2#199801-199912

89771COVER, ABS RELAY BLOCK, UPPER

main89771-12010iCXR1#,2#199508-199908

89772COVER, ABS RELAY BLOCK, LOWER

main89772-12010iCXR1#,2#199508-199908

9011908632

main90119-08632

9015950193

main90159-50193

9017908085

main90179-08085

91642C0612

main91642-C0612

91642C0614

main91642-C0614

91642C0616

main91642-C0616

9165140614

main91651-40614

9165160614

main91651-60614

9165160616

main91651-60616

91651B0616

main91651-B0616

9165260820

main91652-60820

9165540820

main91655-40820

9326954010

main93269-54010

24 parts on this diagram · 3 diagrams in section
