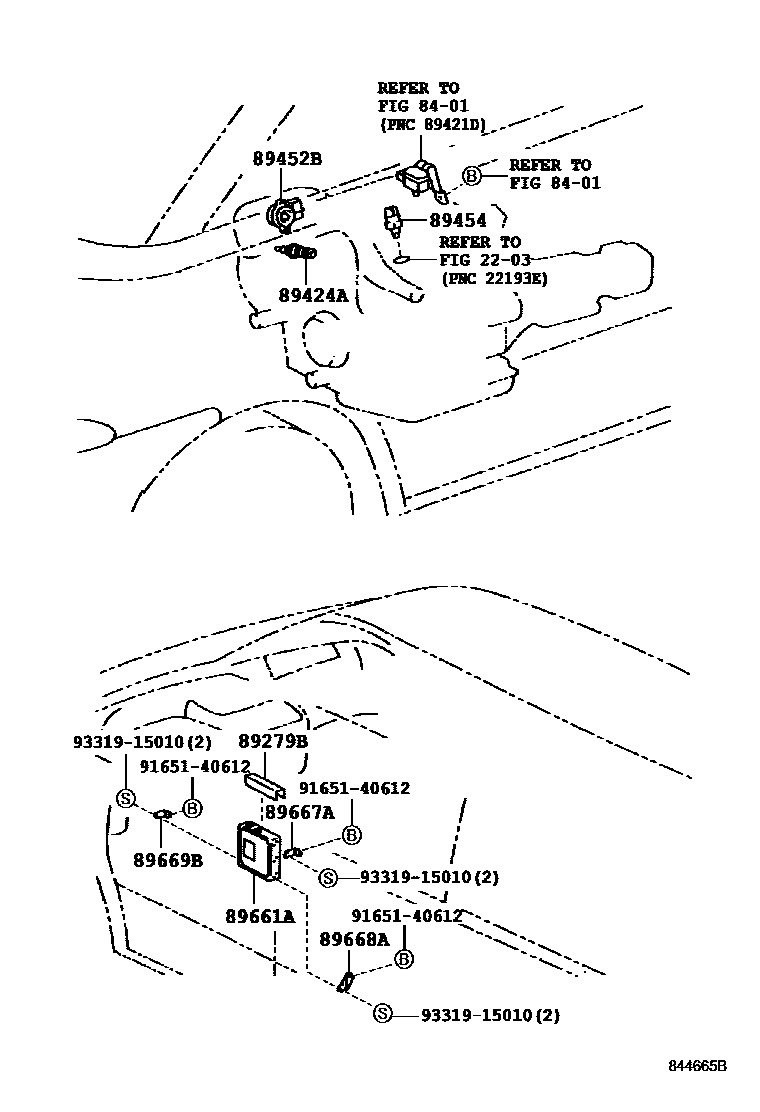

ELECTRONIC CONTROLED DIESEL (ECD)

2203

8401

89279BCOVER, DIESEL ENGINE CONTROL COMPUTOR

main89279-28010iCXR1#,2#199308-199908

89424ASENSOR, INLET AIR TEMPERATURE (FOR DIESEL TURBO)

main89424-28020iCXR1#,2#199308-199604

main89424-60010iCXR1#,2#199604-199908

89452BSENSOR, THROTTLE POSITION

main89452-22090iCXR1#,2#199308-199312

main89452-28090iCXR1#,2#199312-199908

sub89452-22090

89454SENSOR, FUEL TEMPERATURE

main89454-60010iCXR1#,2#199308-199908

89661ACOMPUTER, ENGINE CONTROL

main89661-28300iCXR10,20..MTM199308-199501

main89661-28310iCXR1#,2#..ATM199308-199501

main89661-28570iCXR10,20..MTM199501-199608

main89661-28580iCXR1#,2#..ATM199501-199608

main89661-28760iCXR10,20..MTM199608-199908

main89661-28770iCXR1#,2#..ATM199608-199908

89667ABRACKET, ENGINE CONTROL COMPUTER, NO.1

main89667-28020iCXR1#,2#199308-199908

89668ABRACKET, ENGINE CONTROL COMPUTER, NO.2

main89668-28040iCXR1#,2#199308-199908

89669BBRACKET, ENGINE CONTROL COMPUTER, NO.3

main89669-28030iCXR1#,2#199308-199908

9165140612

main91651-40612

9331915010

main93319-15010

12 parts on this diagram · 1 diagram in section
