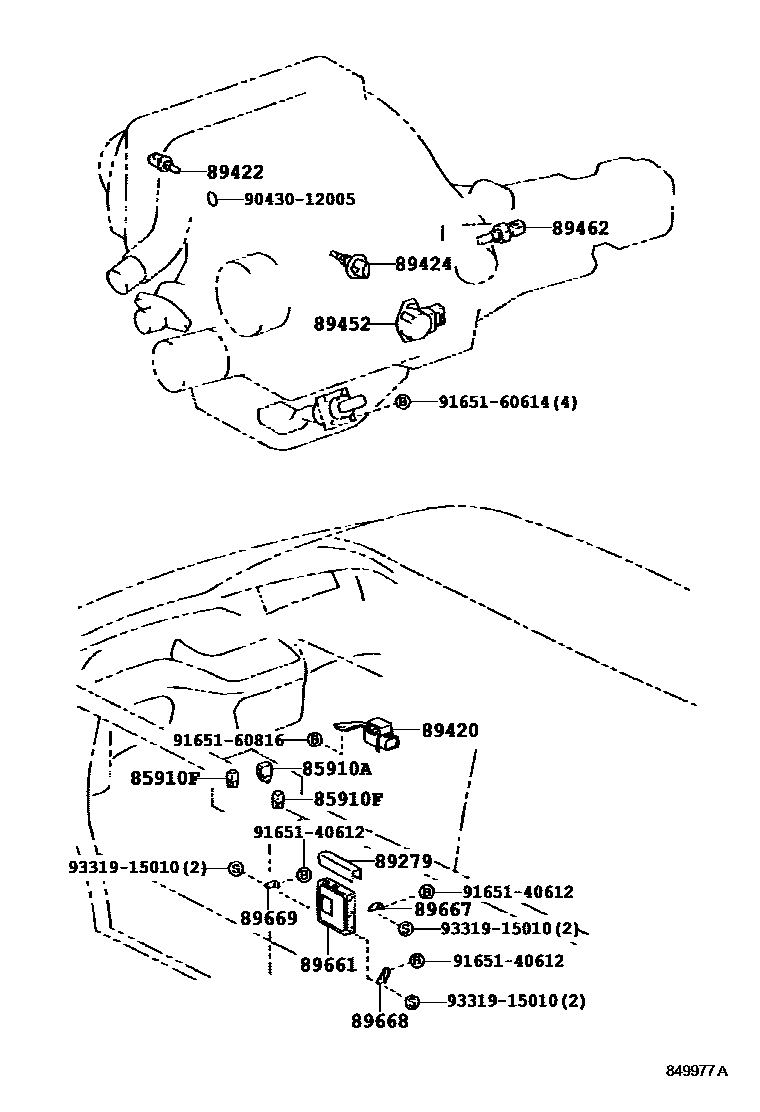

ELECTRONIC FUEL INJECTION SYSTEM

85910ARELAY ASSY, CIRCUIT OPENING (FOR EFI)

main85910-30050iTCR1#,2#199201-199501

85910FRELAY, COMPUTER (FOR EFI)

main90987-02009iTCR1#,2#199201-199912

89279COVER, ENGINE CONTROL COMPUTER

main89279-28010iTCR1#,2#199201-199912

89420SENSOR ASSY, VACUUM

main89420-28050iTCR1#,2#199608-199912

89422SENSOR, WATER TEMPERATURE (FOR E.F.I.)

main89422-20010iTCR1#,2#199201-199912

89424SENSOR, INLET AIR TEMPERATURE (FOR E.F.I.)

main89424-12010iTCR1#,2#199608-199912

89452SENSOR, THROTTLE POSITION (FOR E.F.I.)

main89452-12040iTCR1#,2#199201-199401

main89452-20130iTCR1#,2#199608-199912

main89452-22090iTCR1#,2#199401-199608

89462SWITCH, START INJECTOR TIME

main89462-20020iTCR1#,2#199201-199501

89661COMPUTER, ENGINE CONTROL

main89661-28200iTCR10,2#..MTM199201-199501

main89661-28210iTCR1#,2#..ATM199201-199308

main89661-28290iTCR1#,2#..ATM199308-199501

main89661-28470iTCR1#,2#199608-199912

main89661-28550iTCR10,20..MTM199501-199608

main89661-28560iTCR1#,2#..ATM199501-199608

89667BRACKET, ENGINE CONTROL COMPUTER

main89667-28020iTCR1#,2#199201-199912

89668BRACKET, ENGINE CONTROL COMPUTER, NO.2

main89668-28010iTCR1#,2#199201-199308

main89668-28040iTCR1#,2#199308-199912

89669BRACKET, ENGINE CONTROL COMPUTER, NO.3

main89667-28020iTCR1#,2#199201-199308

main89669-28030iTCR1#,2#199308-199912

main89669-28040iTCR1#,2#199501-199608

9043012005

main90430-12005

9165140612

main91651-40612

9165160614

main91651-60614

9165160816

main91651-60816

9331915010

main93319-15010

17 parts on this diagram · 1 diagram in section
