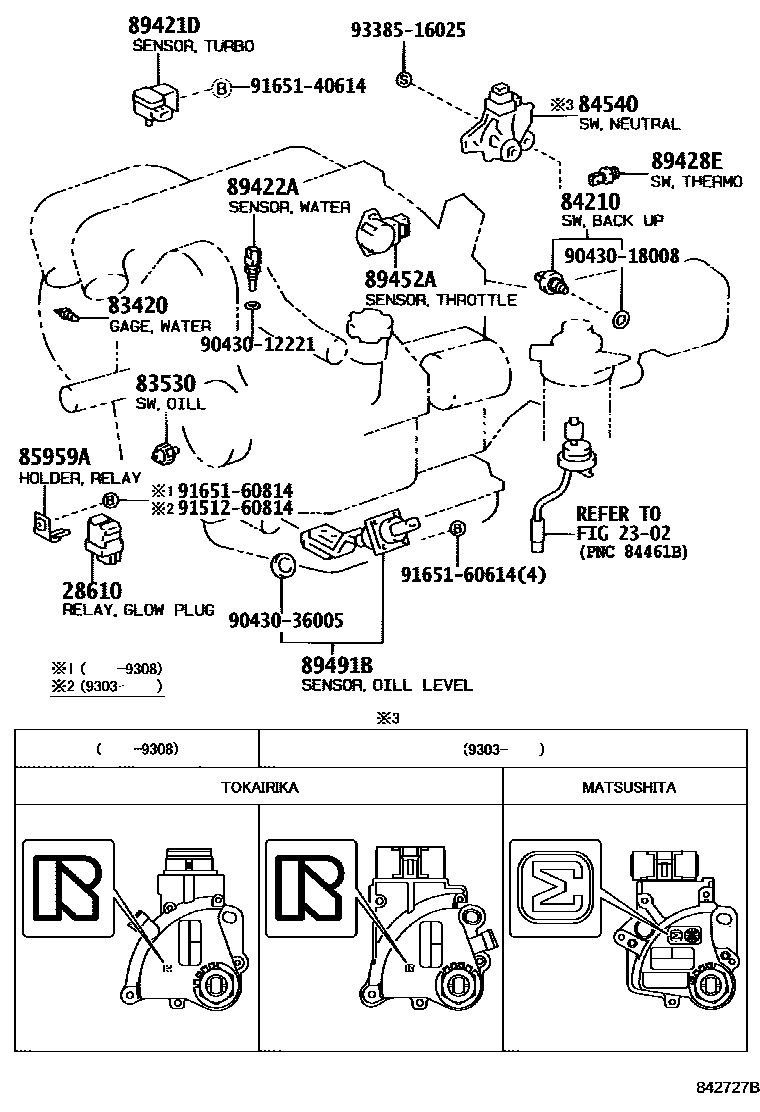

SWITCH & RELAY & COMPUTER

0001 1ENGINE &TRANSMISSION 0002 1ENGINE & TRANSMISSION 0003 1INSTRUMENT PANEL SWITCH 0004 1COWL 0005 1COMBINATION SWITCH 0006 1RELAY BLOCK 0007 1ROOF, FLOOR 0008 1DOOR

2302

28610RELAY ASSY, INTAKE HEATER OR GLOW PLUG

main28610-54360i3CTE..CXR1#,2#199501-199908

main28610-64170i3CT..CXR1#,2#199201-199308

main28610-67010i3CTE..CXR1#,2#199308-199501

83420GAGE ASSY, WATER TEMPERATURE SENDER

main83420-16020iCXR1#,2#199201-199308

main83420-16040iTCR1#,2#..AERAS,G,GLUX,X,XLUX199308-199912

main83420-16040iTCR10,20..ELU199801-199912

main83420-20020iTCR1#,2#199201-199205

main83420-20030iTCR1#,2#199205-199308

sub83420-16040

main83420-20040iCXR1#,2#199308-199908

83530SWITCH ASSY, OIL PRESSURE (FOR ENGINE)

main83530-14060iTCR1#,2#199201-199308

sub83530-30090

main83530-28020iTCR1#,2#199803-199912

main83530-30090iTCR1#,2#199308-199803

sub83530-60020

main83530-30100iCXR1#,2#199201-199803

sub83530-60010

main83530-60010iCXR1#,2#199803-199908

84210SWITCH ASSY, BACK-UP LAMP

main84210-12040iCXR1#,2#,TCR10,2#..MTM199201-199908

sub84210-52050

84540SWITCH ASSY, NEUTRAL START

main84540-28021iCXR1#,2#,TCR1#,2#..ATM199201-199308

main84540-30290iCXR1#,2#,TCR1#,2#..ATM199308-199912

main84540-30300iCXR1#,2#,TCR1#,2#..ATM199308-199912

MATUSITA

85959AHOLDER, RELAY

main85959-28030iCXR1#,2#199201-199501

89421DSENSOR, TURBO PRESSURE

main89420-30040iCXR1#,2#199201-199908

89422ASENSOR, WATER TEMPERATURE

main89422-20010iCXR1#,2#199201-199308

main89422-35010iCXR1#,2#199308-199908

89428ESWITCH, TEMPERATURE, NO.2 (FOR TRANSMISSION)

main89428-26030iCXR2#,TCR2#..ATM199201-199308

main89428-60090iCXR2#,TCR2#..ATM199308-199912

89452ASENSOR, THROTTLE POSITION

main89452-28060iCXR1#,2#199201-199308

89491BSENSOR, ENGINE OIL LEVEL(FOR AUTO FEEDER)

main89491-28030iTCR1#,2#199201-199501

main89491-28040iCXR1#,2#199201-199501

main89491-28050iTCR1#,2#199501-199912

main89491-28060iCXR1#,2#199501-199908

9043012221

main90430-12221

9043018008

main90430-18008

9043036005

main90430-36005

9151260814

main91512-60814

9165140614

main91651-40614

9165160614

main91651-60614

9165160814

main91651-60814

9338516025

main93385-16025

20 parts on this diagram · 8 diagrams in section
