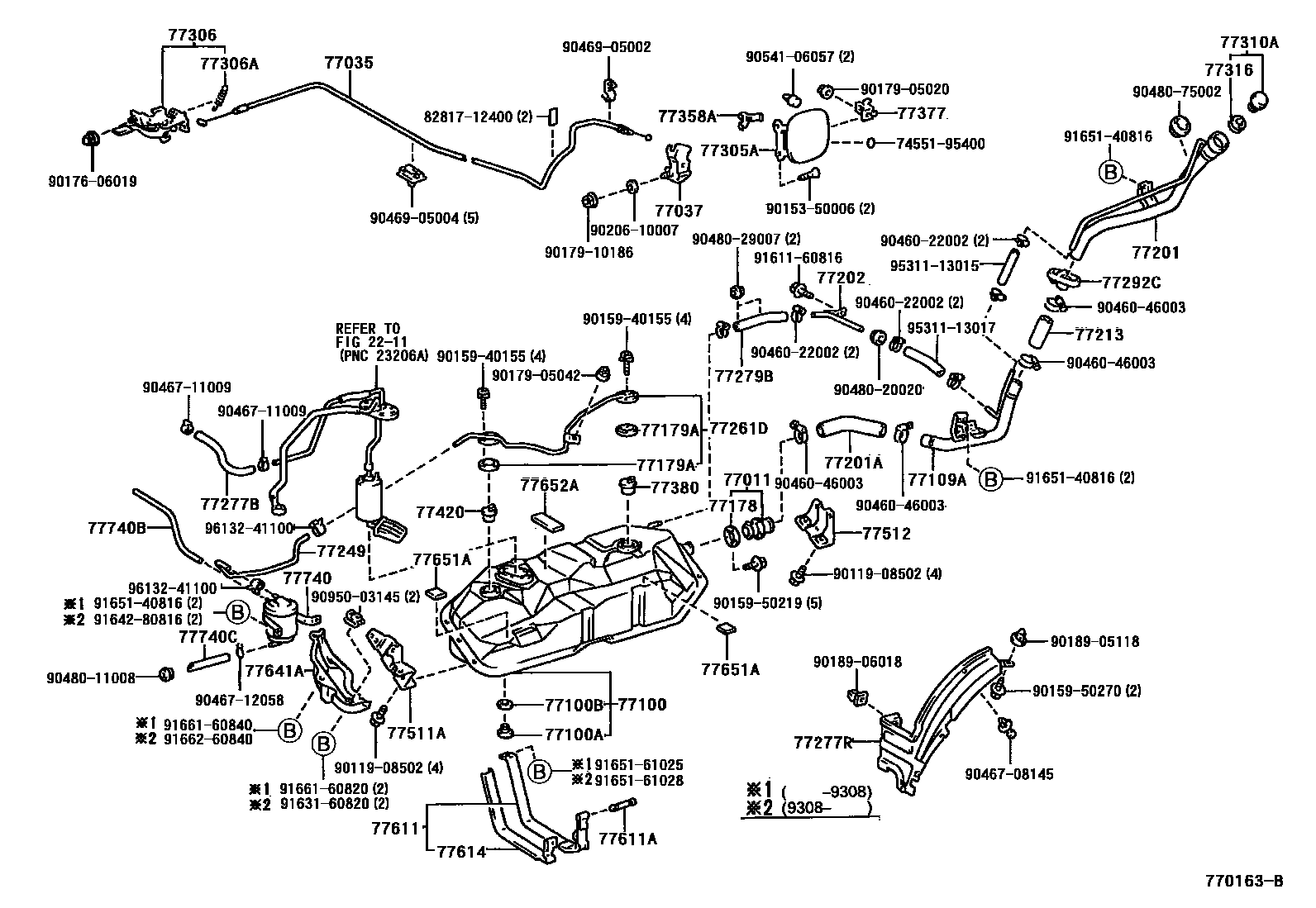

FUEL TANK & TUBE

0001 1 0002 1 0003 1

2211

77011PIPE SUB-ASSY, FUEL TANK FILLER, LOWER

main77011-28010iCXR1#,2#,TCR1#,2#199201-199912

77035CABLE SUB-ASSY, FUEL LID LOCK CONTROL

main77035-28020iCXR1#,2#,TCR1#,2#199201-199308

main77035-28021iCXR1#,2#,TCR1#,2#199308-199411

CHUUHATU

main77035-28022iCXR1#,2#,TCR1#,2#199411-199912

CHUUHATU

main77035-28031iCXR1#,2#,TCR1#,2#199308-199411

N.KEIBURU

sub77035-28021

77037LOCK SUB-ASSY, FUEL FILLER OPENING LID

main77037-95D01iCXR1#,2#,TCR1#,2#199201-199912

77100TANK ASSY, FUEL

main77001-28350iCXR1#,2#,TCR1#,2#199201-199912

77100APLUG(FOR FUEL TANK)

main90341-20004iCXR1#,2#,TCR1#,2#199201-199912

77100BGASKET(FOR FUEL TANK)

main90430-20007iCXR1#,2#,TCR1#,2#199201-199912

77109APIPE SUB-ASSY, FUEL TANK FILLER, LOWER

main77109-28011iCXR10,20,TCR10,20199201-199912

main77109-28021iCXR11,21,TCR11,21199201-199912

main77109-28040iCXR10,20,TCR10,20199201-199912

sub77109-28011

77178GASKET, FUEL TANK FILLER PIPE, LOWER

main77178-20030iCXR1#,2#,TCR1#,2#199201-199912

77179AGASKET, FUEL TANK BREATHER TUBE

main77179-26010iCXR1#,2#,TCR1#,2#199201-199912

sub77179-26011

77201PIPE SUB-ASSY, FUEL TANK INLET

main77201-28120iCXR1#,2#,TCR1#,2#199201-199912

77201AHOSE, FUEL, NO.1(FOR FUEL TANK INLET PIPE)

main77217-28050iCXR10,20,TCR10,20199201-199912

main77217-28060iCXR11,21,TCR11,21199201-199912

77202TUBE SUB-ASSY, BREATHER

main77203-28080iCXR10,20,TCR10,20199201-199912

main77203-28090iCXR11,21,TCR11,21199201-199912

77213HOSE, FUEL TANK SUB INLET

main77213-28020iCXR1#,2#,TCR1#,2#199201-199912

77249HOSE, FUEL EMISSION

main77249-28080iTCR1#,2#199201-199912

77261DTUBE, FUEL TANK TO CANISTER

main77026-28080iCXR1#,2#,TCR1#,2#199201-199912

77277BHOSE, FUEL, NO.2(FOR RETURN TUBE, NO.1)

main90447-12081iTCR1#,2#199201-199912

77277RPROTECTOR, FUEL TANK FILLER PIPE

main77277-95D00iCXR1#,2#,TCR1#,2#199201-199912

77279BHOSE, FUEL, NO.2 (FOR RETURN TUBE, NO.3)

main77279-28040iCXR1#,2#,TCR1#,2#199201-199912

77292CSHIELD, FUEL TANK FILLER PIPE, NO.2

main77292-95D01iCXR1#,2#,TCR1#,2#199201-199912

77305ALID SUB-ASSY, FUEL FILLER OPENING

main77305-95D01iCXR1#,2#,TCR1#,2#199201-199912

77306LEVER SUB-ASSY, FUEL LID LOCK OPEN

main77306-28020iCXR1#,2#,TCR1#,2#199201-199308

main77306-28021iCXR1#,2#,TCR1#,2#199308-199912

77306ASPRING, FUEL LID OPEN LEVER

main90506-09004iCXR1#,2#,TCR1#,2#199201-199912

77310ACAP ASSY, FUEL TANK

main77310-12150iCXR1#,2#199801-199908

main77310-16011iTCR1#,2#199201-199801

sub77310-12140

main77310-32011iCXR1#,2#199201-199801

main77310-48010iTCR1#,2#199801-199912

77316GASKET, FUEL TANK CAP

main77316-16010iCXR1#,2#,TCR1#,2#199201-199912

77358ASTOPPER, FUEL FILLER OPENING LID

main77358-28020iCXR1#,2#,TCR1#,2#199201-199912

77377RETAINER, FUEL FILLER OPENING LID LOCK

main77377-20040iCXR1#,2#,TCR1#,2#199201-199912

77380VALVE ASSY, FUEL CUT OFF

main77380-26010iCXR1#,2#,TCR1#,2#199201-199912

77420VALVE ASSY, FUEL CUT OFF, NO.2

main77420-26010iCXR1#,2#,TCR1#,2#199201-199912

77511ABRACKET, FUEL TANK

main77511-28080iCXR1#,2#,TCR1#,2#199201-199409

sub77511-28081

main77511-28081iCXR1#,2#,TCR1#,2#199409-199912

77512BRACKET, FUEL TANK, REAR

main77512-28010iCXR1#,2#,TCR1#,2#199201-199308

main77512-28011iCXR1#,2#,TCR1#,2#199308-199912

77611BAND, FUEL TANK

main77601-28060iCXR1#,2#,TCR1#,2#199201-199912

77611APIN (FOR FUEL TANK BAND)

main77629-25010iCXR1#,2#,TCR1#,2#199201-199912

77614SEAT, FUEL TANK BAND

main77681-28030iCXR1#,2#,TCR1#,2#199201-199912

77641APROTECTOR, FUEL TANK, NO.1

main77641-28050iCXR1#,2#,TCR1#,2#199201-199409

sub77641-28051

main77641-28051iCXR1#,2#,TCR1#,2#199409-199912

77651ACUSHION, FUEL TANK, NO.1

main77651-28030iCXR1#,2#,TCR1#,2#199201-199912

77652ACUSHION, FUEL TANK, NO.2

main77652-28010iCXR1#,2#,TCR1#,2#199201-199912

77740CANISTER ASSY, CHARCOAL

main77740-28121iTCR1#,2#199201-199608

main77740-28160iTCR1#,2#199608-199912

77740BHOSE, FUEL, NO.2(FOR CHARCOAL CANISTER)

main90999-92002iTCR1#,2#199201-199912

main90999-92002iTCR1#,2#199201-199308

main90999-92002iTCR1#,2#199201-199608

main90999-92002iTCR1#,2#199201-199912

77740CHOSE, FUEL, NO.3(FOR CHARCOAL CANISTER)

main90441-08004iTCR1#,2#199201-199608

main90441-08007iTCR1#,2#199608-199912

7455195400PLATE, BACK DOOR CAUTION

main74551-95400

8281712400PROTECTOR, WIRING HARNESS, NO.1

main82817-12400

9011908502

main90119-08502

9015350006

main90153-50006

9015940155

main90159-40155

9015950219

main90159-50219

9015950270

main90159-50270

9017606019

main90176-06019

9017905020

main90179-05020

9017905042

main90179-05042

9017910186

main90179-10186

9018905118

main90189-05118

9018906018

main90189-06018

9020610007

main90206-10007

9046022002

main90460-22002

9046046003

main90460-46003

9046708145

main90467-08145

9046711009

main90467-11009

9046712058

main90467-12058

9046905002

main90469-05002

9046905004

main90469-05004

9048011008

main90480-11008

9048020020

main90480-20020

9048029007

main90480-29007

9048075002

main90480-75002

9054106057

main90541-06057

9095003145

main90950-03145

9161160816

main91611-60816

9163160820

main91631-60820

9164280816

main91642-80816

9165140816

main91651-40816

9165161025

main91651-61025

9165161028

main91651-61028

9166160820

main91661-60820

9166160840

main91661-60840

9166260840

main91662-60840

9531113015

main95311-13015

9531113017

main95311-13017

9613241100

main96132-41100

79 parts on this diagram · 3 diagrams in section
