LOCK CYLINDER SET

69051CYLINDER & KEY SET, DOOR LOCK, RH

main69051-95D02iCXR1#,2#,TCR1#,2#199801-199912

sub69051-95D04

main69051-95D06iCXR1#,2#,TCR1#,2#199201-199801

sub69051-95D02

69052CYLINDER & KEY SET, DOOR LOCK, LH

main69052-95D02iCXR1#,2#,TCR1#,2#199801-199912

sub69052-95D04

main69052-95D06iCXR1#,2#,TCR1#,2#199201-199801

sub69052-95D02

69054BCYLINDER & KEY SET, SLIDE DOOR LOCK, LH

main69054-95D00iCXR1#,2#,TCR1#,2#199801-199912

sub69054-95D02

main69054-95D04iCXR1#,2#,TCR1#,2#199201-199801

sub69054-95D00

69055BCYLINDER & KEY SET, BACK DOOR LOCK

main69055-28090iCXR1#,2#,TCR1#,2#199201-199801

sub69055-28230

main69055-28230iCXR1#,2#,TCR1#,2#199801-199912

69057ACYLINDER & KEY SET, IGNITION SWITCH LOCK

main69057-95D04iCXR1#,2#,TCR1#,2#199801-199912

sub69057-95D03

main69057-95D05iCXR1#,2#,TCR1#,2#199201-199801

sub69057-95D04

69062CYLINDER & KEY SET, GLOVE COMPARTMENT LOCK

main69056-28030-B0iCXR11,21,TCR11,21..G199201-199308

LIGHT GLAY,TRIM1#

main69056-28030-E0iCXR11,21,TCR11,21..G199201-199308

LIGHT GLAIGE,TRIM4#

69503CYLINDER SET, LOCK

main69503-28020iCXR10,20,TCR1#,2#..D,F,S,X199201-199801

sub69503-28270

main69503-28030-B0iCXR11,21,TCR11,21..G199201-199308

LIGHT GLAY,TRIM1#

main69503-28030-E0iCXR11,21,TCR11,21..G199201-199308

LIGHT GLAIGE,TRIM4#

main69503-28270iCXR1#,2#,TCR1#,2#..AERAS,G,X,XLUX199801-199912

69503AKEY, BLANK

main90999-00166iCXR1#,2#,TCR1#,2#..AERAS,D,F,G,GLUX,S,X,XLUX199201-199912

main90999-00167iCXR1#,2#,TCR1#,2#199201-199912

main90999-00168iCXR11,21,TCR11,21..G199201-199308

69555COVER, KEY

main69555-17020iCXR1#,2#,TCR1#,2#199210-199501

main69555-20010iCXR1#,2#,TCR1#,2#199201-199210

9356815012

main93568-15012

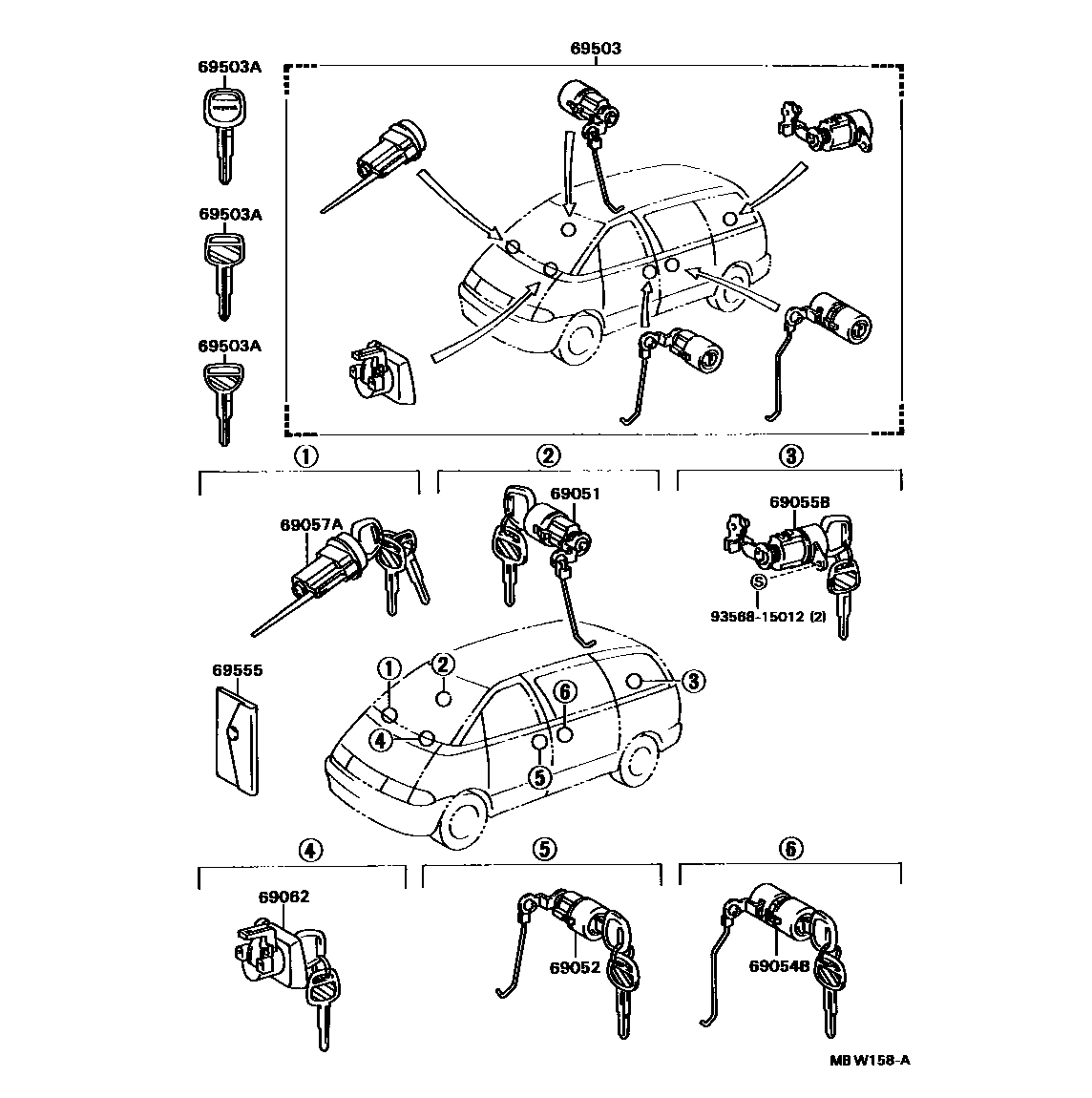

10 parts on this diagram · 1 diagram in section
