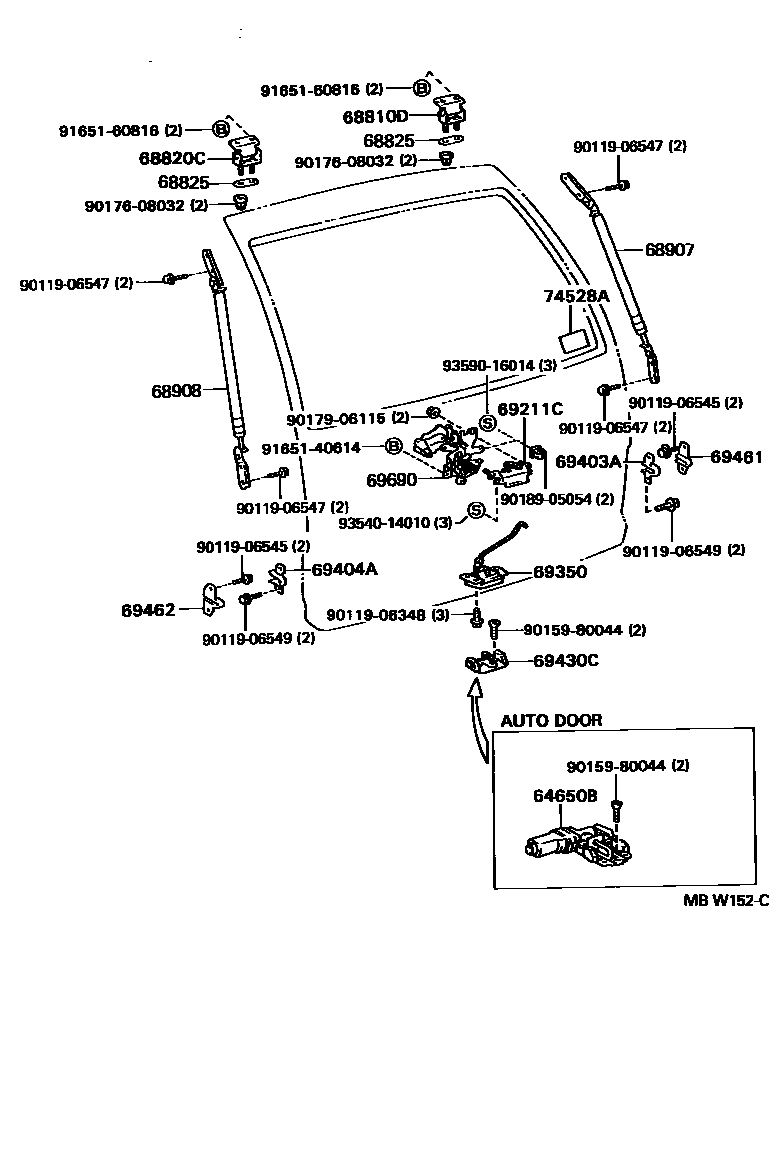

BACK DOOR LOCK & HINGE

64650BCLOSER ASSY, BACK DOOR

main64650-28010iCXR1#,2#,TCR1#,2#..G,S,X199201-199501

68810DHINGE ASSY, BACK DOOR, RH

main68810-28010iCXR10,20..D199302-199308

main68810-28010iCXR1#,2#,TCR1#,2#..AERAS,ELU,F,G,GLUX,S,X,XLUX199302-199912

main68810-28030iCXR10,20..D199302-199308

main68810-95D00iCXR10,20..D199201-199302

sub68810-28030

main68810-95D01iCXR10,20..D199201-199302

sub68810-28010

68820CHINGE ASSY, BACK DOOR, LH

main68820-28010iCXR1#,2#,TCR1#,2#199302-199912

main68820-95D00iCXR1#,2#,TCR1#,2#199201-199302

sub68820-28010

68825PLATE, BACK DOOR HINGE

main68825-95700iCXR1#,2#,TCR1#,2#..ATM199308-199912

68907STAY SUB-ASSY, BACK DOOR DAMPER, RH

main68907-0W150iCXR1#,2#,TCR1#,2#199406-199612

sub68907-28021

main68907-28020iCXR10,20..D199201-199308

sub68907-28021

main68907-28021iCXR1#,2#,TCR1#,2#..AERAS,ELU,G,X,XLUX199612-199802

main68907-28021iCXR1#,2#,TCR1#,2#199802-199912

main68907-28031iCXR1#,2#,TCR1#,2#199201-199406

main68907-28031iCXR1#,2#,TCR1#,2#199406-199912

main68907-28100iCXR1#,2#,TCR1#,2#199802-199912

main68907-28120iCXR1#,2#,TCR1#,2#..G,S,X199210-199406

68908STAY SUB-ASSY, BACK DOOR DAMPER, LH

main68908-0W150iCXR1#,2#,TCR1#,2#199406-199612

sub68908-28021

main68908-28020iCXR10,20..D199201-199308

sub68908-28021

main68908-28021iCXR1#,2#,TCR1#,2#..AERAS,ELU,G,X,XLUX199612-199802

main68908-28021iCXR1#,2#,TCR1#,2#199802-199912

main68908-28031iCXR1#,2#,TCR1#,2#..F,G,S,X199201-199406

main68908-28031iCXR1#,2#,TCR1#,2#199406-199912

main68908-28100iCXR1#,2#,TCR1#,2#199802-199912

main68908-28120iCXR1#,2#,TCR1#,2#..G,S,X199210-199406

69211CHANDLE, BACK DOOR OUTSIDE

main69023-28010iCXR1#,2#,TCR1#,2#199608-199912

main69023-28020iCXR1#,2#,TCR1#,2#199201-199608

69350LOCK ASSY, BACK DOOR

main69350-28020iCXR1#,2#,TCR1#,2#199201-199912

69403ASTOPPER SUB-ASSY, BACK DOOR SIDE FEMALE, RH

main69403-95D00iCXR1#,2#,TCR1#,2#199201-199912

69404ASTOPPER SUB-ASSY, BACK DOOR SIDE FEMALE, LH

main69404-95D00iCXR1#,2#,TCR1#,2#199201-199912

69430CSTRIKER ASSY, BACK DOOR LOCK

main69430-95D00iCXR1#,2#,TCR1#,2#199201-199912

69461STOPPER, BACK DOOR SIDE MALE, RH

main69461-28010iCXR1#,2#,TCR1#,2#199412-199912

main69461-95D00iCXR1#,2#,TCR1#,2#199201-199412

69462STOPPER, BACK DOOR SIDE MALE, LH

main69462-28010iCXR1#,2#,TCR1#,2#199412-199912

main69462-95D00iCXR1#,2#,TCR1#,2#199201-199412

69690CONTROL ASSY, BACK DOOR REMOTE

main69690-28010iCXR1#,2#,TCR1#,2#..F,G,GLUX,S,X,XLUX199201-199608

main69690-28011iCXR11,21,TCR11,21199308-199501

main69690-28020iCXR10,20..D199201-199308

main69690-28030iCXR10,20..TD;TCR21..ATM..G;CXR10,20..X..TDEFI;CXR11,21,TCR1#,20..G,S,X199201-199501

main69690-28040iCXR11,21,TCR11,21199308-199501

main69690-28060iCXR1#,2#,TCR1#,2#199608-199912

74528ALABEL, POWER SLIDE DOOR NOTICE

main74528-28010iCXR1#,2#,TCR1#,2#..G,S,X199201-199308

sub74528-95J02

main74528-95J02iCXR1#,2#,TCR1#,2#..G,X199308-199501

sub74528-26010

9011906348

main90119-06348

9011906545

main90119-06545

9011906547

main90119-06547

9011906549

main90119-06549

9015980044

main90159-80044

9017608032

main90176-08032

9017906115

main90179-06115

9018905054

main90189-05054

9165140614

main91651-40614

9165160816

main91651-60816

9354014010

main93540-14010

9359016014

main93590-16014

27 parts on this diagram · 1 diagram in section
