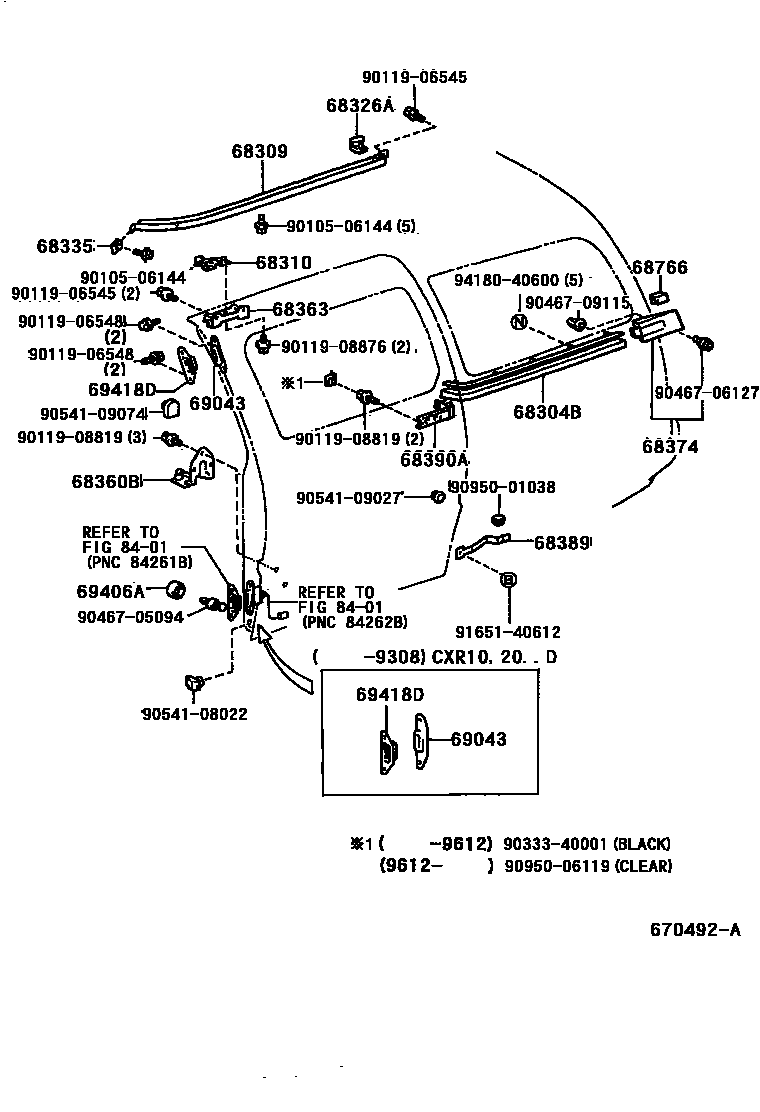

SLIDE ROLLER & RAIL

68304BRAIL SUB-ASSY, SLIDE DOOR, CENTER LH

main68304-28020iCXR10,20..D199201-199308

main68304-28050iCXR1#,2#,TCR1#,2#199501-199912

main68304-95D00iCXR1#,2#,TCR1#,2#..F,G,S,X199201-199501

68309RAIL SUB-ASSY, SLIDE DOOR, UPPER LH

main68309-95D00iCXR1#,2#,TCR1#,2#199201-199912

68310ROLLER ASSY, SLIDE DOOR, UPPER

main68301-28010iCXR1#,2#,TCR1#,2#199809-199912

main68301-95D00iCXR1#,2#,TCR1#,2#199201-199808

68326ACUSHION, SLIDE DOOR UPPER RAIL, LH

main68326-95D00iCXR1#,2#,TCR1#,2#199201-199912

68335PAD, SLIDE DOOR UPPER RAIL

main68335-95702iCXR1#,2#,TCR1#,2#199201-199912

68360BROLLER ASSY, SLIDE DOOR, LOWER LH

main68360-95D00iCXR1#,2#,TCR1#,2#199201-199912

68363BRACKET, SLIDE DOOR UPPER ROLLER

main68363-95D00iCXR1#,2#,TCR1#,2#199201-199410

sub68363-28010

sub68364-28010

main68364-28010iCXR1#,2#,TCR1#,2#199410-199809

main68364-28020iCXR1#,2#,TCR1#,2#199809-199912

68374MOULDING, SLIDE RAIL END, LH

main68374-28020iCXR10,20..D199201-199308

main68374-95D00iCXR1#,2#,TCR1#,2#..AERAS,ELU,F,G,GLUX,S,X,XLUX199201-199912

68389SPRING, SLIDE DOOR CATCH, LH

main68389-28020iCXR1#,2#,TCR1#,2#199312-199912

main68389-95D00iCXR1#,2#,TCR1#,2#199201-199312

sub68389-28020

68390AHINGE ASSY, SLIDE DOOR, CENTER LH

main68390-28010iCXR1#,2#,TCR1#,2#199809-199912

main68390-95D00iCXR1#,2#,TCR1#,2#199201-199808

68766BRACKET, SLIDE DOOR RAIL END MOULDING, LH

main68766-28010iCXR1#,2#,TCR1#,2#199201-199912

69043STOPPER SUB-ASSY, SLIDE DOOR DOWN FEMALE

main69043-95D00iCXR10,20..D199201-199912

69406ASTOP SUB-ASSY, SLIDE DOOR DOWN MALE

main69417-95D01iCXR1#,2#,TCR1#,2#199201-199912

69418DSTOPPER, SLIDE DOOR DOWN MALE, LOWER LH

main69416-95D00iCXR10,20..D199201-199308

main69416-95D00iCXR1#,2#,TCR1#,2#..AERAS,ELU,F,G,GLUX,S,X,XLUX199201-199912

main69418-95D00iCXR10,20..D199201-199308

8401

9010506144

main90105-06144

9011906545

main90119-06545

9011906548

main90119-06548

9011908819

main90119-08819

9011908876

main90119-08876

9033340001

main90333-40001

9046705094

main90467-05094

9046706127

main90467-06127

9046709115

main90467-09115

9054108022

main90541-08022

9054109027

main90541-09027

9054109074

main90541-09074

9095001038

main90950-01038

9095006119

main90950-06119

9165140612

main91651-40612

9418040600

main94180-40600

31 parts on this diagram · 1 diagram in section
