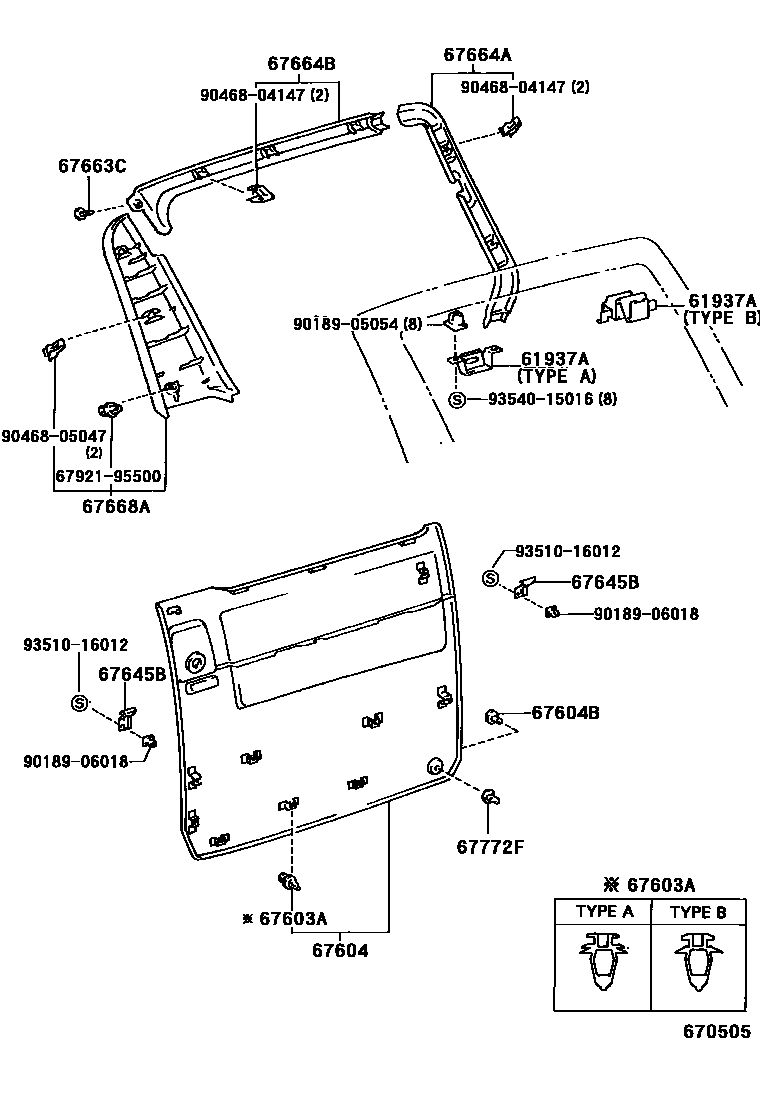

REAR DOOR PANEL & GLASS

0001 1 0002 1

61937ABRACKET, SIDE WINDOW GARNISH

main61937-95D00iCXR1#,2#,TCR1#,2#199201-199912

main61937-95D01iCXR1#,2#,TCR1#,2#199201-199912

67603ARETAINER(FOR REAR DOOR TRIM BOARD)

main67771-12050iCXR1#,2#,TCR1#,2#199201-199211

main67921-95D03iCXR1#,2#,TCR1#,2#..GLUX,XLUX199201-199912

main67921-95D03iCXR11,21,TCR11,21..G199308-199608

main90467-08179iCXR1#,2#,TCR1#,2#..AERAS,D,F,G,S,X199211-199912

main90467-08179iCXR11,21,TCR11,21..G199308-199912

67604BOARD SUB-ASSY, REAR DOOR TRIM, LH

main67690-28010-B0iCXR10,20,TCR1#,2#..D,F,S,X199201-199308

LIGHT GRAY,TRIM1#

sub67690-28010

sub67690-28040

main67690-28010-B1iCXR10,20,TCR10,20..AERAS,F,X199308-199912

BLUISH GRAY,TRIM1#

sub67690-28010

sub67690-28040

main67690-28010-E0iCXR10,20,TCR10,20..X199201-199308

LIGHT GREIGE,TRIM4#

sub67690-28010

sub67690-28040

main67690-28010-E1iCXR10,20,TCR10,20..X199308-199608

MI. GREIGE,TRIM4#

sub67690-28010

sub67690-28040

main67690-28020-B0iCXR11,21,TCR11,21..G199201-199308

LIGHT GRAY,TRIM1#

main67690-28020-E0iCXR11,21,TCR11,21..G199201-199308

LIGHT GREIGE,TRIM4#

main67690-28040-B2iCXR10,20,TCR10,20..X199308-199501

sub67690-28040

main67690-28040-E2iCXR10,20,TCR10,20..X199308-199501

sub67690-28040

main67690-28060-B1iCXR11,21,TCR11,21..G199308-199608

sub67690-28150

main67690-28060-B1iCXR1#,2#,TCR1#,2#..GLUX,XLUX199501-199608

BLUISH GRAY,TRIM1#

sub67690-28150

main67690-28060-E0iCXR11,21,TCR11,21..G199308-199608

sub67690-28150

main67690-28060-E0iCXR1#,2#,TCR1#,2#..GLUX,XLUX199501-199608

MI. GREIGE,TRIM4#

sub67690-28150

main67690-28100-B1iCXR11,21,TCR11,21..GLUX199608-199801

BLUISH GRAY,TRIM1#

sub67690-28100

main67690-28130-B0iCXR11,21,TCR11,21..G199608-199801

BLUISH GRAY,TRIM1#

sub67690-28140

main67690-28140-B0iCXR11,21,TCR11,21..G199608-199801

main67690-28141-B1iCXR11,21,TCR11,21199801-199912

BLUISH GRAY,TRIM1#

main67690-28150-B1iCXR10,20,TCR10,20..XLUX199608-199912

BLUISH GRAY,TRIM1#

sub67690-28150

main67690-28170-B0iCXR10,20,TCR10,20..ATM..X199610-199703

main67690-28180-B1iCXR10,20,TCR10,20..ATM..X199704-199708

main67690-28190-B0iCXR10,20,TCR10,20..ELU199801-199912

LT.BLUISH GRAY,TRIM1#

main67690-28210-B1iCXR10,20,TCR10,20..ATM..X199709-199712

main67690-28230-B1iCXR10,20,TCR10,20..ATM..X199804-199912

sub67690-28220

main67690-95D01-B4iCXR10,20..X;TCR10,20..ATM..X199304-199407

sub67690-95D01

sub67690-28060

main67690-95D01-B5iCXR11,21,TCR11,21..G199308-199608

BLUISH GRAY,TRIM1#

sub67690-95D01

sub67690-28060

main67690-95D01-B5iCXR10,20,TCR10,20..ATM..X199408-199412

sub67690-95D01

sub67690-28060

main67690-95D01-E3iCXR11,21,TCR11,21..G199308-199608

MI. GREIGE,TRIM4#

sub67690-95D01

sub67690-28060

67604BCLIP(FOR SLIDE DOOR TRIM BOARD)

main90467-07043-30iCXR1#,2#,TCR1#,2#..G,X199201-199308

LIGHT GREIGE,TRIM4#

sub90467-07043

main90467-07043-53iCXR1#,2#,TCR1#,2#199201-199308

GRAY,TRIM1#

sub90467-07043

main90467-07043-B0iCXR1#,2#,TCR1#,2#..AERAS,F,G,GLUX,X,XLUX199308-199912

GRAY,TRIM1#

sub90467-07043

main90467-07043-B3iCXR10,20,TCR10,20..ELU199801-199912

LT.BLUISH GRAY,TRIM1#

sub90467-07043

main90467-07043-E2iCXR1#,2#,TCR1#,2#..G,GLUX,X,XLUX199308-199608

GREIGE,TRIM4#

sub90467-07043

67645BBRACKET, SLIDE DOOR TRIM BASE

main67645-95D14iCXR1#,2#,TCR1#,2#199201-199912

FRONT & CENTER

main67645-95D16iCXR1#,2#,TCR1#,2#199201-199912

REAR

67663CCLIP(FOR DOOR FRAME GARNISH)

main90467-06011-01iCXR10,20,TCR1#,21..D,F,S199201-199912

BLACK,TRIM1#

sub90467-06011

sub71769-58010

main90467-06011-01iCXR1#,2#,TCR1#,2#..G,GLUX,X,XLUX199201-199608

BLACK,TRIM1#,4#

sub90467-06011

sub71769-58010

67664AGARNISH, DOOR FRAME, LH

main67664-95D01-03iCXR1#,2#,TCR1#,2#199201-199308

LIGHT GRAY,TRIM1#

sub67664-95D01

main67664-95D01-05iCXR1#,2#,TCR1#,2#..G,X199201-199308

LIGHT GREIGE,TRIM4#

sub67664-95D01

main67664-95D01-B0iCXR1#,2#,TCR1#,2#199801-199912

LT.GRAY,TRIM1#

sub67664-95D01

main67664-95D01-B8iCXR1#,2#,TCR1#,2#199308-199801

GRAY,TRIM1#

sub67664-95D01

main67664-95D01-L1iCXR1#,2#,TCR1#,2#..G,GLUX,X,XLUX199308-199608

GREIGE,TRIM4#

sub67664-95D01

67664BGARNISH, DOOR FRAME, UPPER LH

main67664-95D00-03iCXR1#,2#,TCR1#,2#199201-199308

LIGHT GRAY,TRIM1#

sub67664-95D00

main67664-95D00-05iCXR1#,2#,TCR1#,2#..G,X199201-199308

LIGHT GREIGE,TRIM4#

sub67664-95D00

main67664-95D00-B0iCXR1#,2#,TCR1#,2#199801-199912

LT.GRAY,TRIM1#

sub67664-95D00

main67664-95D00-B8iCXR1#,2#,TCR1#,2#199308-199801

GRAY,TRIM1#

sub67664-95D00

main67664-95D00-L1iCXR1#,2#,TCR1#,2#..G,GLUX,X,XLUX199308-199608

GREIGE,TRIM4#

sub67664-95D00

67668AGARNISH, SLIDE DOOR WINDOW, LH

main67668-95D00-03iCXR11,21,TCR11,21..G199201-199308

LIGHT GRAY,TRIM1#

sub67668-95D00

sub67668-95D01

main67668-95D00-05iCXR11,21,TCR11,21..G199201-199308

LIGHT GREIGE,TRIM4#

sub67668-95D00

sub67668-95D01

main67668-95D00-10iCXR11,21,TCR11,21199308-199801

GRAY,TRIM1#

sub67668-95D00

sub67668-95D01

main67668-95D00-41iCXR11,21,TCR11,21199308-199608

GREIGE,TRIM4#

sub67668-95D00

sub67668-95D01

main67668-95D00-B0iCXR1#,2#,TCR1#,2#..ELU,G199801-199912

LT. BLUISH GRAY,TRIM1#

sub67668-95D00

sub67668-95D01

main67668-95D01-03iCXR10,20,TCR1#,2#..D,F,S,X199201-199308

LIGHT GRAY,TRIM1#

sub67668-95D01

main67668-95D01-B1iCXR10,20,TCR10,20..AERAS,X,XLUX199801-199912

LT.GRAY,TRIM1#

sub67668-95D01

main67668-95D01-B8iCXR10,20,TCR10,20199308-199801

GRAY,TRIM1#

sub67668-95D01

main67668-95D01-E0iCXR10,20,TCR10,20..X,XLUX199201-199608

LIGHT GREIGE,TRIM4#

sub67668-95D01

67772FCAP, REAR DOOR TRIM RETAINER

main67772-95J02iCXR1#,2#,TCR1#,2#199201-199912

6792195500RETAINER, FRONT DOOR SCUFF PLATE

main67921-95500

9018905054

main90189-05054

9018906018

main90189-06018

9046804147

main90468-04147

9046805047

main90468-05047

9351016012

main93510-16012

9354015016

main93540-15016

17 parts on this diagram · 2 diagrams in section
