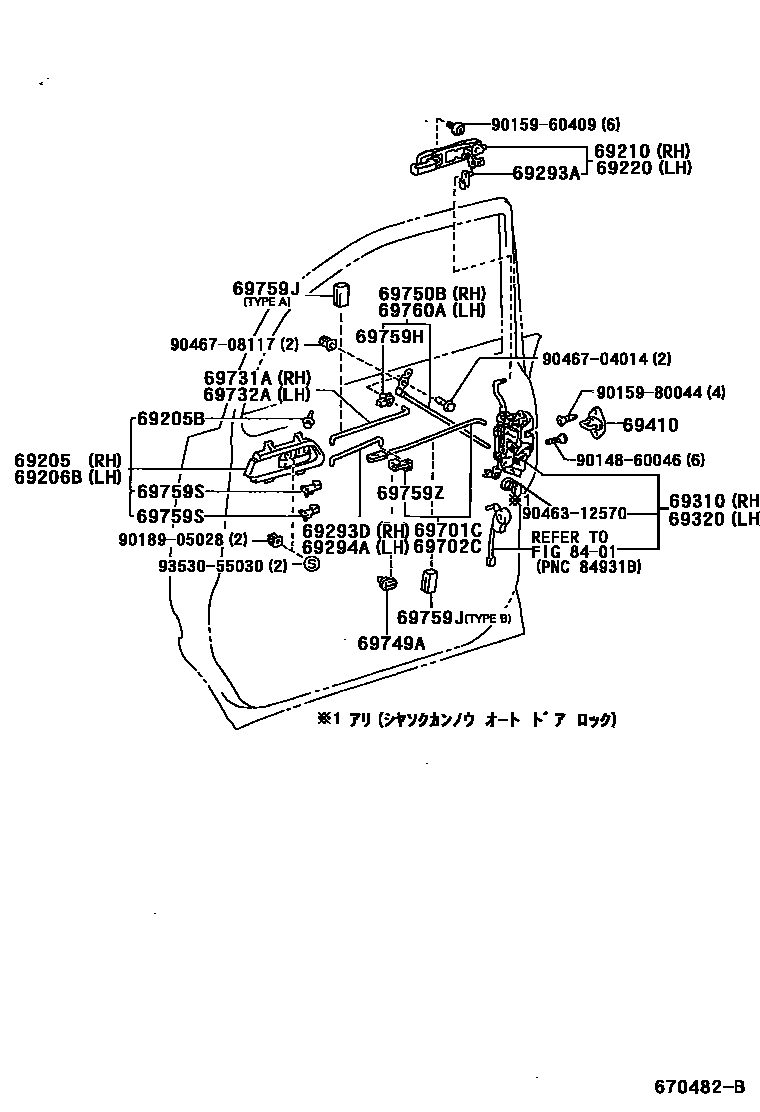

FRONT DOOR LOCK & HANDLE

69205HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH

main69205-28010iCXR1#,2#,TCR1#,2#199308-199912

main69205-28080iCXR1#,2#,TCR1#,2#199901

main69205-95D00iCXR1#,2#,TCR1#,2#199201-199308

69205BCUSHION(FOR FRONT DOOR INSIDE HANDLE)

main90541-04018iCXR1#,2#,TCR1#,2#199201-199912

69206BHANDLE SUB-ASSY, FRONT DOOR INSIDE, LH

main69206-28010iCXR1#,2#,TCR1#,2#199308-199912

main69206-28090iCXR1#,2#,TCR1#,2#199901

main69206-95D00iCXR1#,2#,TCR1#,2#199201-199308

69210HANDLE ASSY, FRONT DOOR, OUTSIDE RH

main69210-28020-A0iCXR10,20..X;TCR10,20..ATM..X199304-199307

sub69210-28020

main69210-28020-A1iCXR10,20,TCR10,20..ATM..X199312-199407

sub69210-28020

main69210-28020-A2iCXR10,20,TCR10,20..ATM..X199704-199708

sub69210-28020

main69210-28020-A2iTCR1#,2#..ELU,G,X,XLUX199801

sub69210-28020

main69210-28020-A2iCXR1#,2#,TCR1#,2#..ELU,G199801-199912

WHITE PM,042

sub69210-28020

main69210-28020-A3iCXR10,20,TCR10,20..ATM..X199709-199712

sub69210-28020

main69210-28020-A3iCXR10,20,TCR10,20..ATM..X199804-199912

sub69210-28020

main69210-28020-B0iCXR11,21,TCR11,21..G199201-199308

WARM GRRY OPAL,193

sub69210-28020

main69210-28020-B1iCXR11,21,TCR11,21199308-199801

WARM GRAY OPAL,193

sub69210-28020

main69210-28020-B2iCXR1#,2#,TCR1#,2#..ELU,G,XLUX199801

sub69210-28020

main69210-28020-B3iCXR1#,2#,TCR1#,2#..ELU,G199801-199912

SILVER ME,199

sub69210-28020

main69210-28020-B4iCXR10,20,TCR10,20..ATM..X199804-199912

sub69210-28020

main69210-28020-D0iCXR10,20..X;TCR10,20..ATM..X199304-199307

sub69210-28020

main69210-28020-D1iCXR11,21,TCR11,21..G199201-199308

DEEP RED MICA,3H8

sub69210-28020

main69210-28020-D2iCXR1#,2#,TCR1#,2#..ELU,G,GLUX199608-199912

SUPER RED MICA,3J7

sub69210-28020

main69210-28020-D2iCXR10,20,TCR10,20..ATM..X199312-199407

sub69210-28020

main69210-28020-D3iCXR11,21,TCR11,21199308-199608

DEEP RED MICA,3H8

sub69210-28020

main69210-28020-F0iCXR11,21,TCR11,21..G199201-199308

PALE YELLOW PEARE MI,573

sub69210-28020

main69210-28020-F1iCXR11,21,TCR11,21199501-199801

PL.YELLOW OP,574

sub69210-28020

main69210-28020-G2iCXR1#,2#,TCR1#,2#..ELU,G,GLUX199608-199912

GREEN ME.,6P9

sub69210-28020

main69210-28020-H0iCXR11,21,TCR11,21..G199201-199308

LIGHT TURQUOISE M.M,750

sub69210-28020

main69210-28020-H1iCXR11,21,TCR11,21199308-199608

LIGHT TURQUOISE M.M,750

sub69210-28020

main69210-28020-H2iCXR10,20,TCR10,20..ATM..X199312-199407

sub69210-28020

main69210-28020-H2iCXR11,21,TCR11,21199308-199801

DARK TEAL GREEN M.M,751

sub69210-28020

main69210-28020-H3iCXR1#,2#,TCR1#,2#..ELU,G199801-199912

DK.TURQUOISE MC.,760

sub69210-28020

main69210-28020-J2iCXR11,21,TCR11,21..G199201-199308

BLUEISH GRAY M,8H5

sub69210-28020

main69210-28020-J4iCXR11,21,TCR11,21199308-199501

BLUISH GRAY M,8H5

sub69210-28020

main69210-28020-J5iCXR1#,2#,TCR1#,2#..ELU,G,GLUX199501-199912

DK.BLUE M.M.,8K0

sub69210-28020

main69210-95D00iCXR10,20,TCR1#,2#..AERAS,D,F,S,X,XLUX199201-199912

69220HANDLE ASSY, FRONT DOOR OUTSIDE, LH

main69220-28020-A0iCXR10,20..X;TCR10,20..ATM..X199304-199307

sub69220-28020

main69220-28020-A1iCXR10,20,TCR10,20..ATM..X199312-199407

sub69220-28020

main69220-28020-A2iCXR1#,2#,TCR1#,2#..ELU,G199801-199912

WHITE PM,042

sub69220-28020

main69220-28020-A2iTCR1#,2#..ELU,G,X,XLUX199801

sub69220-28020

main69220-28020-A2iCXR10,20,TCR10,20..ATM..X199704-199708

sub69220-28020

main69220-28020-A3iCXR10,20,TCR10,20..ATM..X199709-199712

sub69220-28020

main69220-28020-A3iCXR10,20,TCR10,20..ATM..X199804-199912

sub69220-28020

main69220-28020-B0iCXR11,21,TCR11,21..G199201-199308

WARM GRRY OPAL,193

sub69220-28020

main69220-28020-B1iCXR11,21,TCR11,21199308-199801

WARM GRAY OPAL,193

sub69220-28020

main69220-28020-B2iCXR1#,2#,TCR1#,2#..ELU,G,XLUX199801

sub69220-28020

main69220-28020-B3iCXR1#,2#,TCR1#,2#..ELU,G199801-199912

SILVER ME,199

sub69220-28020

main69220-28020-B4iCXR10,20,TCR10,20..ATM..X199804-199912

sub69220-28020

main69220-28020-D0iCXR10,20..X;TCR10,20..ATM..X199304-199307

sub69220-28020

main69220-28020-D1iCXR11,21,TCR11,21..G199201-199308

DEEP RED MICA,3H8

sub69220-28020

main69220-28020-D2iCXR10,20,TCR10,20..ATM..X199312-199407

sub69220-28020

main69220-28020-D2iCXR1#,2#,TCR1#,2#..ELU,G,GLUX199608-199912

SUPER RED MICA,3J7

sub69220-28020

main69220-28020-D3iCXR11,21,TCR11,21199308-199608

DEEP RED MICA,3H8

sub69220-28020

main69220-28020-F0iCXR11,21,TCR11,21..G199201-199308

PALE YELLOW PEARE MI,573

sub69220-28020

main69220-28020-F1iCXR11,21,TCR11,21199501-199801

PL.YELLOW OP,574

sub69220-28020

main69220-28020-G2iCXR1#,2#,TCR1#,2#..ELU,G,GLUX199608-199912

GREEN ME.,6P9

sub69220-28020

main69220-28020-H0iCXR11,21,TCR11,21..G199201-199308

LIGHT TURQUOISE M.M,750

sub69220-28020

main69220-28020-H1iCXR11,21,TCR11,21199308-199608

LIGHT TURQUOISE M.M,750

sub69220-28020

main69220-28020-H2iCXR10,20,TCR10,20..ATM..X199312-199407

sub69220-28020

main69220-28020-H2iCXR11,21,TCR11,21199308-199801

DARK TEAL GREEN M.M,751

sub69220-28020

main69220-28020-H3iCXR1#,2#,TCR1#,2#..ELU,G199801-199912

DK.TURQUOISE MC.,760

sub69220-28020

main69220-28020-J2iCXR11,21,TCR11,21..G199201-199308

BLUEISH GRAY M,8H5

sub69220-28020

main69220-28020-J4iCXR11,21,TCR11,21199308-199501

BLUISH GRAY M,8H5

sub69220-28020

main69220-28020-J5iCXR1#,2#,TCR1#,2#..ELU,G,GLUX199501-199912

DK.BLUE M.M.,8K0

sub69220-28020

main69220-95D00iCXR10,20,TCR1#,2#..AERAS,D,F,S,X,XLUX199201-199912

69293ASNAP, FRONT DOOR OUTSIDE HANDLE

main69293-12050iCXR1#,2#,TCR1#,2#199201-199912

main69293-12060iCXR1#,2#,TCR1#,2#199201-199912

69293DLINK, DOOR INSIDE HANDLE CONNECTING, RH

main69293-95D00iCXR1#,2#,TCR1#,2#199201-199912

69294ALINK, DOOR INSIDE HANDLE CONNECTING, LH

main69294-95D00iCXR1#,2#,TCR1#,2#199201-199912

69310LOCK ASSY, FRONT DOOR, RH

main69030-28010iCXR1#,2#,TCR1#,2#..G,S,X199201-199308

main69030-28011iCXR1#,2#,TCR1#,2#..AERAS,G,GLUX,X,XLUX199308-199912

main69030-28031iCXR11,21,TCR11,21199308-199501

main69030-28031iCXR10,20,TCR10,20..ELU199801-199912

main69310-28030iCXR10,20,TCR10..D,F199201-199501

69320LOCK ASSY, FRONT DOOR, LH

main69040-28010iCXR1#,2#,TCR1#,2#..G,S,X199201-199308

main69040-28031iCXR11,21,TCR11,21199308-199501

main69040-28100iCXR1#,2#,TCR1#,2#..AERAS,ELU,G,GLUX,X,XLUX199308-199912

main69320-28030iCXR10,20,TCR10..D,F199201-199501

69410PLATE ASSY, FRONT DOOR LOCK STRIKER

main69410-95D00iCXR1#,2#,TCR1#,2#199201-199912

sub69410-20070

69701CLINK SUB-ASSY, FRONT DOOR LOCK CONTROL, RH

main69701-95D00iCXR1#,2#,TCR1#,2#199201-199912

69702CLINK SUB-ASSY, FRONT DOOR LOCK CONTROL, LH

main69702-95D00iCXR1#,2#,TCR1#,2#199201-199912

69731ALINK, FRONT DOOR INSIDE LOCKING, NO.1 RH

main69731-95D00iCXR1#,2#,TCR1#,2#199201-199912

69732ALINK, FRONT DOOR INSIDE LOCKING, NO.1 LH

main69732-95D00iCXR1#,2#,TCR1#,2#199201-199912

69749ACLAMP, FRONT DOOR LOCK LINK, NO.1

main69749-50010iCXR1#,2#,TCR1#,2#199201-199912

69750BLINK ASSY, FRONT DOOR INSIDE LOCKING, RH

main69750-95D00iCXR1#,2#,TCR1#,2#199201-199912

69759HSNAP, DOOR LOCK CONTROL LINK, NO.2

main69759-20020iCXR1#,2#,TCR1#,2#199201-199912

main69759-20030iCXR1#,2#,TCR1#,2#199201-199912

69759JSILENCER, DOOR LOCK LINK

main69759-28010iCXR1#,2#,TCR1#,2#199201-199403

main69759-28010iCXR1#,2#,TCR1#,2#199403-199912

main69759-95500iCXR1#,2#,TCR1#,2#199403-199912

69759SSNAP, FRONT DOOR INSIDE HANDLE

main69759-14050iCXR1#,2#,TCR1#,2#199201-199912

LH-HANDLE

main69759-20060iCXR1#,2#,TCR1#,2#199201-199912

LH-KNOB

main69759-20070iCXR1#,2#,TCR1#,2#199201-199912

RH-KNOB

main69759-24070iCXR1#,2#,TCR1#,2#199201-199912

RH-HANDLE

69759ZSNAP, DOOR LOCK CONTROL LINK

main69759-24030iCXR1#,2#,TCR1#,2#199201-199912

main69759-24040iCXR1#,2#,TCR1#,2#199201-199912

69760ALINK ASSY, FRONT DOOR INSIDE LOCKING, LH

main69760-95D00iCXR1#,2#,TCR1#,2#199201-199912

8401

9014860046

main90148-60046

9015960409

main90159-60409

9015980044

main90159-80044

9018905028

main90189-05028

9046312570

main90463-12570

9046704014

main90467-04014

9046708117

main90467-08117

9353055030

main93530-55030

31 parts on this diagram · 1 diagram in section
