FLOOR INSULATOR

58042INSULATOR SUB-ASSY, FRONT FLOOR HEAT, NO.2

main58042-28010iTCR1#,2#..ATM199501-199912

main58042-28020iTCR10,20..MTM199501-199608

58321BINSULATOR, REAR FLOOR HEAT, NO.1

main58321-95D02iTCR1#,2#199201-199912

58322BINSULATOR, REAR FLOOR HEAT, NO.2

main58322-28020iTCR1#,2#199201-199912

58323CINSULATOR, REAR FLOOR HEAT, NO.3

main58323-28010iCXR1#,2#,TCR1#,2#199201-199912

9162140814

main91621-40814

9163140814

main91631-40814

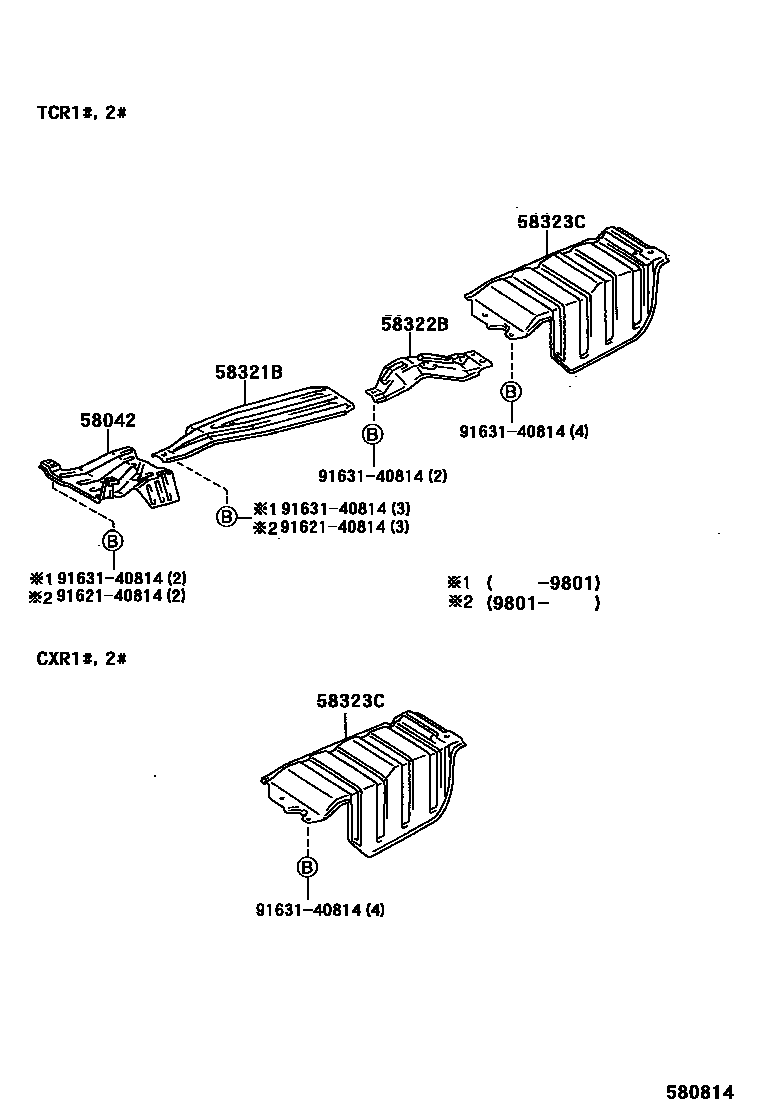

6 parts on this diagram · 1 diagram in section
