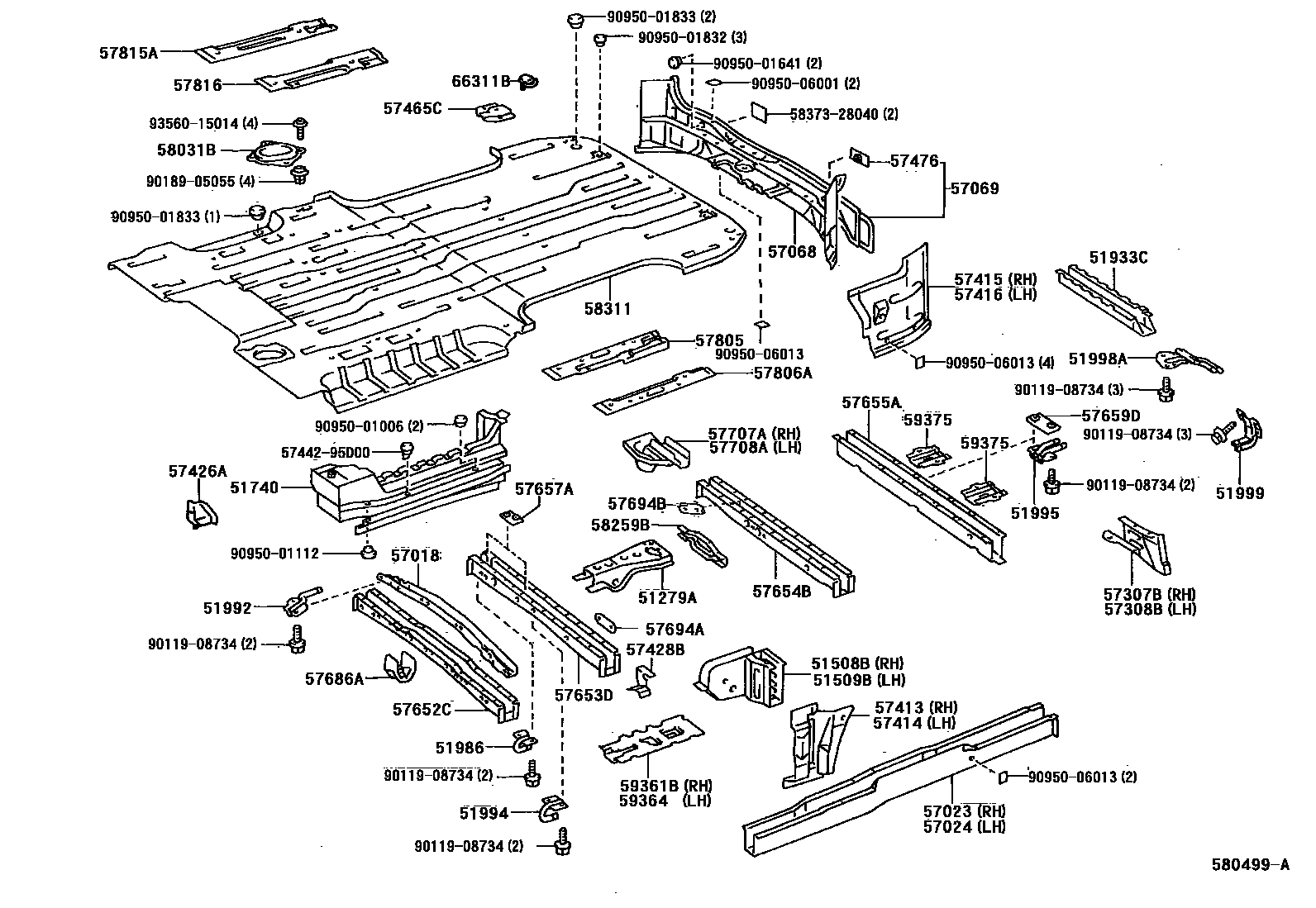

REAR FLOOR PANEL & REAR FLOOR MEMBER

0001 1 0002 1

51279ABRACKET, DIFFERENTIAL SUPPORT

main51279-95D00iCXR11,21,TCR11,21¥6,600199201-199912

51508BBRACKET SUB-ASSY, LOWER CONTROL LINK, RH

main51508-95D02iCXR11,21,TCR11,21¥11,200199201-199912

main51508-95D05iCXR10,20,TCR10,20¥15,500199201-199912

51509BBRACKET SUB-ASSY, LOWER CONTROL LINK, LH

main51509-95D02iCXR11,21,TCR11,21¥11,200199201-199912

main51509-95D04iCXR10,20,TCR10,20¥15,500199201-199912

51740STEP ASSY, REAR FLOOR, LH

main51740-28010iCXR11,21,TCR11,21¥9,300199312-199912

main51740-28020iCXR10,20,TCR10,20¥9,300199312-199912

main51740-95D00iCXR11,21,TCR11,21¥9,300199201-199312

sub51740-28010¥9,300

main51740-95D01iCXR10,20,TCR10,20¥9,300199201-199312

sub51740-28020¥9,300

51933CSTOPPER, SPARE WHEEL

main51933-28100iCXR1#,2#,TCR1#,2#¥5,500199201-199912

51986HANGER, EXHAUST PIPE SUPPORT, NO.3

main51986-28010iCXR1#,2#,TCR1#,2#¥1,440199201-199912

51992HANGER, EXHAUST PIPE SUPPORT, NO.2

main51992-28010iCXR1#,2#¥1,440199201-199908

main51992-28020iTCR1#,2#¥1,440199501-199912

51994HANGER, EXHAUST PIPE, NO.4

main51994-28020iCXR1#,2#,TCR1#,2#¥1,430199201-199501

main51994-28040iCXR1#,2#,TCR1#,2#¥1,820199501-199912

51995HANGER, EXHAUST PIPE, NO.5

main51995-28020iCXR10,20,TCR10,20¥2,650199201-199912

main51995-28030iCXR11,21,TCR11,21¥1,600199201-199912

51998AHANGER, EXHAUST PIPE SUPPORT, NO.6

main51906-28010iCXR11,21,TCR11,21¥2,860199201-199912

main51998-28010iCXR10,20,TCR10,20¥2,650199201-199912

51999HANGER, EXHAUST PIPE SUPPORT, NO.7

main51999-28010iCXR1#,2#,TCR1#,2#¥2,100199201-199912

57018BRACKET SUB-ASSY, CROSSMEMBER FLOOR, NO.1

main57018-28010iCXR1#,2#,TCR1#,2#¥8,200199201-199912

57023MEMBER SUB-ASSY, REAR SIDE, RH

main57023-28120iCXR10,20,TCR10,20¥44,500199201-199912

main57023-28130iCXR11,21,TCR11,21¥48,800199201-199912

57024MEMBER SUB-ASSY, REAR SIDE, LH

main57024-28100iCXR10,20,TCR10,20¥46,000199201-199912

main57024-28110iCXR11,21,TCR11,21¥48,800199201-199912

57068MEMBER SUB-ASSY, REAR FLOOR REAR CROSS, INNER

main57068-28050iCXR1#,2#,TCR1#,2#¥20,000199201-199912

57069MEMBER SUB-ASSY, REAR FLOOR REAR CROSS, OUTER

main57069-28010iCXR1#,2#,TCR1#,2#¥9,800199201-199912

57307BOUTRIGGER SUB-ASSY, NO.4 RH

main57307-95D00iCXR1#,2#,TCR1#,2#¥2,350199201-199912

57308BOUTRIGGER SUB-ASSY, NO.4 LH

main57308-95D00iCXR1#,2#,TCR1#,2#¥2,320199201-199912

57413RAIL, FLOOR SIDE, CENTER RH

main57413-95D03iCXR1#,2#,TCR1#,2#¥3,710199201-199912

57414RAIL, FLOOR SIDE, CENTER LH

main57414-95D02iCXR1#,2#,TCR1#,2#¥3,910199201-199912

57415RAIL, FLOOR SIDE, REAR RH

main57047-95D00iCXR1#,2#,TCR1#,2#¥6,200199201-199912

57416RAIL, FLOOR SIDE, REAR LH

main57048-95D00iCXR1#,2#,TCR1#,2#¥6,200199201-199912

57426APLATE, REAR STEP, FRONT LH

main57426-95D00iCXR1#,2#,TCR1#,2#¥1,080199201-199912

57428BPLATE, REAR STEP, REAR LH

main57428-95D00iCXR1#,2#,TCR1#,2#¥1,350199201-199912

57465CRETAINER, BELT ANCHOR, NO.2

main57465-95D01iCXR10,20,TCR11,21..D,S¥1,740199201-199308

57476PLATE, FRONT FLOOR CROSSMEMBER, LH

main57476-95D00iCXR1#,2#,TCR1#,2#¥350199201-199912

57652CMEMBER, REAR FLOOR CROSS, NO.1

main57652-28030iCXR1#,2#,TCR1#,2#¥21,100199201-199912

57653DMEMBER, REAR FLOOR CROSS, NO.2

main57653-28020iCXR1#,2#,TCR1#,2#¥21,100199201-199912

57654BMEMBER, REAR FLOOR CROSS, NO.3

main57654-28010iCXR1#,2#,TCR1#,2#¥18,700199201-199912

57655AMEMBER, REAR FLOOR CROSS, NO.4

main57655-28020iCXR10,20,TCR10,20¥15,800199201-199912

main57655-28030iCXR11,21,TCR11,21¥15,800199201-199912

57657ABRACKET, EXHAUST PIPE MOUNTING, NO.2

main57657-28020iCXR1#,2#,TCR1#,2#¥640199201-199912

57659DBRACKET, EXHAUST PIPE MOUNTING, NO.4

main57659-28030iCXR11,21,TCR11,21¥640199201-199912

57686ABRACKET, FUEL TANK MOUNTING, REAR RH

main57686-95D00iCXR1#,2#,TCR1#,2#¥1,940199201-199912

57694AREINFORCEMENT, FUEL TANK SUPPORT, NO.2

main57694-95D00iCXR1#,2#,TCR1#,2#¥620199201-199912

57694BREINFORCEMENT, FUEL TANK SUPPORT, NO.3

main57694-95D00iCXR11,21,TCR11,21¥620199201-199912

57707APLATE SUB-ASSY, REAR SPRING, RH

main57707-28020iCXR11,21,TCR11,21¥8,100199201-199912

57708APLATE SUB-ASSY, REAR SPRING, LH

main57708-95D02iCXR11,21,TCR11,21¥8,100199201-199912

57805REINFORCEMENT SUB-ASSY, BELT ANCHOR

main57805-28010iCXR10,20,TCR1#,2#..AERAS,D,F,S,X,XLUX¥5,500199201-199609

main57805-28011iCXR10,20,TCR10,20¥5,500199609-199912

57806AREINFORCE SUB-ASSY, NO.1 SEAT LEG, REAR NO.2

main57806-28030iCXR10,20,TCR1#,2#..AERAS,D,F,S,X,XLUX¥5,500199201-199609

main57806-28031iCXR10,20,TCR10,20¥5,500199609-199912

57815AREINFORCEMENT, BELT ANCHOR, RH

main57807-28010iCXR10,20,TCR10,20..AERAS,ELU,F,X,XLUX¥6,800199201-199912

main57815-28030iCXR11,21,TCR11,21..G,GLUX¥5,500199201-199912

main57815-28030iCXR10,20,TCR10,20..ATM..(X,XLUX)¥5,500199501-199912

57816REINFORCE SUB-ASSY, BELT ANCHOR, NO.2 LH

main57808-28070iCXR11,21,TCR11,21..G¥5,500199201-199912

58031BCOVER SUB-ASSY, REAR FLOOR SERVICE HOLE

main58031-95D00iCXR1#,2#,TCR1#,2#¥2,150199201-199912

58259BREINFORCEMENT, PARKING BRAKE CABLE, NO.1

main58259-95D00iCXR10,20,TCR10,20¥1,650199201-199912

main58259-95D01iCXR11,21,TCR11,21¥1,080199201-199912

58311PAN, REAR FLOOR

main58311-28150iCXR10,20,TCR10,20..F,X¥74,000199201-199308

sub58311-28540¥73,700

main58311-28160iCXR10,20,TCR11,21..D,S¥74,000199201-199308

sub58311-28210¥74,000

sub67891-26020¥190

main58311-28170iCXR11,21,TCR11,21..G¥74,000199201-199308

sub58311-28560¥73,700

main58311-28200iCXR10,20..F,X¥74,000199201-199308

sub58311-28570¥73,700

main58311-28210iCXR10,20..D¥74,000199201-199308

main58311-28220iCXR11,21¥74,000199201-199308

sub58311-28590¥73,700

main58311-28540iCXR10,20,TCR10,20¥73,700199308-199411

sub58311-28541¥74,000

sub90469-05004¥190

main58311-28541iCXR10,20,TCR10,20¥74,000199411-199801

sub58311-28571¥74,000

sub67891-26020¥190

main58311-28542iCXR10,20,TCR10,20¥74,100199801-199912

sub58311-28572¥74,100

sub67891-26020¥190

main58311-28560iCXR11,21,TCR11,21¥73,700199308-199411

sub58311-28561¥74,000

sub90469-05004¥190

main58311-28561iCXR11,21,TCR11,21¥74,000199411-199801

sub58311-28591¥74,000

sub67891-26020¥190

main58311-28561iCXR10,20,TCR10,20..ATM..(X,XLUX)¥74,000199501-199801

sub58311-28591¥74,000

sub67891-26020¥190

main58311-28562iCXR1#,2#,TCR1#,2#..ATM..(G,X,XLUX)¥74,100199801-199912

sub58311-28592¥74,100

sub67891-26020¥190

main58311-28570iCXR10,20¥73,700199308-199411

sub58311-28571¥74,000

sub90469-05004¥190

main58311-28571iCXR10,20¥74,000199411-199801

sub58311-28572¥74,100

sub90950-01725¥260

main58311-28572iCXR10,20,TCR10,20¥74,100199801-199912

main58311-28590iCXR11,21¥73,700199308-199411

sub58311-28591¥74,000

sub90469-05004¥190

main58311-28591iCXR11,21,TCR11,21¥74,000199411-199801

sub58311-28592¥74,100

sub90950-01725¥260

main58311-28591iCXR10,20..ATM¥74,000199501-199801

sub58311-28592¥74,100

sub90950-01725¥260

main58311-28592iCXR1#,2#,TCR1#,2#..ATM..(G,X,XLUX)¥74,100199801-199912

59361BRETAINER, REAR SEAT, NO.1 A

main59361-28010iCXR1#,2#,TCR1#,2#¥6,600199201-199912

59364RETAINER, REAR SEAT, NO.1 D

main59364-28010iCXR1#,2#,TCR1#,2#¥6,600199201-199912

59375RETAINER, REAR SEAT, NO.4

main59375-95D00iCXR11,21,TCR11,21¥2,410199201-199912

main59375-95D01iCXR10,20,TCR10,20¥2,090199201-199912

66311BHOOK, ROPE

main66310-28010iCXR1#,2#,TCR1#,2#¥1,610199801-199912

5744295D00PLUG, STEP PANEL HOLE

main57442-95D00¥520

5837328040SEAL, BACK FRAME, LOWER

main58373-28040¥620

9011908734

main90119-08734¥140

9018905055

main90189-05055¥80

9095001006

main90950-01006¥260

9095001112

main90950-01112¥190

9095001641

main90950-01641¥200

9095001832

main90950-01832¥110

9095001833

main90950-01833¥120

9095006001

main90950-06001¥170

9095006013

main90950-06013¥120

9356015014

main93560-15014¥70

60 parts on this diagram · 2 diagrams in section
