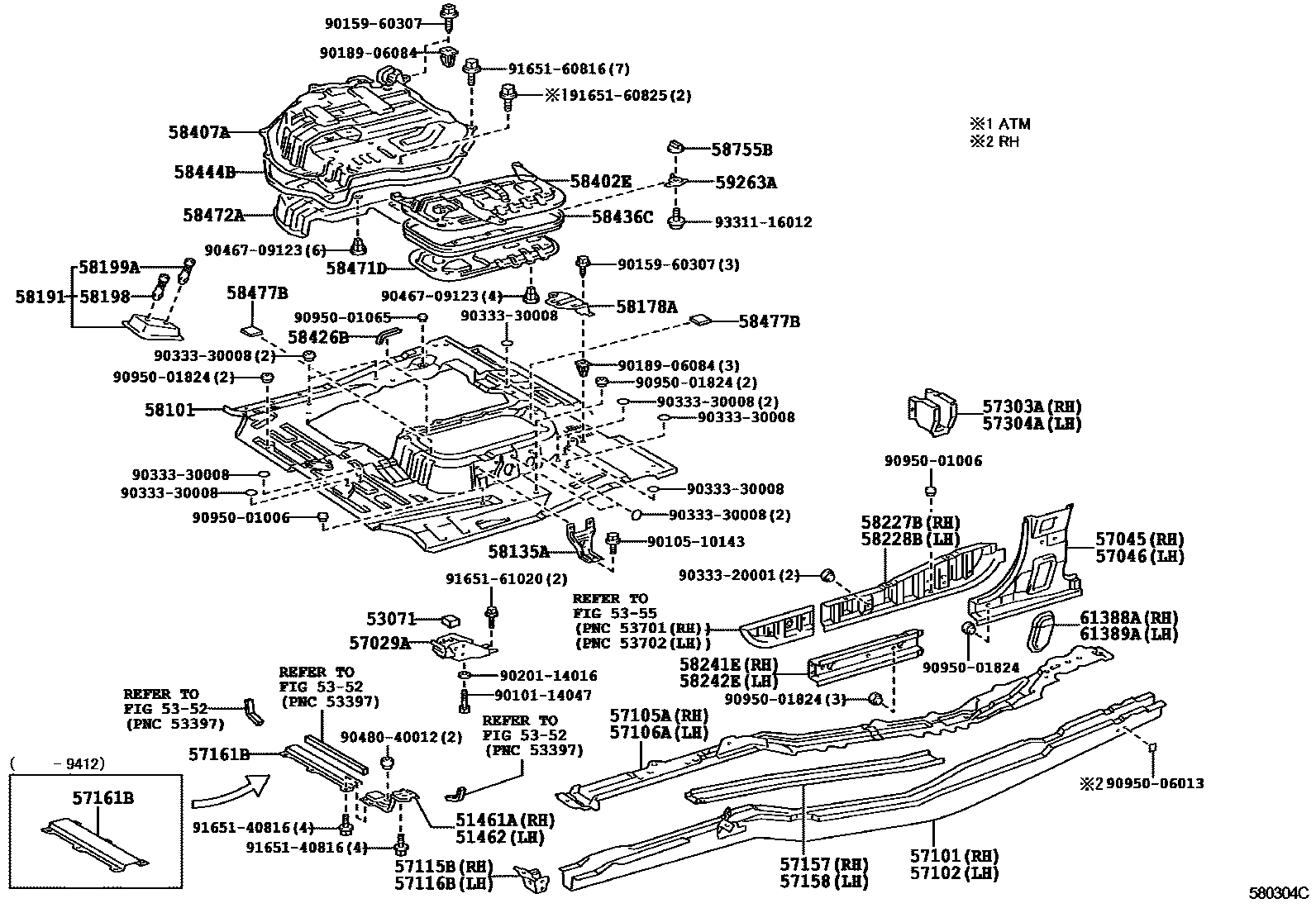

FRONT FLOOR PANEL & FRONT FLOOR MEMBER

0001 1 0002 1

51461ABRACKET, RADIATOR MOUNTING, LOWER RH

main51461-28020iCXR1#,2#,TCR1#,2#199201-199412

sub51461-28021

sub57161-28020

main51461-28021iCXR1#,2#,TCR1#,2#199412-199912

51462BRACKET, RADIATOR MOUNTING, LOWER LH

main51462-28010iCXR1#,2#,TCR1#,2#199201-199412

sub51462-28011

sub57161-28020

main51462-28011iCXR1#,2#,TCR1#,2#199412-199912

53071SHUTTER SUB-ASSY, HOT AIR, UPPER

main53735-28010iCXR1#,2#,TCR1#,2#199201-199608

main53735-28011iCXR1#,2#,TCR1#,2#199608-199912

5352

5355

57029ABLOCK SUB-ASSY, FRONT CROSSMEMBER

main57029-28010iCXR1#,2#,TCR1#,2#199201-199601

sub57029-28011

main57029-28011iCXR1#,2#,TCR1#,2#199601-199608

main57029-28030iCXR1#,2#,TCR1#,2#199608-199912

57045PLATE SUB-ASSY, FLOOR SIDE RAIL, RH

main57045-28100iCXR1#,2#,TCR1#,2#199604-199912

main57045-95D01iCXR1#,2#,TCR1#,2#199201-199604

57046PLATE SUB-ASSY, FLOOR SIDE RAIL, LH

main57046-28130iCXR1#,2#,TCR1#,2#199604-199912

main57046-95D01iCXR1#,2#,TCR1#,2#199201-199604

57101MEMBER SUB-ASSY, FRONT SIDE, RH

main57101-28140iCXR1#,2#,TCR1#,2#199201-199608

main57101-28141iCXR1#,2#..ATM199402-199501

sub57101-28140

main57101-28142iCXR1#,2#..ATM199608-199908

main57101-28510iCXR10,20..MTM199402-199501

sub57101-28140

main57101-28511iCXR10,20..MTM199608-199908

sub57101-28142

main57101-28520iTCR1#,2#..ATM199402-199501

sub57101-28140

main57101-28521iTCR1#,2#199608-199912

57102MEMBER SUB-ASSY, FRONT SIDE, LH

main57102-28110iCXR1#,2#,TCR1#,2#199201-199608

main57102-28111iCXR1#,2#..ATM199402-199501

sub57102-28110

main57102-28112iCXR1#,2#..ATM199608-199801

sub57102-28113

sub90179-08132

main57102-28113iCXR1#,2#..ATM199801-199908

sub57102-28352

main57102-28350iCXR10,20..MTM199402-199501

sub57102-28110

main57102-28351iCXR10,20..MTM199608-199801

sub57102-28352

sub90179-08132

main57102-28352iCXR10,20..MTM199801-199908

main57102-28360iTCR1#,2#..ATM199402-199501

sub57102-28110

main57102-28361iTCR1#,2#199608-199801

sub57102-28362

sub90179-08132

main57102-28362iTCR1#,2#199801-199912

57105APLATE SUB-ASSY, FRONT SIDE MEMBER, RH

main57105-28010iCXR1#,2#,TCR1#,2#199201-199308

main57105-28020iCXR1#,2#,TCR1#,2#199201-199308

sub57105-28010

main57105-28100iCXR1#,2#,TCR1#,2#199308-199608

sub57105-28110

main57105-28110iCXR1#,2#,TCR1#,2#199308-199608

main57105-28110iCXR1#,2#,TCR1#,2#199608-199912

57106APLATE SUB-ASSY, FRONT SIDE MEMBER, LH

main57106-28010iCXR1#,2#,TCR1#,2#199608-199912

main57106-28010iCXR1#,2#,TCR1#,2#199201-199608

main57106-28020iCXR1#,2#,TCR1#,2#199201-199608

sub57106-28010

57115BPLATE, FRONT SIDE MEMBER, NO.1 RH

main57016-28020iCXR1#,2#,TCR1#,2#199201-199501

main57016-28021iCXR1#,2#,TCR1#,2#199501-199608

main57016-28050iCXR1#,2#,TCR1#,2#199201-199501

main57016-28051iCXR1#,2#,TCR1#,2#199501-199608

main57016-28052iCXR1#,2#,TCR1#,2#199608-199912

57116BPLATE, FRONT SIDE MEMBER, NO.1 LH

main57017-28020iCXR1#,2#,TCR1#,2#199201-199501

main57017-28021iCXR1#,2#,TCR1#,2#199501-199608

main57017-28050iCXR1#,2#,TCR1#,2#199201-199501

main57017-28051iCXR1#,2#,TCR1#,2#199501-199608

main57017-28052iCXR1#,2#,TCR1#,2#199608-199912

57157REINFORCEMENT, FRONT SIDE MEMBER, NO.4 RH

main57033-28010iCXR1#,2#,TCR1#,2#199801-199912

main57157-28020iCXR1#,2#,TCR1#,2#199201-199801

57158REINFORCEMENT, FRONT SIDE MEMBER, NO.4 LH

main57034-28020iCXR1#,2#,TCR1#,2#199801-199912

main57158-95D00iCXR1#,2#,TCR1#,2#199201-199801

57161BMEMBER, FRONT CROSS, FRONT

main57161-28020iCXR1#,2#,TCR1#,2#199201-199912

57303AOUTRIGGER SUB-ASSY, NO.2 RH

main57303-28010iCXR1#,2#,TCR1#,2#199201-199809

sub57303-28011

sub91651-40816

main57303-28011iCXR1#,2#,TCR1#,2#199809-199912

57304AOUTRIGGER SUB-ASSY, NO.2 LH

main57304-28010iCXR1#,2#,TCR1#,2#199809-199912

main57304-95D00iCXR1#,2#,TCR1#,2#199201-199809

sub57304-28010

sub91651-40816

58101PAN SUB-ASSY, FRONT FLOOR

main58099-28170iTCR1#,2#199608-199912

sub58099-28200

sub90333-25001

sub90333-40001

main58099-28180iCXR1#,2#..ATM199608-199908

sub58099-28210

sub90333-25001

sub90333-40001

main58099-28190iCXR10,20..MTM199608-199908

main58099-28200iTCR11,21199608-199912

main58099-28210iCXR11,21199608-199908

main58101-28380iTCR1#,2#199201-199308

sub58101-28381

sub90333-25003

main58101-28390iTCR1#,2#..ATM199201-199608

sub58101-28391

sub90333-25003

main58101-28400iTCR10,2#..MTM199201-199501

sub58101-28401

sub90333-25003

main58101-28420iCXR1#,2#199201-199308

sub58101-2J400

sub90333-30002

main58101-28440iCXR1#,2#..F,G,X199201-199308

sub58101-2J320

main58101-28770iTCR1#,2#199201-199608

sub58101-28771

sub90333-25003

main58101-28790iCXR1#,2#199201-199308

sub58101-2J340

main58101-28810iTCR1#,2#199201-199608

sub58101-28811

sub90333-25003

main58101-28830iCXR1#,2#..F,G,X199201-199308

sub58101-2J360

main58101-2J310iCXR11,21199308-199608

sub58101-2J311

sub90333-25003

main58101-2J320iCXR10,20..MTM199308-199501

sub58101-2J321

sub90333-25003

main58101-2J330iCXR1#,2#..ATM199308-199608

sub58101-2J331

sub90333-25003

main58101-2J340iCXR10,20..MTM199308-199608

sub58101-2J341

sub90333-25003

main58101-2J350iCXR1#,2#..ATM199308-199608

sub58101-2J351

sub90333-25003

main58101-2J360iCXR10,20..MTM199308-199501

sub58101-2J361

sub90333-25003

main58101-2J370iTCR1#,2#..ATM199308-199608

sub58101-2J371

sub90333-25003

main58101-2J380iTCR10,20..MTM199308-199608

sub58101-2J381

sub90333-25003

main58101-2J390iCXR1#,2#..ATM199308-199608

sub58101-2J391

sub90333-25003

main58101-2J400iCXR10,20..MTM199308-199608

sub58101-2J401

sub90333-25003

58135APANEL, FRONT FLOOR HOUSING, FRONT RH

main58135-28020iCXR1#,2#,TCR1#,2#199201-199608

main58135-28030iCXR1#,2#,TCR1#,2#199608-199912

58178AEXTENSION, FRONT FLOOR PANEL, LH

main58178-28010iCXR1#,2#,TCR1#,2#199201-199912

58191FOOTREST, FRONT FLOOR

main58191-95D01iCXR1#,2#,TCR1#,2#..AERAS,ELU,G,GLUX,S,X,XLUX199201-199912

58198CLIP, FOOTREST

main58198-95D00iCXR1#,2#,TCR1#,2#..AERAS,ELU,G,GLUX,S,X,XLUX199201-199912

58199ACLIP, FOOTREST, NO.2

main58199-95D00iCXR1#,2#,TCR1#,2#..AERAS,ELU,G,GLUX,S,X,XLUX199201-199912

58227BPLATE, FRONT FLOOR PANEL SIDE, RH

main58227-95D00iCXR1#,2#,TCR1#,2#199201-199912

58228BPLATE, FRONT FLOOR PANEL SIDE, LH

main58228-95D02iCXR1#,2#,TCR1#,2#199201-199912

58241EPANEL, FLOOR SIDE, FRONT RH

main58241-95D00iCXR1#,2#,TCR1#,2#199201-199912

58242EPANEL, FLOOR SIDE, FRONT LH

main58242-95D00iCXR1#,2#,TCR1#,2#199201-199912

58402ECOVER SUB-ASSY, ENGINE SERVICE HOLE, LH

main58402-28020iTCR1#,2#199201-199912

main58402-28030iCXR1#,2#199201-199908

58407ACOVER SUB-ASSY, ENGINE SERVICE HOLE SUB

main58407-28070iCXR1#,2#199201-199308

main58407-28080iTCR1#,2#..ATM199201-199308

sub58407-28220

main58407-28090iTCR10,2#..MTM199201-199308

sub58407-28230

main58407-28210iCXR1#,2#199308-199608

main58407-28220iTCR1#,2#..ATM199308-199608

main58407-28230iTCR10,20..MTM199308-199608

main58407-28370iCXR1#,2#199608-199908

main58407-28400iTCR1#,2#199608-199912

58426BPROTECTOR, ENGINE SUB COVER

main58426-28010iCXR1#,2#,TCR1#,2#199201-199912

sub58426-28020

58436CPACKING, ENGINE SERVICE HOLE COVER, LH

main58436-28040iCXR1#,2#,TCR1#,2#199201-199912

58444BPACKING, ENGINE SUB COVER

main58444-28010iTCR1#,2#199201-199912

main58444-28020iCXR1#,2#199201-199908

sub58444-28010

58471DSILENCER, ENGINE MAIN COVER

main58471-28030iCXR1#,2#199201-199908

main58471-28090iTCR1#,2#199201-199912

58472ASILENCER, ENGINE SUB COVER

main58472-28010iTCR1#,2#199201-199611

sub58472-28011

main58472-28011iTCR1#,2#199611-199912

main58472-28020iCXR1#,2#199201-199308

main58472-28060iCXR1#,2#199308-199908

58477BPACKING, ENGINE SERVICE HOLE COVER CATCH RETAINER

main58477-28010iCXR1#,2#199201-199912

58755BHANDLE, ENGINE SERVICE COVER CATCH

main58755-95D00iCXR1#,2#,TCR1#,2#199201-199912

59263HOOK, ENGINE COVER LOCK

main59263-95D00iCXR1#,2#199201-199608

59263AHOOK, ENGINE COVER LOCK

main59263-95D00iCXR1#,2#,TCR1#,2#199201-199912

61388APLATE, CENTER BODY PILLAR END, RH

main61305-28010iCXR1#,2#,TCR1#,2#199201-199912

61389APLATE, CENTER BODY PILLAR END, LH

main61306-28010iCXR1#,2#,TCR1#,2#199201-199912

9010114047

main90101-14047

9010510143

main90105-10143

9015960307

main90159-60307

9018906084

main90189-06084

9020114016

main90201-14016

9033320001

main90333-20001

9033330008

main90333-30008

9046709123

main90467-09123

9048040012

main90480-40012

9095001006

main90950-01006

9095001065

main90950-01065

9095001824

main90950-01824

9095006013

main90950-06013

9165140816

main91651-40816

9165160816

main91651-60816

9165160825

main91651-60825

9165161020

main91651-61020

9331116012

main93311-16012

60 parts on this diagram · 2 diagrams in section
