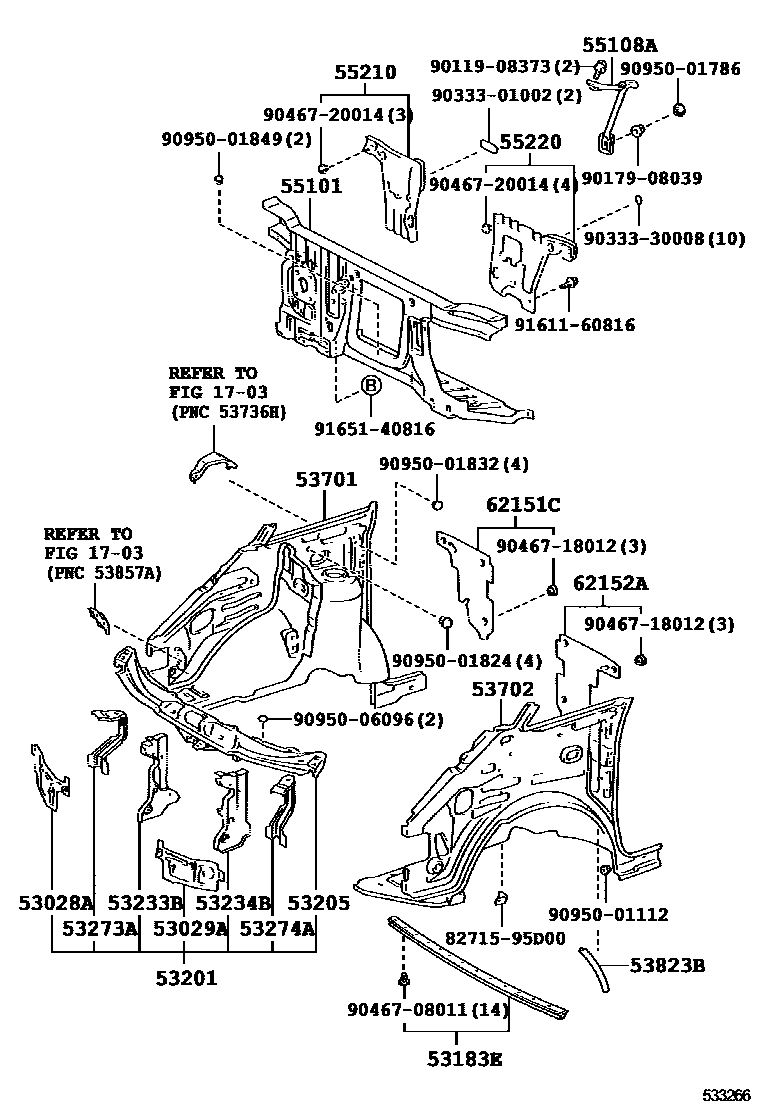

FRONT FENDER APRON & DASH PANEL

0001 1 0002 1

1703

53028ASUPPORT SUB-ASSY, RADIATOR, LOWER RH

main53028-28010iCXR1#,2#,TCR1#,2#199201-199608

main53028-28020iCXR1#,2#,TCR1#,2#199201-199608

main53211-28060iCXR1#,2#,TCR1#,2#199608-199912

53029ASUPPORT SUB-ASSY, RADIATOR, LOWER LH

main53029-28010iCXR1#,2#,TCR1#,2#199201-199608

main53029-28020iCXR1#,2#,TCR1#,2#199201-199608

main53212-28060iCXR1#,2#,TCR1#,2#199608-199912

53183ESEAL, HEADLAMP COVER, RH

main53183-28030iCXR1#,2#,TCR1#,2#..AERAS,D,F,G,GLUX,S,X,XLUX199201-199912

main53183-28030iCXR10,20,TCR10,20..ELU199801-199912

53201SUPPORT SUB-ASSY, RADIATOR

main53201-28020iCXR1#,2#,TCR1#,2#199201-199501

main53201-28030iCXR1#,2#,TCR1#,2#199201-199501

main53201-28040iCXR1#,2#,TCR1#,2#199501-199608

main53201-28050iCXR1#,2#,TCR1#,2#199501-199608

main53201-28110iCXR1#,2#,TCR1#,2#199608-199805

main53201-28111iCXR1#,2#,TCR1#,2#199805-199912

sub53201-28110

53205SUPPORT SUB-ASSY, RADIATOR, UPPER

main53205-28070iCXR1#,2#,TCR1#,2#199201-199501

main53205-28100iCXR1#,2#,TCR1#,2#199501-199805

main53205-28101iCXR1#,2#,TCR1#,2#199805-199912

sub53205-28100

53233BBRACKET, HEADLAMP, INNER RH

main53233-28010iCXR1#,2#,TCR1#,2#199201-199501

main53233-28040iCXR1#,2#,TCR1#,2#199501-199912

53234BBRACKET, HEADLAMP, INNER LH

main53234-28010iCXR1#,2#,TCR1#,2#199201-199501

main53234-28040iCXR1#,2#,TCR1#,2#199501-199912

53273AREINFORCEMENT, RADIATOR SUPPORT, RH

main53273-28030iCXR1#,2#,TCR1#,2#199201-199912

53274AREINFORCEMENT, RADIATOR SUPPORT, LH

main53274-28020iCXR1#,2#,TCR1#,2#199201-199805

main53274-28021iCXR1#,2#,TCR1#,2#199805-199912

sub53274-28020

53701APRON SUB-ASSY, FRONT FENDER, RH

main53701-28020iTCR1#,2#199201-199501

main53701-28030iTCR1#,2#199201-199608

sub53701-28570

main53701-28040iCXR1#,2#199201-199501

main53701-28050iCXR1#,2#199201-199608

sub53701-28580

main53701-28570iTCR1#,2#199501-199608

main53701-28580iCXR1#,2#199501-199608

main53701-28700iTCR1#,2#199608-199805

main53701-28701iTCR1#,2#199805-199912

sub53701-28700

main53701-28710iCXR1#,2#199608-199805

main53701-28711iCXR1#,2#199805-199908

sub53701-28710

53702APRON SUB-ASSY, FRONT FENDER, LH

main53702-28010iTCR1#,2#199201-199501

main53702-28020iTCR1#,2#199201-199501

main53702-28030iCXR1#,2#199201-199308

main53702-28040iCXR1#,2#199201-199308

main53702-28290iCXR1#,2#199308-199501

sub53702-28300

main53702-28300iCXR1#,2#199308-199501

main53702-28310iCXR1#,2#199308-199501

sub53702-28320

main53702-28320iCXR1#,2#199308-199501

main53702-28560iTCR1#,2#199501-199608

sub53702-28020

main53702-28570iCXR1#,2#199501-199608

sub53702-28300

main53702-28580iCXR1#,2#199501-199608

sub53702-28300

main53702-28600iCXR1#,2#199608-199908

main53702-28610iTCR1#,2#199608-199912

53823BPROTECTOR, FRONT SIDE PANEL, NO.2

main53823-28010iCXR1#,2#,TCR1#,2#199201-199912

55101PANEL SUB-ASSY, DASH

main55101-28010iCXR11,21199201-199608

main55101-28020iTCR1#,2#..ATM..(G,S,X)199201-199608

main55101-28030iCXR1#,2#..ATM..(G,GLUX,X,XLUX)199201-199608

main55101-28030iCXR11..MTM199201-199308

main55101-28040iTCR1#,2#..ATM..(G,GLUX,S,X,XLUX)199201-199608

main55101-28050iCXR11,21199201-199608

sub55101-28010

main55101-28060iTCR1#,2#..ATM..(G,S,X)199201-199608

sub55101-28020

main55101-28070iCXR1#,2#..ATM..(G,GLUX,X,XLUX)199201-199608

sub55101-28030

main55101-28080iTCR1#,2#..ATM..(G,GLUX,S,X,XLUX)199201-199608

sub55101-28040

main55101-28250iCXR1#,2#..MTM..(G,X)199201-199501

main55101-28260iTCR10,2#..MTM..(G,S,X)199201-199501

main55101-28270iCXR10..ATM..X199201-199308

main55101-28270iCXR1#,2#..MTM..(G,X)199201-199608

main55101-28280iTCR10,2#..MTM..(G,S,X)199201-199608

main55101-28290iCXR1#,2#..MTM..(G,X)199201-199501

sub55101-28250

main55101-28300iTCR10,2#..MTM..(G,S,X)199201-199501

sub55101-28260

main55101-28310iCXR1#,2#..MTM..(G,X)199201-199608

sub55101-28270

main55101-28320iTCR10,2#..MTM..(G,S,X)199201-199608

sub55101-28280

main55101-28790iTCR10..MTM..F199201-199308

sub55101-28280

main55101-28800iTCR10..ATM..F199201-199308

sub55101-28880

main55101-28810iCXR10,20..MTM..(D,F)199201-199501

sub55101-28270

main55101-28820iCXR10,20..ATM..(D,F)199201-199501

sub55101-28030

main55101-28830iTCR10..MTM..F199201-199308

sub55101-28280

main55101-28840iTCR10..ATM..F199201-199308

sub55101-28040

main55101-28850iCXR10,20..MTM..(D,F)199201-199501

sub55101-28270

main55101-28860iCXR10,20..ATM..(D,F)199201-199501

sub55101-28030

main55101-28870iTCR10..MTM..F199201-199308

sub55101-28260

main55101-28880iTCR10..ATM..F199201-199308

main55101-28890iCXR10,20..MTM..F199201-199501

sub55101-28250

main55101-2J010iCXR10,20..ATM..F199201-199501

sub55101-28010

main55101-2J020iTCR10..MTM..F199201-199308

sub55101-28260

main55101-2J030iTCR10..ATM..F199201-199308

sub55101-28020

main55101-2J040iCXR10,20..MTM..F199201-199501

sub55101-28250

main55101-2J050iCXR10,20..ATM..F199201-199501

sub55101-28010

main55101-2R710iTCR1#,2#199608-199912

sub55101-28040

main55101-2R720iCXR10,20..MTM199608-199803

sub55101-28270

main55101-2R721iCXR10,20..MTM199803-199908

sub55101-28270

main55101-2R730iCXR1#,2#..ATM199608-199803

sub55101-28030

main55101-2R731iCXR1#,2#..ATM199803-199908

sub55101-28030

main55101-2R740iTCR11,21199608-199912

sub55101-28020

main55101-2R750iCXR11,21199608-199803

sub55101-28010

main55101-2R751iCXR11,21199803-199908

sub55101-28010

55108ABRACE SUB-ASSY, PEDAL SUPPORT TO COWL

main55108-28030iCXR1#,2#,TCR1#,2#199201-199912

55210INSULATOR ASSY, DASH PANEL

main55210-28010iCXR1#,2#,TCR1#,2#199201-199608

main55210-28070iCXR1#,2#,TCR1#,2#199608-199912

55220INSULATOR ASSY, DASH PANEL, NO.2

main55220-28010iCXR1#,2#,TCR1#,2#199201-199608

62151CPAD, COWL SIDE SILENCER, RH

main62105-28010iCXR1#,2#,TCR1#,2#199608-199912

main62151-28010iCXR1#,2#199201-199209

sub62151-28030

main62151-28030iCXR1#,2#199209-199608

62152APAD, COWL SIDE SILENCER, LH

main62152-28010iCXR1#,2#199201-199209

sub62152-28030

main62152-28030iCXR1#,2#199209-199912

8271595D00BRACKET,WIRING HARNESS CLAMP

main82715-95D00

9011908373

main90119-08373

9017908039

main90179-08039

9033301002

main90333-01002

9033330008

main90333-30008

9046708011

main90467-08011

9046718012

main90467-18012

9046720014

main90467-20014

9095001112

main90950-01112

9095001786

main90950-01786

9095001824

main90950-01824

9095001832

main90950-01832

9095001849

main90950-01849

9095006096

main90950-06096

9161160816

main91611-60816

9165140816

main91651-40816

35 parts on this diagram · 2 diagrams in section
