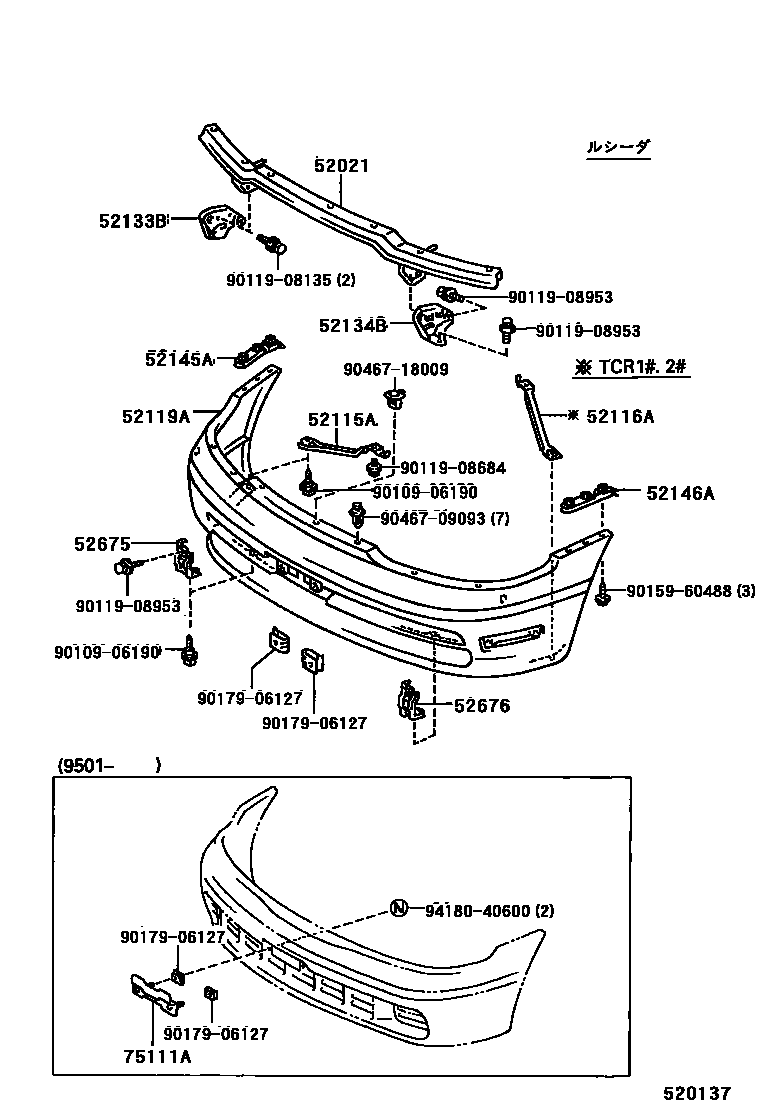

FRONT BUMPER & BUMPER STAY

0001 1 0002 1 0003 1 0004 1

52021REINFORCEMENT SUB-ASSY, FRONT BUMPER

main52021-28070iCXR1#,2#,TCR1#,2#199201-199501

LUCIDA

main52021-28080iCXR1#,2#,TCR1#,2#199201-199501

EMINA

main52021-28120iCXR1#,2#,TCR1#,2#199501-199608

LUCIDA;EMINA

main52021-28150iCXR1#,2#,TCR1#,2#199608-199912

LUCIDA

main52021-28160iCXR1#,2#,TCR1#,2#199608-199912

EMINA

52115ASUPPORT, FRONT BUMPER SIDE, RH

main52115-28020iCXR1#,2#,TCR1#,2#199201-199912

52116ASUPPORT, FRONT BUMPER SIDE, LH

main52115-28020iCXR1#,2#,TCR1#,2#199201-199912

52119ACOVER, FRONT BUMPER

main52119-28080-A0iCXR10,20,TCR10,20199201-199308

sub52119-28080

sub52119-28917

main52119-28080-A1iCXR10,20,TCR10,20199308-199501

sub52119-28080

sub52119-28917

main52119-28080-A2iCXR10,20..X;TCR10,20..ATM..X199304-199307

sub52119-28080

sub52119-28917

main52119-28080-B0iCXR10,20,TCR1#,2#..S,X199201-199308

sub52119-28080

sub52119-28917

main52119-28080-B1iCXR10,20,TCR10,20..X199308-199501

sub52119-28080

sub52119-28917

main52119-28080-D0iCXR10,20,TCR1#,2#..F,S,X199201-199308

sub52119-28080

sub52119-28917

main52119-28080-D1iCXR10,20,TCR10,20199308-199501

sub52119-28080

sub52119-28917

main52119-28080-D2iCXR10,20..X;TCR10,20..ATM..X199304-199307

sub52119-28080

sub52119-28917

main52119-28080-F0iCXR10,20,TCR1#,2#..S,X199201-199308

sub52119-28080

sub52119-28917

main52119-28080-H0iCXR10,20,TCR1#,2#..S,X199201-199308

sub52119-28080

sub52119-28917

main52119-28080-H1iCXR10,20,TCR10,20..X199308-199501

sub52119-28080

sub52119-28917

main52119-28080-H2iCXR10,20,TCR10,20..X199308-199501

sub52119-28080

sub52119-28917

main52119-28080-J0iCXR10,20,TCR1#,2#..F,S,X199201-199308

sub52119-28080

sub52119-28917

main52119-28080-J1iCXR10,20,TCR10,20199308-199501

sub52119-28080

sub52119-28917

main52119-28090-B0iCXR11,21,TCR11,21..G199201-199308

sub52119-28090

sub52119-28917

main52119-28090-B1iCXR11,21,TCR11,21199308-199501

sub52119-28090

sub52119-28917

main52119-28090-D0iCXR11,21,TCR11,21..G199201-199308

sub52119-28090

sub52119-28917

main52119-28090-D1iCXR11,21,TCR11,21199308-199501

sub52119-28090

sub52119-28917

main52119-28090-F0iCXR11,21,TCR11,21..G199201-199308

sub52119-28090

sub52119-28917

main52119-28090-H0iCXR11,21,TCR11,21..G199201-199308

sub52119-28090

sub52119-28917

main52119-28090-H1iCXR11,21,TCR11,21199308-199501

sub52119-28090

sub52119-28917

main52119-28090-H2iCXR11,21,TCR11,21199308-199501

sub52119-28090

sub52119-28917

main52119-28090-J0iCXR11,21,TCR11,21..G199201-199308

sub52119-28090

sub52119-28917

main52119-28090-J1iCXR11,21,TCR11,21199308-199501

sub52119-28090

sub52119-28917

main52119-28100-B0iCXR11,21,TCR11,21..G199201-199308

sub52119-28100

sub52119-28920

main52119-28100-B1iCXR11,21,TCR11,21199308-199501

sub52119-28100

sub52119-28920

main52119-28100-D0iCXR11,21,TCR11,21..G199201-199308

sub52119-28100

sub52119-28920

main52119-28100-D1iCXR11,21,TCR11,21199308-199501

sub52119-28100

sub52119-28920

main52119-28100-F0iCXR11,21,TCR11,21..G199201-199308

sub52119-28100

sub52119-28920

main52119-28100-H0iCXR11,21,TCR11,21..G199201-199308

sub52119-28100

sub52119-28920

main52119-28100-H1iCXR11,21,TCR11,21199308-199501

sub52119-28100

sub52119-28920

main52119-28100-H2iCXR11,21,TCR11,21199308-199501

sub52119-28100

sub52119-28920

main52119-28100-J0iCXR11,21,TCR11,21..G199201-199308

sub52119-28100

sub52119-28920

main52119-28100-J1iCXR11,21,TCR11,21199308-199501

sub52119-28100

sub52119-28920

main52119-28110-A0iCXR10,20,TCR10,20199201-199308

LUCIDA,WHITE,041

sub52119-28110

sub52119-28918

main52119-28110-A1iCXR10,20,TCR10,20199308-199501

LUCIDA,WHITE,041

sub52119-28110

sub52119-28918

main52119-28110-A2iCXR10,20..X;TCR10,20..ATM..X199304-199307

sub52119-28110

sub52119-28918

main52119-28110-B0iCXR10,20,TCR1#,2#..S,X199201-199308

LUCIDA,WARM GRAY OPAL,193

sub52119-28110

sub52119-28918

main52119-28110-B1iCXR10,20,TCR10,20..X199308-199501

LUCIDA,WARM GRAY OPAL,193

sub52119-28110

sub52119-28918

main52119-28110-D0iCXR10,20,TCR1#,2#..F,S,X199201-199308

LUCIDA,DEEP RED MICA,3H8

sub52119-28110

sub52119-28918

main52119-28110-D1iCXR10,20,TCR10,20199308-199501

LUCIDA,DEEP RED MICA,3H8

sub52119-28110

sub52119-28918

main52119-28110-D2iCXR10,20..X;TCR10,20..ATM..X199304-199307

sub52119-28110

sub52119-28918

main52119-28110-D2iCXR10,20,TCR10,20..ATM..X199312-199407

sub52119-28110

sub52119-28918

main52119-28110-F0iCXR10,20,TCR1#,2#..S,X199201-199308

LUCIDA,PALE YELLOW PEARE MI,573

sub52119-28110

sub52119-28918

main52119-28110-H0iCXR10,20,TCR1#,2#..S,X199201-199308

LUCIDA,LIGHT TURUQUOISE M.M,750

sub52119-28110

sub52119-28918

main52119-28110-H1iCXR10,20,TCR10,20..X199308-199501

LUCIDA,LIGHT TURQUOISE M.M,750

sub52119-28110

sub52119-28918

main52119-28110-H2iCXR10,20,TCR10,20..ATM..X199312-199407

sub52119-28110

sub52119-28918

main52119-28110-H2iCXR10,20,TCR10,20..X199308-199501

LUCIDA,DARK TEAL GREEN M.M,751

sub52119-28110

sub52119-28918

main52119-28110-J0iCXR10,20,TCR1#,2#..F,S,X199201-199308

LUCIDA,BLUEISH GRAY M,8H5

sub52119-28110

sub52119-28918

main52119-28110-J1iCXR10,20,TCR10,20199308-199501

LUCIDA,BLUISH GRAY M,8H5

sub52119-28110

sub52119-28918

main52119-28120-B0iCXR11,21,TCR11,21..G199201-199308

LUCIDA,WARM GRAY OPAL,193

sub52119-28120

sub52119-28918

main52119-28120-B1iCXR11,21,TCR11,21199308-199501

LUCIDA,WARM GRAY OPAL,193

sub52119-28120

sub52119-28918

main52119-28120-B2iCXR10,20,TCR10,20..ATM..X199408-199412

sub52119-28120

sub52119-28918

main52119-28120-D0iCXR11,21,TCR11,21..G199201-199308

LUCIDA,DEEP RED MICA,3H8

sub52119-28120

sub52119-28918

main52119-28120-D1iCXR11,21,TCR11,21199308-199501

LUCIDA,DEEP RED MICA,3H8

sub52119-28120

sub52119-28918

main52119-28120-F0iCXR11,21,TCR11,21..G199201-199308

LUCIDA,PALE YERROW PEARE MI,573

sub52119-28120

sub52119-28918

main52119-28120-H0iCXR11,21,TCR11,21..G199201-199308

LUCIDA,LIGHT TURQUOISE M.M,750

sub52119-28120

sub52119-28918

main52119-28120-H1iCXR11,21,TCR11,21199308-199501

LUCIDA,LIGHT TURQUOISE M.M,750

sub52119-28120

sub52119-28918

main52119-28120-H2iCXR11,21,TCR11,21199308-199501

LUCIDA,DARK TEAL GREEN M.M,751

sub52119-28120

sub52119-28918

main52119-28120-H3iCXR10,20,TCR10,20..ATM..X199408-199412

sub52119-28120

sub52119-28918

main52119-28120-J0iCXR11,21,TCR11,21..G199201-199308

LUCIDA,BLUEISH GLAY M,8H5

sub52119-28120

sub52119-28918

main52119-28120-J1iCXR11,21,TCR11,21199308-199501

LUCIDA,BLUISH GRAY M,8H5

sub52119-28120

sub52119-28918

main52119-28130-A0iCXR10,20,TCR10,20199201-199308

EMINA,WHITE,041

sub52119-28130

sub52119-28919

main52119-28130-A1iCXR10,20,TCR10,20199308-199501

EMINA,WHITE,041

sub52119-28130

sub52119-28919

main52119-28130-A2iCXR10,20..X;TCR10,20..ATM..X199304-199307

sub52119-28130

sub52119-28919

main52119-28130-A2iCXR10,20,TCR10,20..ATM..X199312-199407

sub52119-28130

sub52119-28919

main52119-28130-B0iCXR10,20,TCR1#,2#..S,X199201-199308

EMINA,WARM GRAY OPAL,193

sub52119-28130

sub52119-28919

main52119-28130-B1iCXR10,20,TCR10,20..X199308-199501

EMINA,WARM GRAY OPAL,193

sub52119-28130

sub52119-28919

main52119-28130-D0iCXR10,20,TCR1#,2#..F,S,X199201-199308

EMINA,DEEP RED MICA,3H8

sub52119-28130

sub52119-28919

main52119-28130-D1iCXR10,20,TCR10,20199308-199501

EMINA,DEEP RED MICA,3H8

sub52119-28130

sub52119-28919

main52119-28130-D2iCXR10,20..X;TCR10,20..ATM..X199304-199307

sub52119-28130

sub52119-28919

main52119-28130-F0iCXR10,20,TCR1#,2#..S,X199201-199308

EMINA,PALE YELLOW PEARE MI,573

sub52119-28130

sub52119-28919

main52119-28130-H0iCXR10,20,TCR1#,2#..S,X199201-199308

EMINA,LIGHT TURQUOISE M.M,750

sub52119-28130

sub52119-28919

main52119-28130-H1iCXR10,20,TCR10,20..X199308-199501

EMINA,LIGHT TURQUOISE M.M,750

sub52119-28130

sub52119-28919

main52119-28130-H2iCXR10,20,TCR10,20..X199308-199501

EMINA,DARK TEAL GREEN M.M,751

sub52119-28130

sub52119-28919

main52119-28130-H2iCXR10,20,TCR10,20..ATM..X199312-199407

sub52119-28130

sub52119-28919

main52119-28130-J0iCXR10,20,TCR1#,2#..F,S,X199201-199308

EMINA,BLUEISH GLAY M,8H5

sub52119-28130

sub52119-28919

main52119-28130-J1iCXR10,20,TCR10,20199308-199501

EMINA,BLUISH GRAY M,8H5

sub52119-28130

sub52119-28919

main52119-28140-B0iCXR11,21,TCR11,21..G199201-199308

EMINA,WARM GRAY OPAL,193

sub52119-28140

sub52119-28919

main52119-28140-B1iCXR11,21,TCR11,21199308-199501

EMINA,WARM GRAY OPAL,193

sub52119-28140

sub52119-28919

main52119-28140-B2iCXR10,20,TCR10,20..ATM..X199408-199412

sub52119-28140

sub52119-28919

main52119-28140-D0iCXR11,21,TCR11,21..G199201-199308

EMINA,DEEP RED MICA,3H8

sub52119-28140

sub52119-28919

main52119-28140-D1iCXR11,21,TCR11,21199308-199501

EMINA,DEEP RED MICA,3H8

sub52119-28140

sub52119-28919

main52119-28140-F0iCXR11,21,TCR11,21..G199201-199308

EMINA,PALE YELLOW PEARE MI,573

sub52119-28140

sub52119-28919

main52119-28140-H0iCXR11,21,TCR11,21..G199201-199308

EMINA,LIGHT TURQUOISE M.M,750

sub52119-28140

sub52119-28919

main52119-28140-H1iCXR11,21,TCR11,21199308-199501

EMINA,LIGHT TURQUOISE M.M,750

sub52119-28140

sub52119-28919

main52119-28140-H2iCXR11,21,TCR11,21199308-199501

EMINA,DARK TEAL GREEN M.M,751

sub52119-28140

sub52119-28919

main52119-28140-H3iCXR10,20,TCR10,20..ATM..X199408-199412

sub52119-28140

sub52119-28919

main52119-28140-J0iCXR11,21,TCR11,21..G199201-199308

EMINA,BLUEISH GLAY M,8H5

sub52119-28140

sub52119-28919

main52119-28140-J1iCXR11,21,TCR11,21199308-199501

EMINA,BLUISH GRAY M,8H5

sub52119-28140

sub52119-28919

main52119-28180-B0iCXR10,20,TCR10,20199501-199608

EMINA,WARM GRAY OP.,193

sub52119-28937

sub52119-28936

main52119-28180-D0iCXR10,20,TCR10,20199501-199608

EMINA,DP.RED MC,3H8

sub52119-28937

sub52119-28936

main52119-28180-F0iCXR10,20,TCR10,20199501-199608

EMINA,PL.YELLOW OP,574

sub52119-28937

sub52119-28936

main52119-28180-H0iCXR10,20,TCR10,20199501-199608

EMINA,LT.TORQUOISE MM,750

sub52119-28937

sub52119-28936

main52119-28180-H1iCXR10,20,TCR10,20199501-199608

EMINA,DK.TEAL GREEN MC.,751

sub52119-28937

sub52119-28936

main52119-28180-J0iCXR10,20,TCR10,20199501-199608

EMINA,DK.BLUE M.M.,8K0

sub52119-28937

sub52119-28936

main52119-28190-A0iCXR10,20,TCR10,20199201-199308

sub52119-28190

sub52119-28920

main52119-28190-A1iCXR10,20,TCR10,20199308-199501

sub52119-28190

sub52119-28920

main52119-28190-A2iCXR10,20..X;TCR10,20..ATM..X199304-199307

sub52119-28190

sub52119-28920

main52119-28190-B0iCXR10,20,TCR1#,2#..S,X199201-199308

sub52119-28190

sub52119-28920

main52119-28190-B1iCXR10,20,TCR10,20..X199308-199501

sub52119-28190

sub52119-28920

main52119-28190-D0iCXR10,20,TCR1#,2#..F,S,X199201-199308

sub52119-28190

sub52119-28920

main52119-28190-D1iCXR10,20,TCR10,20199308-199501

sub52119-28190

sub52119-28920

main52119-28190-D2iCXR10,20..X;TCR10,20..ATM..X199304-199307

sub52119-28190

sub52119-28920

main52119-28190-F0iCXR10,20,TCR1#,2#..S,X199201-199308

sub52119-28190

sub52119-28920

main52119-28190-H0iCXR10,20,TCR1#,2#..S,X199201-199308

sub52119-28190

sub52119-28920

main52119-28190-H1iCXR10,20,TCR10,20..X199308-199501

sub52119-28190

sub52119-28920

main52119-28190-H2iCXR10,20,TCR10,20..X199308-199501

sub52119-28190

sub52119-28920

main52119-28190-J0iCXR10,20,TCR1#,2#..F,S,X199201-199308

sub52119-28190

sub52119-28920

main52119-28190-J1iCXR10,20,TCR10,20199308-199501

sub52119-28190

sub52119-28920

main52119-28310-B0iCXR11,21,TCR11,21..G199501-199608

EMINA,WARM GRAY OP.,193

sub52119-28963

main52119-28310-B2iCXR10,20,TCR10,20..ATM..X199508-199608

sub52119-28963

main52119-28310-B3iCXR10,20,TCR10,20..ATM..X199508-199608

sub52119-28963

main52119-28310-D0iCXR11,21,TCR11,21..G199501-199608

EMINA,DP.RED MC,3H8

sub52119-28963

main52119-28310-F0iCXR11,21,TCR11,21..G199501-199608

EMINA,PL.YELLOW OP,574

sub52119-28963

main52119-28310-H0iCXR11,21,TCR11,21..G199501-199608

EMINA,LT.TORQUOISE MM,750

sub52119-28963

main52119-28310-H1iCXR11,21,TCR11,21..G199501-199608

EMINA,DK.TEAL GREEN MC.,751

sub52119-28963

main52119-28310-J0iCXR11,21,TCR11,21..G199501-199608

EMINA,DK.BLUE M.M.,8K0

sub52119-28963

main52119-28320-B0iCXR10,20,TCR10,20199501-199608

sub52119-28938

sub52119-28933

main52119-28320-D0iCXR10,20,TCR10,20199501-199608

sub52119-28938

sub52119-28933

main52119-28320-F0iCXR10,20,TCR10,20199501-199608

sub52119-28938

sub52119-28933

main52119-28320-H0iCXR10,20,TCR10,20199501-199608

sub52119-28938

sub52119-28933

main52119-28320-H1iCXR10,20,TCR10,20199501-199608

sub52119-28938

sub52119-28933

main52119-28320-J0iCXR10,20,TCR10,20199501-199608

sub52119-28938

sub52119-28933

main52119-28330-B0iCXR11,21,TCR11,21199501-199608

main52119-28330-D0iCXR11,21,TCR11,21199501-199608

main52119-28330-F0iCXR11,21,TCR11,21199501-199608

main52119-28330-H0iCXR11,21,TCR11,21199501-199608

main52119-28330-H1iCXR11,21,TCR11,21199501-199608

main52119-28330-J0iCXR11,21,TCR11,21199501-199608

main52119-28340-B0iCXR10,20,TCR10,20199501-199608

LUCIDA,WARM GRAY OP.,193

sub52119-28939

sub52119-28934

main52119-28340-D0iCXR10,20,TCR10,20199501-199608

LUCIDA,DP.RED MC,3H8

sub52119-28939

sub52119-28934

main52119-28340-F0iCXR10,20,TCR10,20199501-199608

LUCIDA,PL.YELLOW OP,574

sub52119-28939

sub52119-28934

main52119-28340-H0iCXR10,20,TCR10,20199501-199608

LUCIDA,LT.TORQUOISE MM,750

sub52119-28939

sub52119-28934

main52119-28340-H1iCXR10,20,TCR10,20199501-199608

LUCIDA,DK.TEAL GREEN MC.,751

sub52119-28939

sub52119-28934

main52119-28340-J0iCXR10,20,TCR10,20199501-199608

LUCIDA,DK.BLUE M.M.,8K0

sub52119-28939

sub52119-28934

main52119-28350-B0iCXR11,21,TCR11,21..G199501-199608

LUCIDA,WARM GRAY OP.,193

sub52119-28939

main52119-28350-B2iCXR10,20,TCR10,20..ATM..X199508-199608

sub52119-28939

main52119-28350-B3iCXR10,20,TCR10,20..ATM..X199508-199608

sub52119-28939

main52119-28350-D0iCXR11,21,TCR11,21..G199501-199608

LUCIDA,DP.RED MC,3H8

sub52119-28939

main52119-28350-F0iCXR11,21,TCR11,21..G199501-199608

LUCIDA,PL.YELLOW OP,574

sub52119-28939

main52119-28350-H0iCXR11,21,TCR11,21..G199501-199608

LUCIDA,LT.TORQUOISE MM,750

sub52119-28939

main52119-28350-H1iCXR11,21,TCR11,21..G199501-199608

LUCIDA,DK.TEAL GREEN MC.,751

sub52119-28939

main52119-28350-J0iCXR11,21,TCR11,21..G199501-199608

LUCIDA,DK.BLUE M.M.,8K0

sub52119-28939

main52119-28360-B0iCXR10,20,TCR10,20199501-199608

sub52119-28940

sub52119-28935

main52119-28360-D0iCXR10,20,TCR10,20199501-199608

sub52119-28940

sub52119-28935

main52119-28360-F0iCXR10,20,TCR10,20199501-199608

sub52119-28940

sub52119-28935

main52119-28360-H0iCXR10,20,TCR10,20199501-199608

sub52119-28940

sub52119-28935

main52119-28360-H1iCXR10,20,TCR10,20199501-199608

sub52119-28940

sub52119-28935

main52119-28360-J0iCXR10,20,TCR10,20199501-199608

sub52119-28940

sub52119-28935

main52119-28370-B0iCXR11,21,TCR11,21199501-199608

main52119-28370-D0iCXR11,21,TCR11,21199501-199608

main52119-28370-F0iCXR11,21,TCR11,21199501-199608

main52119-28370-H0iCXR11,21,TCR11,21199501-199608

main52119-28370-H1iCXR11,21,TCR11,21199501-199608

main52119-28370-J0iCXR11,21,TCR11,21199501-199608

main52119-28500-A0iCXR10,20,TCR10,20..X199801-199912

LUCIDA,WHITE PM,042

sub52119-28500

sub52119-2J936

main52119-28500-B0iCXR10,20,TCR10,20..X,XLUX199608-199801

LUCIDA,WARM GRAY OP.,193

sub52119-28500

sub52119-2J936

main52119-28500-B1iCXR10,20,TCR10,20..X199801-199912

LUCIDA,SILVER ME,199

sub52119-28500

sub52119-2J936

main52119-28500-D0iCXR10,20,TCR10,20..X199608-199912

LUCIDA,SU.RED MC,3J7

sub52119-28500

sub52119-2J936

main52119-28500-F0iCXR10,20,TCR10,20..X,XLUX199608-199801

LUCIDA,PL.YELLOW OP,574

sub52119-28500

sub52119-2J936

main52119-28500-G0iCXR10,20,TCR10,20..X,XLUX199608-199912

LUCIDA,GREEN ME.,6P9

sub52119-28500

sub52119-2J936

main52119-28500-H0iCXR10,20,TCR10,20..X,XLUX199608-199801

LUCIDA,DK.TEAL GREEN MC.,751

sub52119-28500

sub52119-2J936

main52119-28500-H1iCXR10,20,TCR10,20..X199801-199912

LUCIDA,DK.TURQUOISE MC.,760

sub52119-28500

sub52119-2J936

main52119-28500-J0iCXR10,20,TCR10,20..X,XLUX199608-199912

LUCIDA,DK.BLUE M.M.,8K0

sub52119-28500

sub52119-2J936

main52119-28510-A1iCXR10,20,TCR10,20..ATM..X199704-199708

sub52119-2J936

sub52119-28510

main52119-28510-A2iCXR1#,2#,TCR1#,2#..ELU,G,XLUX199801-199912

LUCIDA,WHITE PM,042

sub52119-2J936

sub52119-28510

main52119-28510-A4iCXR10,20,TCR10,20..ATM..X199804-199912

sub52119-2J936

sub52119-28510

main52119-28510-A4iCXR10,20,TCR10,20..ATM..X199709-199712

sub52119-2J936

sub52119-28510

main52119-28510-B0iCXR11,21,TCR11,21..G199608-199801

LUCIDA,WARM GRAY OP.,193

sub52119-2J936

sub52119-28510

main52119-28510-B2iCXR10,20,TCR10,20..ATM..X199610-199703

sub52119-2J936

sub52119-28510

main52119-28510-B3iCXR1#,2#,TCR1#,2#..ELU,G,XLUX199801-199912

LUCIDA,SILVER ME,199

sub52119-2J936

sub52119-28510

main52119-28510-B5iCXR10,20,TCR10,20..ATM..X199804-199912

sub52119-2J936

sub52119-28510

main52119-28510-B6iCXR1#,2#,TCR1#,2#..ELU,G,XLUX199801-199912

sub52119-2J936

sub52119-28510

main52119-28510-C0iCXR10,20,TCR10,20..ATM..X199709-199712

sub52119-2J936

sub52119-28510

main52119-28510-C0iCXR10,20,TCR10,20..ATM..X199704-199708

sub52119-2J936

sub52119-28510

main52119-28510-C1iCXR10,20,TCR10,20..ATM..X199610-199703

sub52119-2J936

sub52119-28510

main52119-28510-D0iCXR11,21,TCR11,21..G199608-199912

LUCIDA,SU.RED MC,3J7

sub52119-2J936

sub52119-28510

main52119-28510-F0iCXR11,21,TCR11,21..G199608-199801

LUCIDA,PL.YELLOW OP,574

sub52119-2J936

sub52119-28510

main52119-28510-G0iCXR11,21,TCR11,21..G199608-199912

LUCIDA,GREEN ME.,6P9

sub52119-2J936

sub52119-28510

main52119-28510-H0iCXR11,21,TCR11,21..G199608-199801

LUCIDA,DK.TEAL GREEN MC.,751

sub52119-2J936

sub52119-28510

main52119-28510-H1iCXR1#,2#,TCR1#,2#..ELU,G,XLUX199801-199912

LUCIDA,DK.TURQUOISE MC.,760

sub52119-2J936

sub52119-28510

main52119-28510-J0iCXR1#,2#,TCR1#,2#..ELU,G,XLUX199608-199912

LUCIDA,DK.BLUE M.M.,8K0

sub52119-2J936

sub52119-28510

main52119-28520-A0iCXR10,20,TCR10,20..X199801-199912

sub52119-28520

sub52119-2J937

main52119-28520-B0iCXR10,20,TCR10,20..X,XLUX199608-199801

sub52119-28520

sub52119-2J937

main52119-28520-B1iCXR10,20,TCR10,20..X199801-199912

sub52119-28520

sub52119-2J937

main52119-28520-D0iCXR10,20,TCR10,20..X,XLUX199608-199912

sub52119-28520

sub52119-2J937

main52119-28520-F0iCXR10,20,TCR10,20..X,XLUX199608-199801

sub52119-28520

sub52119-2J937

main52119-28520-G0iCXR10,20,TCR10,20..X,XLUX199608-199912

sub52119-28520

sub52119-2J937

main52119-28520-H0iCXR10,20,TCR10,20..X,XLUX199608-199801

sub52119-28520

sub52119-2J937

main52119-28520-H1iCXR10,20,TCR10,20..X199801-199912

sub52119-28520

sub52119-2J937

main52119-28520-J0iCXR10,20,TCR10,20..X,XLUX199608-199912

sub52119-28520

sub52119-2J937

main52119-28530-A0iCXR1#,2#,TCR1#,2#..ELU,G,XLUX199801-199912

sub52119-2J937

main52119-28530-B0iCXR11,21,TCR11,21199608-199801

sub52119-2J937

main52119-28530-B2iCXR1#,2#,TCR1#,2#..ELU,G,XLUX199801-199912

sub52119-2J937

main52119-28530-D0iCXR1#,2#,TCR1#,2#..ELU,G,XLUX199608-199912

sub52119-2J937

main52119-28530-F0iCXR11,21,TCR11,21199608-199801

sub52119-2J937

main52119-28530-G0iCXR1#,2#,TCR1#,2#..ELU,G,XLUX199608-199912

sub52119-2J937

main52119-28530-H0iCXR11,21,TCR11,21199608-199801

sub52119-2J937

main52119-28530-H1iCXR1#,2#,TCR1#,2#..ELU,G,XLUX199801-199912

sub52119-2J937

main52119-28530-J0iCXR1#,2#,TCR1#,2#..ELU,G,XLUX199608-199912

sub52119-2J937

main52119-28540-A0iCXR10,20,TCR10,20..X199801-199912

EMINA,WHITE PM,042

sub52119-28540

sub52119-2J938

main52119-28540-B0iCXR10,20,TCR10,20..X,XLUX199608-199801

EMINA,WARM GRAY OP.,193

sub52119-28540

sub52119-2J938

main52119-28540-B1iCXR10,20,TCR10,20..X199801-199912

EMINA,SILVER ME,199

sub52119-28540

sub52119-2J938

main52119-28540-D0iCXR10,20,TCR10,20..X199608-199912

EMINA,SU.RED MC,3J7

sub52119-28540

sub52119-2J938

main52119-28540-F0iCXR10,20,TCR10,20..X,XLUX199608-199801

EMINA,PL.YELLOW OP,574

sub52119-28540

sub52119-2J938

main52119-28540-G0iCXR10,20,TCR10,20..X,XLUX199608-199912

EMINA,GREEN ME.,6P9

sub52119-28540

sub52119-2J938

main52119-28540-H0iCXR10,20,TCR10,20..X,XLUX199608-199801

EMINA,DK.TEAL GREEN MC.,751

sub52119-28540

sub52119-2J938

main52119-28540-H1iCXR10,20,TCR10,20..X199801-199912

EMINA,DK.TURQUOISE MC.,760

sub52119-28540

sub52119-2J938

main52119-28540-J0iCXR10,20,TCR10,20..X,XLUX199608-199912

EMINA,DK.BLUE M.M.,8K0

sub52119-28540

sub52119-2J938

main52119-28550-A1iCXR10,20,TCR10,20..ATM..X199704-199708

sub52119-2J938

sub52119-28550

main52119-28550-A2iCXR1#,2#,TCR1#,2#..ELU,G,XLUX199801-199912

EMINA,WHITE PM,042

sub52119-2J938

sub52119-28550

main52119-28550-A4iCXR10,20,TCR10,20..ATM..X199804-199912

sub52119-2J938

sub52119-28550

main52119-28550-A4iCXR10,20,TCR10,20..ATM..X199709-199712

sub52119-2J938

sub52119-28550

main52119-28550-A6iCXR1#,2#,TCR1#,2#..ELU,G,XLUX199801-199912

sub52119-2J938

sub52119-28550

main52119-28550-B0iCXR11,21,TCR11,21..G199608-199801

EMINA,WARM GRAY OP.,193

sub52119-2J938

sub52119-28550

main52119-28550-B2iCXR10,20,TCR10,20..ATM..X199610-199703

sub52119-2J938

sub52119-28550

main52119-28550-B3iCXR1#,2#,TCR1#,2#..ELU,G,XLUX199801-199912

EMINA,SILVER ME,199

sub52119-2J938

sub52119-28550

main52119-28550-B4iCXR10,20,TCR10,20..ATM..X199804-199912

sub52119-2J938

sub52119-28550

main52119-28550-C0iCXR10,20,TCR10,20..ATM..X199709-199712

sub52119-2J938

sub52119-28550

main52119-28550-C0iCXR10,20,TCR10,20..ATM..X199704-199708

sub52119-2J938

sub52119-28550

main52119-28550-C1iCXR10,20,TCR10,20..ATM..X199610-199703

sub52119-2J938

sub52119-28550

main52119-28550-D0iCXR11,21,TCR11,21..G199608-199912

EMINA,SU.RED MC,3J7

sub52119-2J938

sub52119-28550

main52119-28550-F0iCXR11,21,TCR11,21..G199608-199801

EMINA,PL.YELLOW OP,574

sub52119-2J938

sub52119-28550

main52119-28550-G0iCXR11,21,TCR11,21..G199608-199912

EMINA,GREEN ME.,6P9

sub52119-2J938

sub52119-28550

main52119-28550-H0iCXR11,21,TCR11,21..G199608-199801

EMINA,DK.TEAL GREEN MC.,751

sub52119-2J938

sub52119-28550

main52119-28550-H1iCXR1#,2#,TCR1#,2#..ELU,G,XLUX199801-199912

EMINA,DK.TURQUOISE MC.,760

sub52119-2J938

sub52119-28550

main52119-28550-J0iCXR11,21,TCR11,21..G199608-199912

EMINA,DK.BLUE M.M.,8K0

sub52119-2J938

sub52119-28550

main52119-28560-A0iCXR10,20,TCR10,20..X199801-199912

sub52119-28560

sub52119-2J939

main52119-28560-B0iCXR10,20,TCR10,20..X,XLUX199608-199801

sub52119-28560

sub52119-2J939

main52119-28560-B1iCXR10,20,TCR10,20..X199801-199912

sub52119-28560

sub52119-2J939

main52119-28560-D0iCXR10,20,TCR10,20..X199608-199912

sub52119-28560

sub52119-2J939

main52119-28560-F0iCXR10,20,TCR10,20..X,XLUX199608-199801

sub52119-28560

sub52119-2J939

main52119-28560-G0iCXR10,20,TCR10,20..X,XLUX199608-199912

sub52119-28560

sub52119-2J939

main52119-28560-H0iCXR10,20,TCR10,20..X,XLUX199608-199801

sub52119-28560

sub52119-2J939

main52119-28560-H1iCXR10,20,TCR10,20..X199801-199912

sub52119-28560

sub52119-2J939

main52119-28560-J0iCXR10,20,TCR10,20..X199608-199912

sub52119-28560

sub52119-2J939

main52119-28570-A0iCXR1#,2#,TCR1#,2#..ELU,G,XLUX199801-199912

sub52119-2J939

main52119-28570-B0iCXR11,21,TCR11,21199608-199801

sub52119-2J939

main52119-28570-B2iCXR1#,2#,TCR1#,2#..ELU,G,XLUX199801-199912

sub52119-2J939

main52119-28570-D0iCXR11,21,TCR11,21199608-199912

sub52119-2J939

main52119-28570-F0iCXR11,21,TCR11,21199608-199801

sub52119-2J939

main52119-28570-G0iCXR11,21,TCR11,21199608-199912

sub52119-2J939

main52119-28570-H0iCXR11,21,TCR11,21199608-199801

sub52119-2J939

main52119-28570-H1iCXR1#,2#,TCR1#,2#..ELU,G,XLUX199801-199912

sub52119-2J939

main52119-28570-J0iCXR1#,2#,TCR1#,2#..ELU,G,XLUX199608-199912

sub52119-2J939

main52119-28650-A0iCXR10,20,TCR10,20..AERAS199612-199703

main52119-28650-A1iCXR10,20,TCR10,20..AERAS199801-199912

LUCIDA,WHITE PM,042

main52119-28650-B0iCXR10,20,TCR10,20..AERAS199608-199912

LUCIDA,DK BLUISH GRAY MICA,191

main52119-28650-D0iCXR10,20,TCR10,20..AERAS199608-199912

LUCIDA,SU.RED MC,3J7

main52119-28660-A0iCXR10,20,TCR10,20..AERAS199612-199703

main52119-28660-A1iCXR10,20,TCR10,20..AERAS199801-199912

main52119-28660-B0iCXR10,20,TCR10,20..AERAS199608-199912

main52119-28660-D0iCXR10,20,TCR10,20..AERAS199608-199912

main52119-28670-A0iCXR10,20,TCR10,20..AERAS199701-199703

main52119-28670-A1iCXR10,20,TCR10,20..AERAS199801-199912

EMINA,WHITE PM,042

main52119-28670-B0iCXR10,20,TCR10,20..AERAS199608-199912

EMINA,DK BLUISH GRAY MICA,191

main52119-28670-D0iCXR10,20,TCR10,20..AERAS199608-199912

EMINA,SU.RED MC,3J7

main52119-28680-A0iCXR10,20,TCR10,20..AERAS199701-199703

main52119-28680-A1iCXR10,20,TCR10,20..AERAS199801-199912

main52119-28680-B0iCXR10,20,TCR10,20..AERAS199608-199912

main52119-28680-D0iCXR10,20,TCR10,20..AERAS199608-199912

52133BBRACKET, FRONT BUMPER EXTENSION MOUNTING, RH

main52133-28040iCXR1#,2#,TCR1#,2#199201-199608

52134BBRACKET, FRONT BUMPER EXTENSION MOUNTING, LH

main52134-28040iCXR1#,2#,TCR1#,2#199201-199608

52145ASTAY, FRONT BUMPER, NO.2 RH

main52145-28010iCXR1#,2#,TCR1#,2#199201-199912

52146ASTAY, FRONT BUMPER, NO.2 LH

main52146-28030iCXR1#,2#,TCR1#,2#199201-199912

52675SUPPORT, FRONT BUMPER LOWER SIDE, RH

main52675-28030iCXR1#,2#,TCR1#,2#199201-199501

EMINA

main52675-28040iCXR1#,2#,TCR1#,2#199201-199501

LUCIDA

52676SUPPORT, FRONT BUMPER LOWER SIDE, LH

main52675-28030iCXR1#,2#,TCR1#,2#199201-199501

EMINA

main52675-28040iCXR1#,2#,TCR1#,2#199201-199501

LUCIDA

75111ABRACKET, FRONT LICENSE PLATE

main75111-28010iCXR1#,2#,TCR1#,2#199201-199912

9010906190

main90109-06190

9011908135

main90119-08135

9011908684

main90119-08684

9011908953

main90119-08953

9015960488

main90159-60488

9017906127

main90179-06127

9046709093

main90467-09093

9046718009

main90467-18009

9418040600

main94180-40600

20 parts on this diagram · 4 diagrams in section
