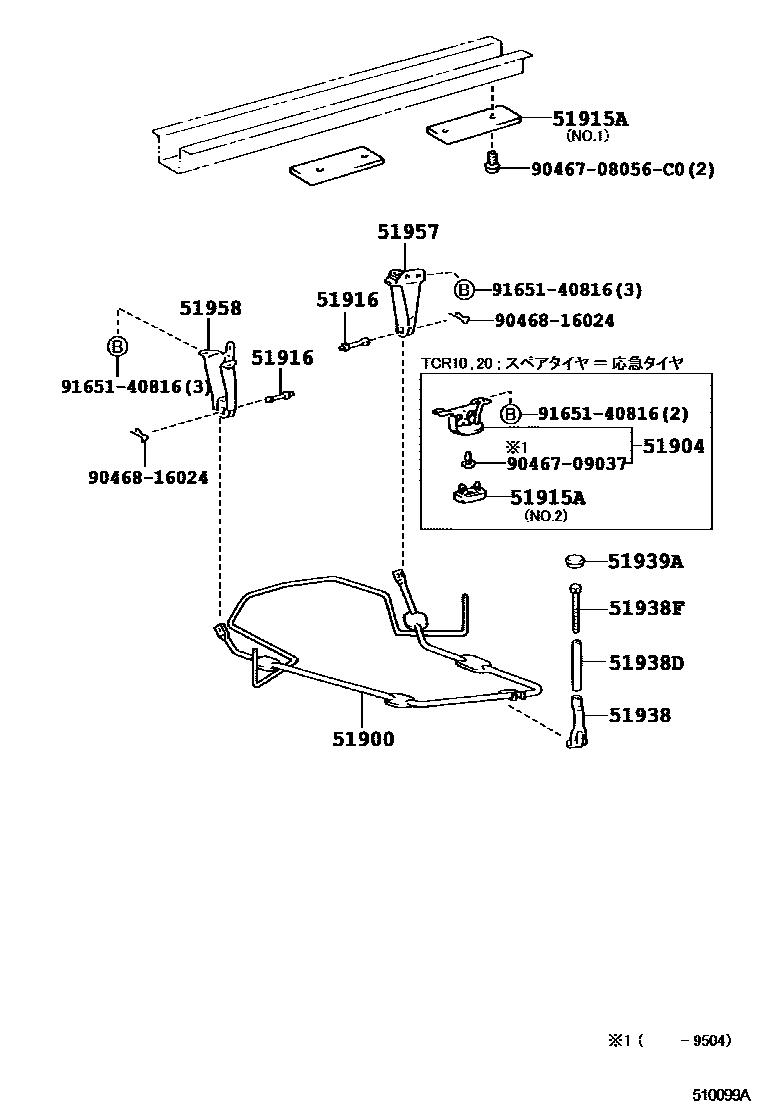

SPARE WHEEL CARRIER

51900CARRIER ASSY, SPARE WHEEL

main51900-28170iCXR10,20,TCR10,20199201-199308

sub51900-28171

main51900-28171iCXR10,20,TCR10,20199308-199501

sub51900-28172

main51900-28172iCXR10,20,TCR10,20199501-199608

main51900-28180iCXR10,20,TCR10,20..X199201-199308

sub51900-28181

main51900-28181iCXR11,21,TCR11,21199308-199501

sub51900-28182

main51900-28181iCXR11,21,TCR11,21199308-199501

sub51900-28182

main51900-28182iCXR10,20,TCR10,20199501-199608

main51900-28182iCXR1#,2#,TCR1#,2#199608-199912

51904BRACKET SUB-ASSY, SPEARE WHEEL CARRIER

main51904-28020iCXR10,20..F199308-199501

sub51915-28030

sub51933-28121

main51904-28020iCXR10,20,TCR10,20..X199201-199308

sub51915-28030

sub51933-28121

main51904-28020iCXR11,21,TCR11,21..G,S199201-199504

sub51915-28030

sub51933-28121

main51904-28020iCXR10,20,TCR10,20..X,XLUX199308-199504

sub51915-28030

sub51933-28121

main51904-28050iCXR10,20,TCR10,20199201-199504

sub51915-28011

sub51933-28121

main51933-28121iCXR1#,2#,TCR1#,2#..AERAS,ELU,G,X,XLUX199504-199912

51915ABASE, SPARE WHEEL CARRIER

main51915-28011iCXR10,20,TCR10,20199504-199608

main51915-28020iCXR10,20,TCR10,20199504-199912

main51915-28020iCXR1#,2#,TCR1#,2#199201-199504

N0.1

main51915-28020iCXR11,21,TCR11,21..GLUX199504-199608

main51915-28020iCXR11,21,TCR11,21..GLUX199504-199608

main51915-28030iCXR10,20,TCR10,20199504-199912

51916PIN, SPARE TIRE CARRIER

main51916-27020iCXR1#,2#,TCR1#,2#199201-199912

51938LOCK, SPARE WHEEL CARRIER

main51938-27070iCXR1#,2#,TCR1#,2#199201-199912

51938DTUBE(FOR SPARE WHEEL CARRIER BOLT)

main90440-17051iCXR11,21,TCR11,21199201-199608

main90440-17051iCXR1#,2#,TCR1#,2#199608-199912

main90440-17051iCXR10,20..F199308-199501

main90440-17064iCXR10,20,TCR10,20199201-199608

51938FBOLT(FOR SPARE WHEEL CARRIER LOCK)

main51934-28030iCXR10,20,TCR10,20..X199201-199307

sub51934-28031

main51934-28031iCXR1#,2#,TCR1#,2#199608-199912

main51934-28031iCXR10,20..F199308-199501

main51934-28031iCXR11,21,TCR11,21199307-199608

main51934-28040iCXR10,20,TCR10,20199201-199307

sub51934-28041

main51934-28041iCXR10,20,TCR10,20199307-199608

51939ACAP, SPARE WHEEL CARRIER HANDLE

main51939-28090iCXR1#,2#,TCR1#,2#199201-199307

51957BRACKET, SPARE WHEEL CARRIER HINGE, RH

main51957-28030iCXR10,20,TCR10,20199201-199912

main51957-28040iCXR11,21,TCR11,21199201-199912

51958BRACKET, SPARE WHEEL CARRIER HINGE, LH

main51958-28010iCXR1#,2#,TCR1#,2#199201-199912

9046708056C0

main90467-08056C0

9046709037

main90467-09037

9046816024

main90468-16024

9165140816

main91651-40816

14 parts on this diagram · 1 diagram in section
