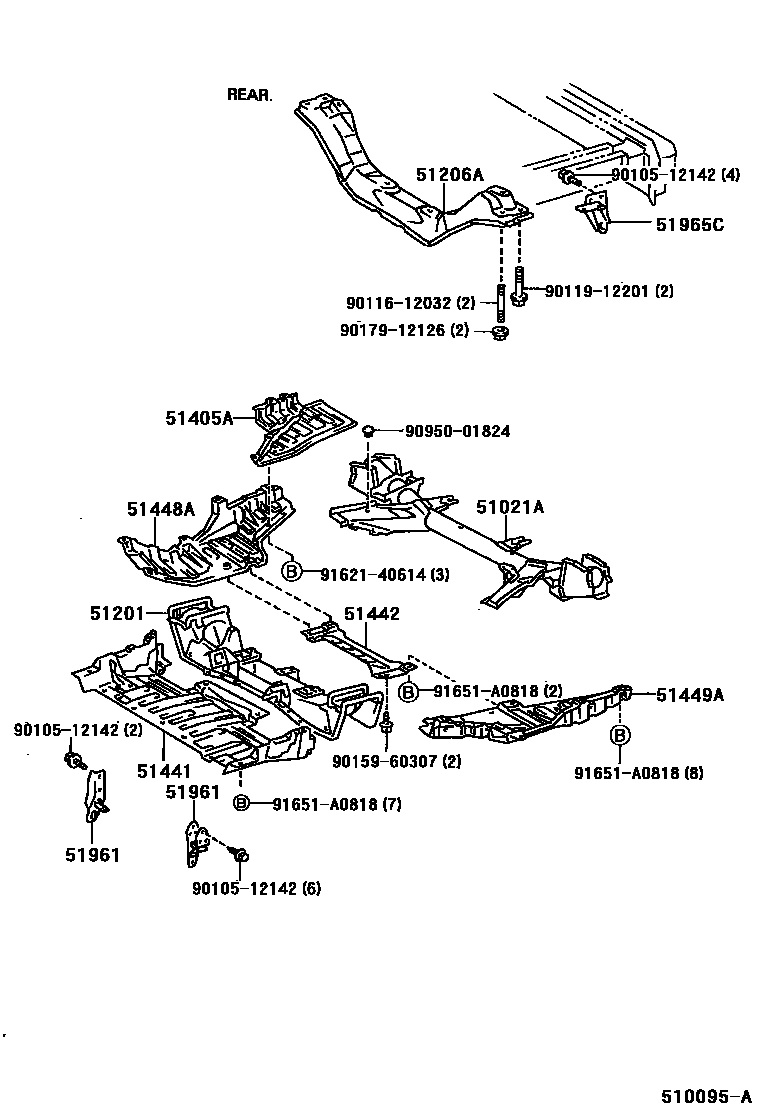

SUSPENSION CROSSMEMBER & UNDER COVER

0001 1 0002 1 0003 1 0004 1

51021AMEMBER SUB-ASSY, ENGINE FRONT SUPPORT

main51021-28010iTCR1#199201-199608

sub51021-28031

main51021-28020iTCR2#199201-199608

sub51021-28041

main51021-28030iCXR1#199201-199207

main51021-28031iCXR1#199207-199608

main51021-28040iCXR2#199201-199207

main51021-28041iCXR2#199207-199608

main51021-28080iCXR1#,TCR1#199608-199912

main51021-28090iCXR2#,TCR2#199608-199912

51201CROSSMEMBER SUB-ASSY, FRONT SUSPENSION

main51201-28020iCXR1#,TCR1#199201-199608

sub51201-28030

main51201-28030iCXR2#,TCR2#199201-199608

main51201-28040iCXR1#,TCR1#199608-199912

sub51201-28110

main51201-28110iCXR2#,TCR2#199608-199912

51206AMEMBER SUB-ASSY, REAR SUSPENSION

main51206-28050iCXR11,21,TCR11,21199201-199912

51405ACOVER SUB-ASSY, ENGINE UNDER, NO.1

main51405-28060iTCR1#,2#199501-199912

51441COVER, ENGINE UNDER, NO.1

main51410-28010iCXR1#,2#199201-199908

main51410-28020iTCR1#,2#199201-199608

main51410-28030iTCR1#,2#199608-199912

main51441-28040iCXR1#,2#199201-199608

sub51410-28010

main51441-28040iCXR1#,2#199308-199312

sub51410-28010

51442COVER, ENGINE UNDER, NO.2

main51406-28030iTCR1#,2#;CXR1#,2#..MTM199201-199312

main51420-28010iCXR1#,2#..ATM199201-199204

main51442-28060iCXR1#,2#199312-199412

sub51406-28030

main51442-28110iCXR1#,2#199412-199608

51448ACOVER, ENGINE SIDE UNDER, RH

main51440-28030iCXR1#,2#199201-199207

sub51440-28031

sub90179-08167

main51440-28031iCXR1#,2#199207-199608

main51440-28080iCXR1#,2#199608-199908

main51448-28030iTCR1#,2#199201-199608

main51448-28050iTCR1#,2#199608-199912

51449ACOVER, ENGINE SIDE UNDER, LH

main51449-28040iTCR1#,2#;CXR10,20..MTM199201-199608

main51449-28050iTCR1#,2#;CXR10,20..MTM199608-199912

main51450-28020iCXR1#,2#199201-199207

sub51450-28021

sub90179-08167

main51450-28021iCXR1#,2#199207-199608

main51450-28040iCXR1#,2#..ATM199608-199908

51961HOOK, NO.1

main51970-28010iCXR1#,2#,TCR1#,2#199201-199912

main51970-28020iCXR20,TCR20..ATM..X199405-199608

main51970-28020iCXR20,TCR20..ATM..X199405-199608

main51980-28010iCXR1#,2#,TCR1#,2#199201-199912

main51980-28030iCXR20,TCR20..XLUX199405-199608

main51980-28030iCXR20,TCR20..ATM..X199405-199608

51965CHOOK, REAR

main51965-28020iCXR1#,2#,TCR1#,2#199201-199912

9010512142

main90105-12142

9011612032

main90116-12032

9011912201

main90119-12201

9015960307

main90159-60307

9017912126

main90179-12126

9095001824

main90950-01824

9162140614

main91621-40614

91651A0818

main91651-A0818

18 parts on this diagram · 4 diagrams in section
