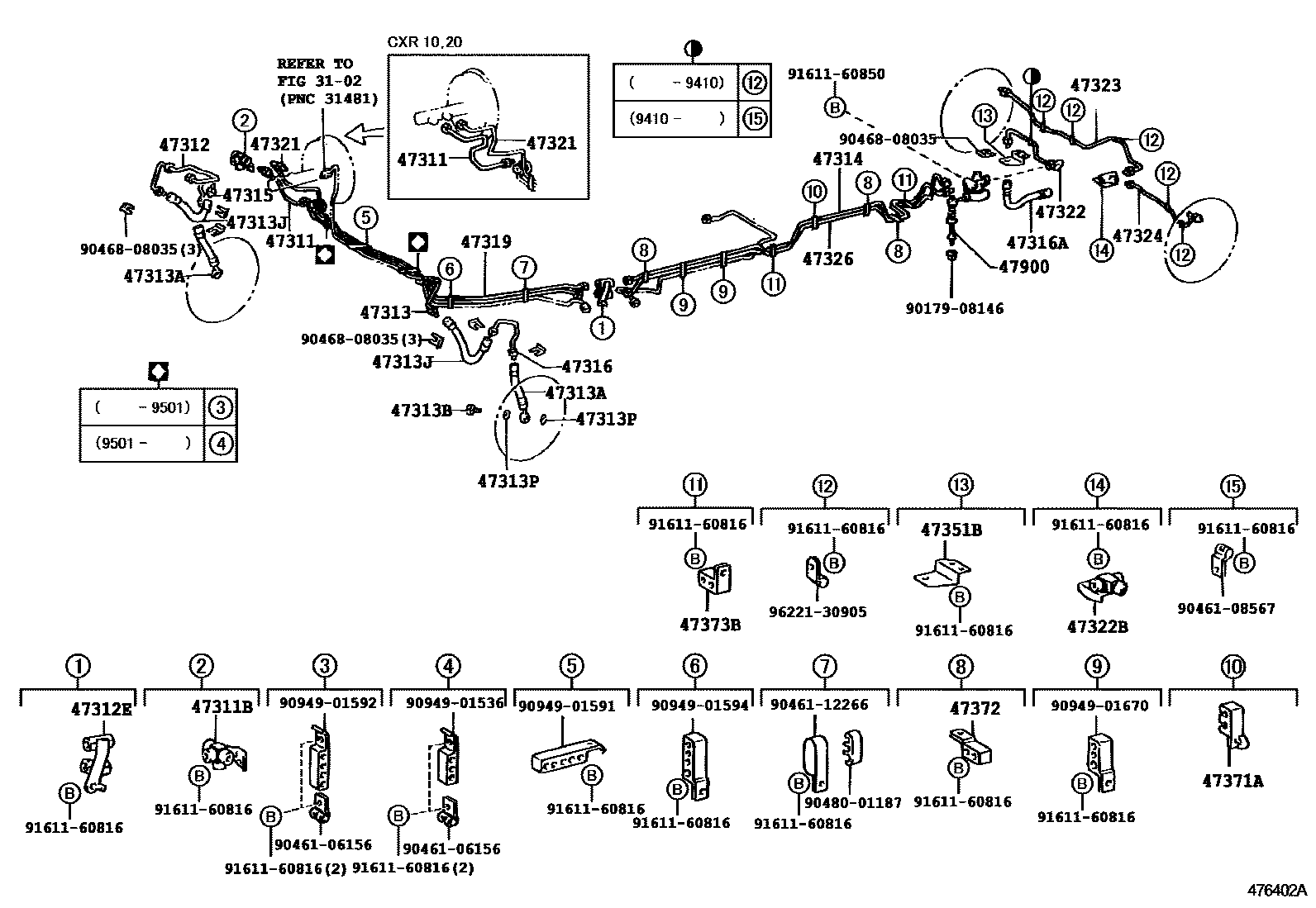

BRAKE TUBE & CLAMP

0001 1 0002 1 0003 1��(ABS) 0004 1��(ABS) 0005 1��(ABS) 0006 1��(ABS) 0007 1��(ABS) 0008 1��(ABS) 0009 1 0010 1 0011 1 0012 1 0013 1��(ABS) 0015 1��(ABS) 0016 1��(ABS) 0017 1��(ABS) 0018 1

3102

47311TUBE, FRONT BRAKE, NO.1

main47311-28270iTCR1#,2#199201-199608

main47311-28280iTCR11,21199201-199308

main47311-28281iTCR1#,2#199608-199912

main47311-28290iCXR1#,2#199201-199608

main47311-28300iCXR11,21;CXR10,20..TDEFI199201-199608

main47311-28301iCXR1#,2#199608-199908

47311BWAY, NO.1(FOR FRONT BRAKE TUBE)

main90413-10266iCXR11,21,TCR11,21199201-199308

main90414-10042iCXR1#,2#,TCR1#,2#199201-199608

47312TUBE, FRONT BRAKE, NO.2

main47312-28140iTCR11,21199201-199308

main47312-28170iCXR1#,2#,TCR1#,2#199201-199608

main47312-28180iCXR11,21199201-199308

main47312-28181iCXR1#,2#199308-199608

main47312-28182iCXR1#,2#199608-199908

main47312-28250iTCR1#,2#199501-199608

main47312-28251iTCR1#,2#199608-199912

47312EWAY, NO.2(FOR FRONT BRAKE TUBE)

main90412-10191iCXR1#,2#,TCR1#,2#199201-199608

47313TUBE, FRONT BRAKE, NO.3

main47313-28160iCXR1#,2#,TCR1#,2#199201-199501

main47313-28161iCXR1#,2#,TCR1#,2#199501-199608

main47313-28170iTCR1#,2#199308-199501

main47313-28180iCXR11,21199201-199308

main47313-28181iCXR1#,2#199308-199608

main47313-28182iCXR1#,2#199608-199908

main47313-28250iTCR1#,2#199501-199608

main47313-28251iTCR1#,2#199608-199912

47313AHOSE, FLEXIBLE, NO.1(FOR FRONT)

main90947-02604×2iCXR1#,2#,TCR1#,2#199201-199608

main90947-02882×2iCXR1#,2#,TCR1#,2#199608-199912

47313BBOLT, UNION(FOR FRONT FLEXIBLE HOSE)

main90401-10015×2iCXR1#,2#,TCR1#,2#199201-199912

47313JHOSE, FLEXIBLE, NO.2(FOR FRONT)

main90947-02720×2iCXR1#,2#,TCR1#,2#199201-199912

47313PGASKET(FOR FRONT FLEXIBLE HOSE)

main90430-10074×4iCXR1#,2#,TCR1#,2#199201-199912

47314TUBE, FRONT BRAKE, NO.4

main47314-28180iCXR10,20,TCR10,20199201-199608

main47314-28190iCXR11,21,TCR11,21199201-199608

47315TUBE, FRONT BRAKE, NO.5

main47315-28110iCXR1#,2#,TCR1#,2#199201-199912

47316TUBE, FRONT BRAKE, NO.6

main47316-28030iCXR1#,2#,TCR1#,2#199201-199912

47316AHOSE, FLEXIBLE(FOR REAR BRAKE TUBE)

main90947-02605iTCR11,21..S199201-199308

main90947-02617iCXR10,20,TCR10,20199201-199608

main90947-02622iCXR11,21,TCR11,21..G199201-199308

main90947-02712iCXR11,21,TCR11,21..G199201-199308

main90947-02713iTCR11,21..S199201-199308

main90947-02883iCXR10,20,TCR10,20199608-199912

47319TUBE, FRONT BRAKE, NO.9

main47319-28010iCXR1#,2#,TCR1#,2#199201-199501

main47319-28050iCXR1#,2#,TCR1#,2#199501-199608

47321TUBE, REAR BRAKE, NO.1

main47321-28270iTCR1#,2#199201-199501

main47321-28271iTCR1#,2#199501-199608

main47321-28280iTCR11,21199201-199308

main47321-28290iCXR1#,2#199201-199501

main47321-28291iCXR1#,2#199501-199608

main47321-28300iCXR11,21199201-199308

main47321-28301iCXR1#,2#199308-199608

main47321-28302iCXR1#,2#199608-199908

main47321-28420iTCR1#,2#199501-199608

main47321-28421iTCR1#,2#199608-199912

47322TUBE, REAR BRAKE, NO.2

main47322-28160iCXR11,21,TCR11,21199201-199608

main47322-28170iCXR10,20,TCR10,20199201-199410

main47322-28171iCXR10,20,TCR10,20199410-199608

47322BWAY, NO.2(FOR REAR BRAKE TUBE)

main90413-10245iCXR10,20,TCR10,20199201-199912

main90413-10246iCXR11,21,TCR11,21199201-199912

47323TUBE, REAR BRAKE, NO.3

main47323-28230iCXR10,20,TCR10,20199201-199608

main47323-28240iCXR11,21,TCR11,21199201-199912

main47323-28320iCXR10,20,TCR10,20199608-199912

47324TUBE, REAR BRAKE, NO.4

main47324-28140iCXR11,21,TCR11,21199201-199912

main47324-28160iCXR10,20,TCR10,20199201-199608

main47324-28190iCXR10,20,TCR10,20199308-199608

47326TUBE, REAR BRAKE, NO.6

main47326-28110iCXR10,20,TCR10,20199201-199608

main47326-28120iCXR11,21,TCR11,21199201-199608

main47326-28210iTCR11,21199608-199912

main47326-28220iTCR10,20199608-199912

main47326-28230iCXR11,21199608-199908

main47326-28240iCXR10,20199608-199908

47351BBRACKET, FLEXIBLE HOSE, NO.1

main47351-28060iCXR10,20,TCR10,20199201-199912

47371ACLAMP, BRAKE TUBE, NO.1

main47371-28010iCXR1#,2#,TCR1#,2#199201-199912

47372CLAMP, BRAKE TUBE, NO.2

main47372-25010×3iCXR1#,2#,TCR1#,2#199201-199608

main90949-01594iCXR1#,2#,TCR1#,2#199608-199912

47373BCLAMP, BRAKE TUBE, NO.3

main47373-25010×2iCXR1#,2#,TCR1#,2#199201-199608

main90461-06112×6iTCR10,20199608-199912

47900VALVE ASSY, LOAD SENSING W/SPRING

main47900-28200iCXR10,20,TCR10,20199201-199608

sub47900-28201

main47900-28311iCXR10,20,TCR10,20199308-199608

sub47900-28313

main47900-28340iTCR11,21..S199201-199308

sub47900-28341

main47900-28360iCXR11,21,TCR11,21..G,GLUX199201-199608

sub47900-28361

9017908146

main90179-08146

9046106156

main90461-06156

9046108567

main90461-08567

9046112266

main90461-12266

9046808035

main90468-08035

9048001187

main90480-01187

9094901536

main90949-01536

9094901591

main90949-01591

9094901592

main90949-01592

9094901594

main90949-01594

9094901670

main90949-01670

9161160816

main91611-60816

9161160850

main91611-60850

9622130905

main96221-30905

40 parts on this diagram · 17 diagrams in section
