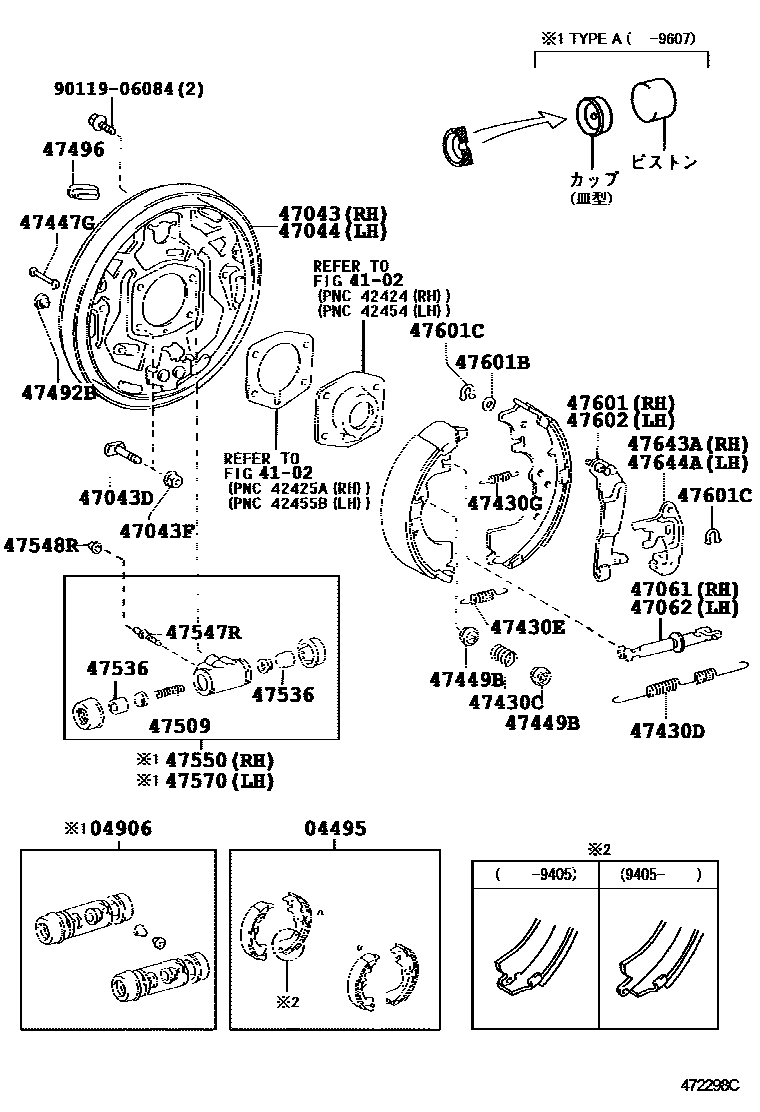

REAR DRUM BRAKE WHEEL CYLINDER & BACKING PLATE

0001 1 0002 1 0003 1 0004 1

04495SHOE KIT, REAR BRAKE

main04495-28071iCXR10,20,TCR10,20199201-199405

main04495-28080iCXR10,20,TCR10,20199405-199608

sub04495-28170

main04495-28090iCXR11,21,TCR11,21199405-199608

main04495-35131iCXR11,21,TCR11,21..G199201-199405

04906CUP KIT, REAR WHEEL CYLINDER

main04906-28030iCXR1#,2#,TCR1#,2#199607-199608

main04906-30100iCXR1#,2#,TCR1#,2#..D,F,G,GLUX,X,XLUX199201-199607

4102

47043PLATE SUB-ASSY, BRAKE BACKING, REAR RH

main47043-28070iCXR10,20,TCR10,20199201-199405

main47043-28080iCXR11,21,TCR11,21..G199201-199405

main47043-28100iCXR10,20,TCR10,20199405-199608

main47043-28110iCXR11,21,TCR11,21199405-199608

47043DBOLT(FOR BACKING PLATE TO REAR AXLE HOUSING SETTING)

main42184-28010iCXR10,20,TCR10,20199201-199608

main90119-10396iCXR11,21,TCR11,21..G,GLUX199201-199608

47043FNUT(FOR BACKING PLATE TO REAR AXLE HOUSING SETTING)

main90179-10150iCXR10,20,TCR10,20199201-199608

47044PLATE SUB-ASSY, BRAKE BACKING, REAR LH

main47044-28070iCXR10,20,TCR10,20199201-199405

main47044-28080iCXR11,21,TCR11,21..G199201-199405

main47044-28100iCXR10,20,TCR10,20199405-199608

main47044-28110iCXR11,21,TCR11,21199405-199608

47061STRUT SET, PARKING BRAKE SHOE, RH

main47061-28010iCXR11,21,TCR11,21..G,GLUX199201-199608

main47062-30030iCXR10,20,TCR10,20199201-199608

47062STRUT SET, PARKING BRAKE SHOE, LH

main47061-30030iCXR10,20,TCR10,20199201-199608

main47062-28010iCXR11,21,TCR11,21..G,GLUX199201-199608

47430CSPRING(FOR REAR BRAKE SHOE HOLD DOWN)

main90501-20756iCXR1#,2#,TCR1#,2#..D,F,G,GLUX,X,XLUX199201-199608

47430DSPRING, TENSION(FOR REAR BRAKE SHOE RETURN)

main90506-18076iCXR11,21,TCR11,21199405-199608

main90506-20005iCXR11,21,TCR11,21..G199201-199405

main90506-23003iCXR10,20,TCR10,20199201-199608

47430ESPRING, TENSION(FOR REAR BRAKE SHOE RETURN)

main90506-12015iCXR11,21,TCR11,21..G,GLUX199201-199608

main90506-18076iCXR10,20,TCR10,20199405-199608

main90506-23030iCXR10,20,TCR10,20199201-199405

47430GSPRING, TENSION(FOR REAR BRAKE AUTOMATIC ADJUST LEVER)

main90506-12480iCXR10,20,TCR10,20199201-199608

47447GPIN, SHOE HOLD DOWN SPRING(FOR REAR BRAKE)

main47447-30020iCXR1#,2#,TCR1#,2#..D,F,G,GLUX,X,XLUX199201-199608

47449BCUP, SHOE HOLD DOWN SPRING(FOR REAR BRAKE)

main47449-30020iCXR1#,2#,TCR1#,2#..D,F,G,GLUX,X,XLUX199201-199608

47492BPLUG, SHOE INSPECTION(FOR REAR BRAKE)

main47492-28010iCXR1#,2#,TCR1#,2#..D,F,G,GLUX,X,XLUX199201-199608

47496PLUG, HOLE(FOR REAR BRAKE)

main47491-20011iCXR1#,2#,TCR1#,2#..D,F,G,GLUX,X,XLUX199201-199608

47509SPRING SUB-ASSY, REAR WHEEL CYLINDER PISTON

main47509-20010iCXR1#,2#,TCR1#,2#..D,F,G,GLUX,X,XLUX199201-199607

main90029-60011iCXR1#,2#,TCR1#,2#199607-199608

47536PISTON, WHEEL BRAKE CYLINDER(FOR REAR BRAKE)

main47051-22020iCXR1#,2#,TCR1#,2#..D,F,G,GLUX,X,XLUX199201-199607

47547RPLUG, BLEEDER(FOR DRUM BRAKE, REAR)

main47547-27020iCXR1#,2#,TCR1#,2#..D,F,G,GLUX,X,XLUX199201-199608

47548RCAP, BLEEDER PLUG(FOR DRUM BRAKE, REAR)

main31478-30010iCXR1#,2#,TCR1#,2#..D,F,G,GLUX,X,XLUX199201-199608

47550CYLINDER ASSY, REAR WHEEL BRAKE(FOR RH, FRONT OR UPPER)

main47550-28020iCXR1#,2#,TCR1#,2#..D,F,G,GLUX,X,XLUX199201-199607

main47550-28021iCXR1#,2#,TCR1#,2#199607-199608

47570CYLINDER ASSY, REAR WHEEL BRAKE(FOR LH, FRONT OR UPPER)

main47550-28020iCXR1#,2#,TCR1#,2#..D,F,G,GLUX,X,XLUX199201-199607

main47550-28021iCXR1#,2#,TCR1#,2#199607-199608

47601LEVER SUB-ASSY, PARKING BRAKE SHOE, RH(FOR REAR BRAKE)

main47601-28010iCXR10,20,TCR10,20199201-199608

main47611-35020iCXR11,21,TCR11,21..G,GLUX199201-199608

47601BSHIM, REAR PARKING BRAKE SHOE LEVER

main90564-09001iCXR10,20,TCR10,20199201-199608

main90564-09002iCXR10,20,TCR10,20199201-199608

main90564-09003iCXR10,20,TCR10,20199201-199608

main90564-09184iCXR10,20,TCR10,20199201-199608

main90564-09185iCXR10,20,TCR10,20199201-199608

main90564-09186iCXR10,20,TCR10,20199201-199608

47601CWASHER, C(FOR REAR BRAKE)

main90213-06013iCXR10,20,TCR10,20199201-199608

main90213-07010iCXR10,20,TCR10,20199201-199608

main90213-07010iCXR10,20,TCR10,20199201-199608

47602LEVER SUB-ASSY, PARKING BRAKE SHOE, LH (FOR REAR BRAKE)

main47602-28010iCXR10,20,TCR10,20199201-199608

main47612-35020iCXR11,21,TCR11,21..G,GLUX199201-199608

47643ALEVER, REAR BRAKE AUTOMATIC ADJUST, RH

main47643-35020iCXR11,21,TCR11,21..G,GLUX199201-199608

main47644-30010iCXR10,20,TCR10,20199201-199608

47644ALEVER, REAR BRAKE AUTOMATIC ADJUST, LH

main47643-30010iCXR10,20,TCR10,20199201-199608

main47644-35020iCXR11,21,TCR11,21..G,GLUX199201-199608

9011906084

main90119-06084

30 parts on this diagram · 4 diagrams in section
