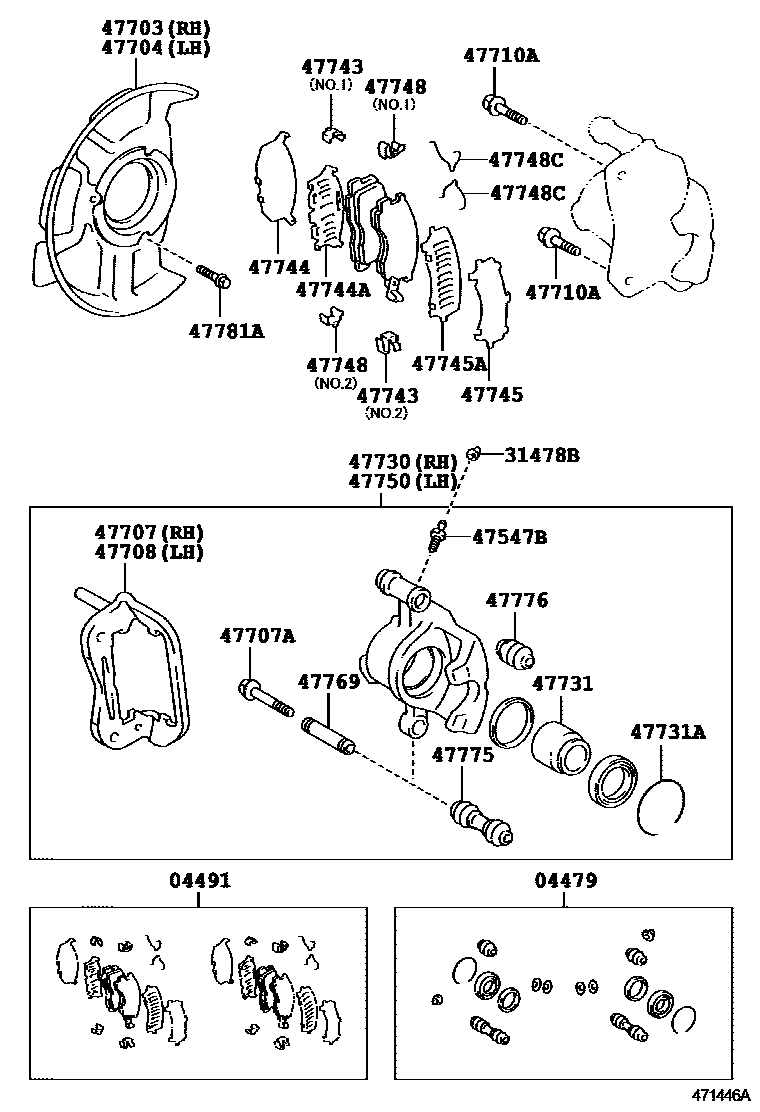

FRONT DISC BRAKE CALIPER & DUST COVER

0001 1 0003 1��(ABS) 0004 1

04479CYLINDER KIT, DISC BRAKE, FRONT

main04479-28031iTCR11,21..S199201-199308

main04479-28031iCXR1#,2#,TCR1#,2#199308-199501

main04479-28050iCXR1#,2#,TCR1#,2#..AERAS,D,ELU,F,G,GLUX,X,XLUX199201-199912

04491PAD KIT, DISC BRAKE, FRONT

main04491-28250iCXR1#,2#,TCR1#,2#199201-199308

sub04491-28251

main04491-28350iCXR1#,2#,TCR1#,2#199308-199310

sub04491-28351

main04491-28351iCXR1#,2#,TCR1#,2#199310-199505

sub04465-28170

main04491-28361iCXR1#,2#,TCR1#,2#199501-199505

sub04465-28150

31478BCAP, BLEEDER PLUG(FOR FRONT DISC BRAKE)

main31478-30010iCXR1#,2#,TCR1#,2#199201-199912

47547BPLUG, BLEEDER(FOR FRONT DISC BRAKE)

main47547-12020iCXR1#,2#,TCR1#,2#199201-199912

47703COVER SUB-ASSY, DISC BRAKE DUST, FRONT RH

main47703-28020iCXR1#,2#,TCR1#,2#..D,F,G,X199201-199308

main47703-28030iCXR11,21,TCR11,21..G199201-199308

main47781-28160iCXR1#,2#,TCR1#,2#199308-199608

sub47781-28161

main47781-28160iCXR1#,2#,TCR1#,2#199608-199808

sub47781-28161

main47781-28161iCXR1#,2#,TCR1#,2#199808-199912

main47781-28170iCXR1#,2#,TCR1#,2#199308-199608

47704COVER SUB-ASSY, DISC BRAKE DUST, FRONT LH

main47704-28020iCXR1#,2#,TCR1#,2#..D,F,G,X199201-199308

main47704-28030iTCR11,21..S199201-199308

main47782-28160iCXR1#,2#,TCR1#,2#199308-199608

sub47782-28161

main47782-28160iCXR1#,2#,TCR1#,2#199608-199808

sub47782-28161

main47782-28161iCXR1#,2#,TCR1#,2#199808-199912

main47782-28170iCXR1#,2#,TCR1#,2#199308-199608

47707PLATE SUB-ASSY, DISC BRAKE TORQUE, FRONT RH

main47707-28110iCXR1#,2#,TCR1#,2#..D,F,G,GLUX,X,XLUX199201-199608

main47707-28120iCXR1#,2#,TCR1#,2#199501-199608

main47707-28120iCXR1#,2#,TCR1#,2#199608-199912

main47707-28130iCXR11,21,TCR11,21..G199201-199308

main47707-28130iCXR1#,2#,TCR1#,2#199308-199501

47707ABOLT, HEXAGON(FOR FRONT DISC BRAKE TORQUE PLATE)

main90119-10385iCXR1#,2#,TCR1#,2#199201-199912

47708PLATE SUB-ASSY, DISC BRAKE TORQUE, FRONT LH

main47708-28110iCXR1#,2#,TCR1#,2#..D,F,G,GLUX,X,XLUX199201-199608

main47708-28120iCXR1#,2#,TCR1#,2#199608-199912

main47708-28120iCXR1#,2#,TCR1#,2#199501-199608

main47708-28130iCXR1#,2#,TCR1#,2#199308-199501

main47708-28130iTCR11,21..S199201-199308

47710ABOLT, HEXAGON(FOR FRONT DISC BRAKE CALIPER)

main90119-12186iCXR1#,2#,TCR1#,2#199201-199912

main90119-12187iCXR1#,2#,TCR1#,2#199201-199912

47730CYLINDER ASSY, FRONT DISC BRAKE, RH

main47730-28150iCXR1#,2#,TCR1#,2#..D,F,G,GLUX,X,XLUX199201-199608

main47730-28170iCXR1#,2#,TCR1#,2#199608-199912

main47730-28170iCXR1#,2#,TCR1#,2#199501-199608

main47730-28200iCXR11,21,TCR11,21..G199201-199308

main47730-28200iCXR1#,2#,TCR1#,2#199308-199501

47731PISTON, FRONT DISC BRAKE

main47731-28030iCXR11,21,TCR11,21..G199201-199308

main47731-28030iCXR1#,2#,TCR1#,2#199308-199501

main47731-28040iCXR1#,2#,TCR1#,2#..AERAS,D,ELU,F,G,GLUX,X,XLUX199201-199912

47731ARING, SET(FOR FRONT DISC BRAKE PISTON)

main90522-49001iTCR11,21..S199201-199308

main90522-49001iCXR1#,2#,TCR1#,2#199308-199501

main90522-67001iCXR1#,2#,TCR1#,2#..AERAS,D,ELU,F,G,GLUX,X,XLUX199201-199912

47743SPRING, ANTI-RATTLE, NO.2(FOR FRONT DISC BRAKE)

main47743-14040iCXR1#,2#,TCR1#,2#199201-199912

NO.2

main47743-28010iCXR1#,2#,TCR1#,2#199201-199912

NO.1

47744SHIM, ANTI-SQUEAL, NO.1(FOR FRONT DISC BRAKE)

main47745-28010iCXR1#,2#,TCR1#,2#199201-199209

main47745-28070iCXR1#,2#,TCR1#,2#199209-199608

main47745-28100iCXR1#,2#,TCR1#,2#199501-199608

47744ASHIM, ANTI-SQUEAL, NO.3(FOR FRONT DISC BRAKE)

main47744-28070iCXR1#,2#,TCR1#,2#199201-199209

main47744-28130iCXR1#,2#,TCR1#,2#199209-199608

main47744-28150iCXR1#,2#,TCR1#,2#199501-199608

47745SHIM, ANTI-SQUEAL, NO.2(FOR FRONT DISC BRAKE)

main47745-28020iCXR1#,2#,TCR1#,2#199201-199209

main47745-28090iCXR1#,2#,TCR1#,2#199209-199608

main47745-28110iCXR1#,2#,TCR1#,2#199501-199608

47745ASHIM, ANTI-SQUEAL, NO.4(FOR FRONT DISC BRAKE)

main47744-28080iCXR1#,2#,TCR1#,2#199201-199209

main47744-28140iCXR1#,2#,TCR1#,2#199209-199608

main47744-28160iCXR1#,2#,TCR1#,2#199501-199608

47748SPRING, ANTI-RATTLE, NO.1(FOR FRONT DISC BRAKE)

main47748-14050iCXR1#,2#,TCR1#,2#199201-199912

NO.1

main47748-28010iCXR1#,2#,TCR1#,2#199201-199912

NO.2

47748CSPRING, ANTI-RATTLE, NO.2(FOR FRONT DISC BRAKE)

main47748-20020iCXR1#,2#,TCR1#,2#199201-199912

47750CYLINDER ASSY, DISC BRAKE, LH

main47750-28150iCXR1#,2#,TCR1#,2#..D,F,G,GLUX,X,XLUX199201-199608

main47750-28170iCXR1#,2#,TCR1#,2#199501-199608

main47750-28170iCXR1#,2#,TCR1#,2#199608-199912

main47750-28200iTCR11,21..S199201-199308

main47750-28200iCXR1#,2#,TCR1#,2#199308-199501

47769BUSH, CYLINDER SLIDE, NO.1(FOR FRONT DISC BRAKE)

main47769-28020iCXR1#,2#,TCR1#,2#199201-199912

47775BOOT, BUSH DUST(FOR FRONT DISC BRAKE)

main47775-28020iCXR1#,2#,TCR1#,2#199201-199912

47776BOOT, MAIN PIN(FOR FRONT DISC BRAKE)

main47776-14010iCXR1#,2#,TCR1#,2#199201-199912

47781ABOLT(FOR DUST COVER TO STEERING KNUCKLE ARM SETTING)

main90109-06134iCXR1#,2#,TCR1#,2#199209-199912

main90119-06227iCXR1#,2#,TCR1#,2#199201-199209
