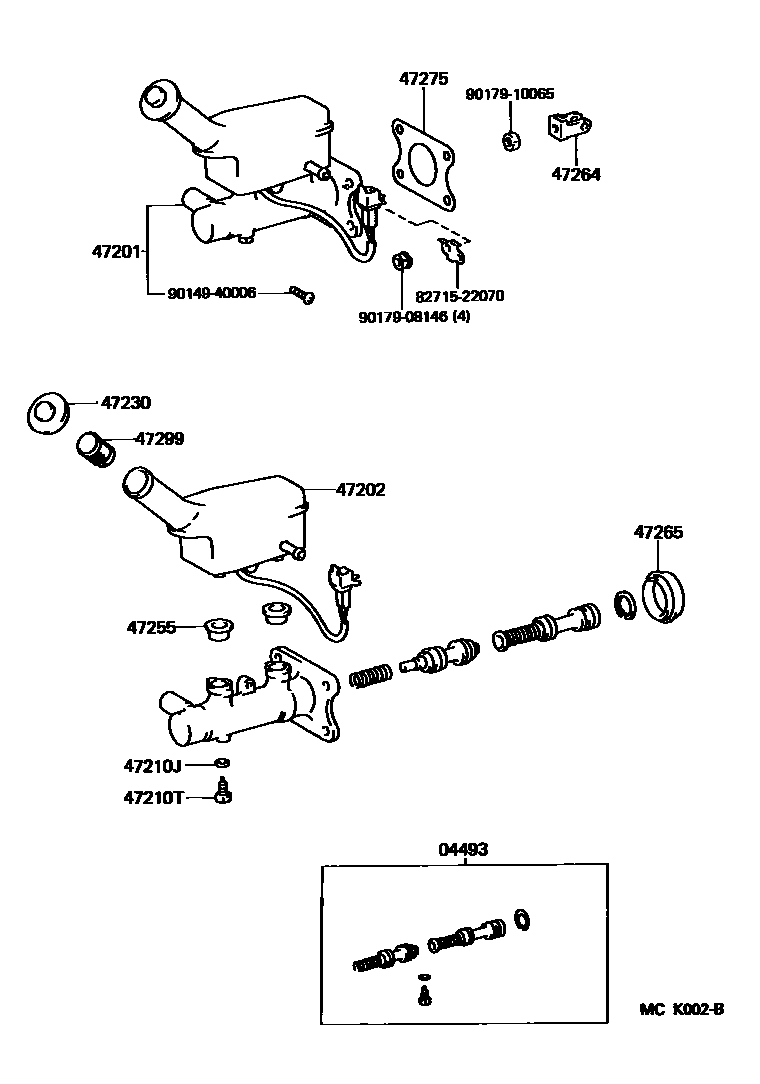

BRAKE MASTER CYLINDER

0001 1 0002 1

04493CYLINDER KIT, BRAKE MASTER

main04493-25070iTCR10,20..MTM199308-199608

main04493-28090iCXR11,21,TCR11,21199201-199608

main04493-28100iCXR1#,2#,TCR1#,2#199201-199501

sub04493-25070

main04493-30232iCXR1#,2#,TCR1#,2#199608-199912

47201CYLINDER SUB-ASSY, BRAKE MASTER

main47201-28210iTCR1#,2#..ATM199201-199608

sub47201-28360

main47201-28220iTCR10,20..MTM199201-199608

sub47201-28370

main47201-28230iTCR1#,2#..ATM199201-199608

sub47201-28340

main47201-28240iTCR10,2#..MTM199201-199608

sub47201-28350

main47201-28270iCXR1#,2#..ATM199201-199608

main47201-28280iCXR1#,2#..MTM199201-199608

main47201-28290iCXR11,21..ATM;CXR10,20..ATM..TDEFI199201-199608

main47201-28300iCXR11,21..MTM;CXR10,20..MTM..TDEFI199201-199608

main47201-28450iTCR1#,2#199608-199912

sub47201-28410

main47201-28460iCXR10,20..MTM199608-199908

main47201-28470iCXR1#,2#..ATM199608-199908

47202RESERVOIR SUB-ASSY, BRAKE MASTER CYLINDER

main47203-28120iCXR1#,2#,TCR1#,2#..ATM199201-199912

main47203-28130iCXR1#,2#,TCR10,2#..MTM199201-199908

47210JGASKET(FOR MASTER CYLINDER)

main90029-43001iCXR1#,2#,TCR1#,2#199705-199912

main90430-06104iCXR1#,2#,TCR1#,2#199201-199705

47210TBOLT(FOR BRAKE MASTER CYLINDER)

main90109-06077iCXR1#,2#,TCR1#,2#199201-199912

47230CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER

main47230-28020iCXR1#,2#,TCR1#,2#199201-199912

47255GROMMET, MASTER CYLINDER RESERVOIR

main47255-16010iCXR1#,2#,TCR1#,2#199201-199912

47264CLEVIS, MASTER CYLINDER PUSH ROD

main47264-50010iCXR1#,2#,TCR1#,2#199201-199912

47265BOOT, MASTER CYLINDER

main47265-20050iCXR1#,2#,TCR1#,2#199201-199506

47275GASKET, BRAKE MASTER CYLINDER

main47275-12020iCXR1#,2#,TCR1#,2#199608-199912

main47275-24010iCXR1#,2#,TCR1#,2#199201-199608

47299STRAINER, BRAKE MASTER CYLINDER RESERVOIR

main47299-28010iCXR1#,2#,TCR1#,2#199201-199912

8271522070BRACKET,WIRING HARNESS CLAMP

main82715-22070

9014940006

main90149-40006

9017908146

main90179-08146

9017910065

main90179-10065

15 parts on this diagram · 2 diagrams in section
