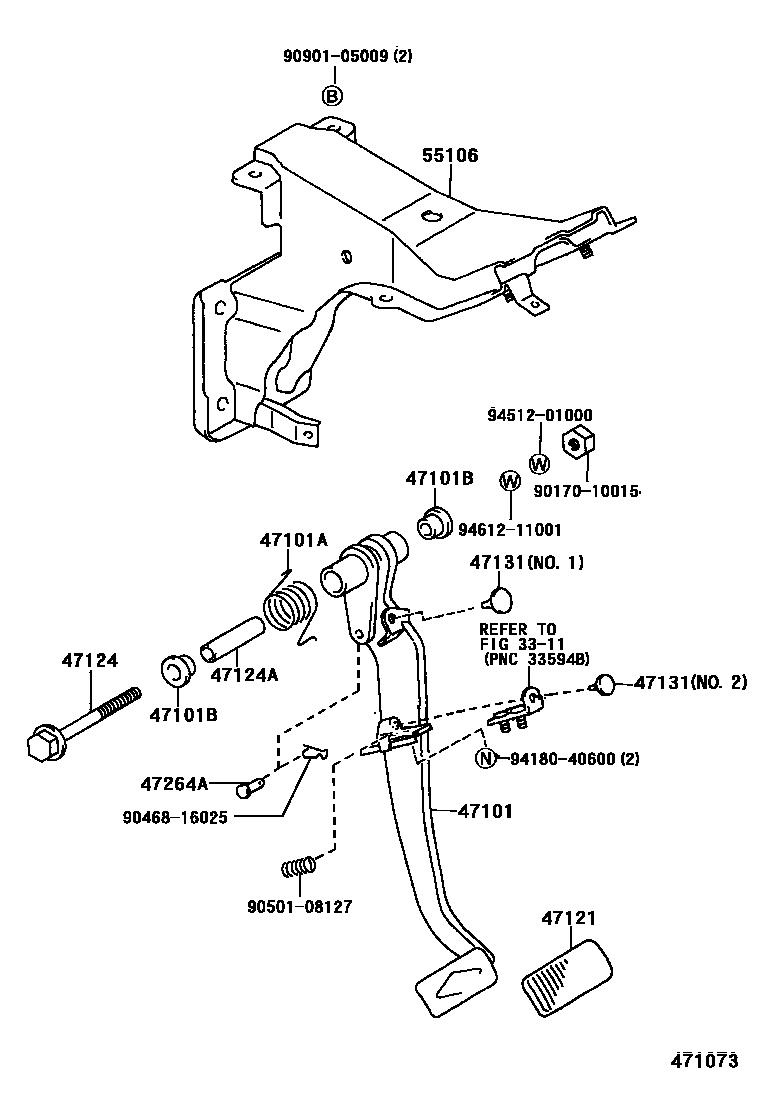

BRAKE PEDAL & BRACKET

0001 1 0002 1 0003 1

3311

47101PEDAL SUB-ASSY, BRAKE

main47101-28131iCXR1#,2#,TCR10,2#..MTM199201-199908

main47101-28150iCXR1#,2#,TCR1#,2#..ATM199201-199501

main47101-28180iCXR1#,2#,TCR1#,2#..ATM199501-199912

47101ASPRING(FOR BRAKE PEDAL RETURN)

main90508-35036iCXR1#,2#,TCR10,2#..MTM199201-199908

main90949-03005iCXR1#,2#,TCR1#,2#..ATM199201-199501

main90949-03029iCXR1#,2#,TCR1#,2#..ATM199501-199912

47101BBUSH(FOR BRAKE PEDAL)

main90386-13015iCXR1#,2#,TCR1#,2#199201-199912

47121PAD, BRAKE PEDAL

main31321-14020iCXR1#,2#,TCR10,2#..MTM199201-199908

main47121-12011iCXR1#,2#,TCR1#,2#..ATM199201-199912

sub47121-12020

47124SHAFT, BRAKE PEDAL

main90105-10017iCXR1#,2#,TCR1#,2#199201-199912

47124ACOLLAR(FOR BRAKE PEDAL SHAFT)

main90387-10002iCXR1#,2#,TCR1#,2#199201-199912

47131CUSHION(FOR STOP LAMP SWITCH)

main90541-06032iCXR1#,2#,TCR10,2#..MTM199201-199308

sub90541-06036

main90541-06036iCXR10,20,TCR10,20..MTM199308-199908

main90541-06036iCXR1#,2#,TCR1#,2#..ATM199308-199912

main90541-06049iCXR1#,2#,TCR1#,2#..ATM199201-199912

47264APIN(FOR PUSH ROD)

main90240-10037iCXR1#,2#,TCR1#,2#199201-199912

55106SUPPORT SUB-ASSY, BRAKE PEDAL

main55106-28120iCXR1#,2#,TCR1#,2#199201-199912

9017010015

main90170-10015

9046816025

main90468-16025

9050108127

main90501-08127

9090105009

main90901-05009

9418040600

main94180-40600

9451201000

main94512-01000

9461211001

main94612-11001

17 parts on this diagram · 3 diagrams in section
