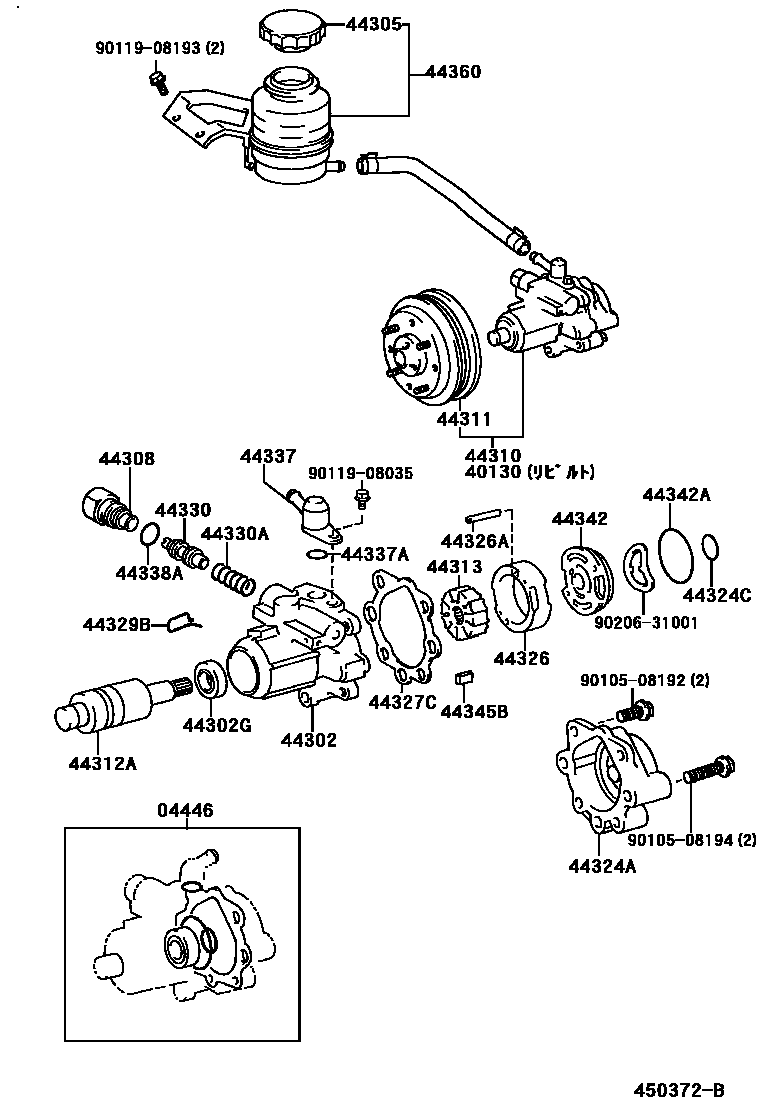

VANE PUMP & RESERVOIR (POWER STEERING)

04446GASKET KIT, POWER STEERING PUMP

main04446-28010iCXR1#,2#,TCR1#,2#¥1,880199201-199912

sub04446-43020¥1,860

40130PUMP ASSY,VANE REBUILT

main40130-28060iTCR1#,2#¥66,200199201-199501

sub44310-28060¥94,500

main40130-28100iCXR1#,2#¥72,900199201-199501

sub44310-28100¥94,200

main40130-28180iCXR1#,2#,TCR1#,2#¥66,100199501-199912

sub44310-28180¥94,400

44302HOUSING SUB-ASSY, VANE PUMP, FRONT

main44302-28012iCXR1#,2#,TCR1#,2#¥19,800199201-199912

44302GSEAL, OIL, NO.2(FOR VANE PUMP HOUSING)

main90311-17007iCXR1#,2#,TCR1#,2#¥190199201-199912

44305CAP SUB-ASSY, VANE PUMP OIL RESERVOIR

main44305-22030iCXR1#,2#,TCR1#,2#¥1,840199201-199912

sub44305-22050¥1,260

44308UNION SUB-ASSY, PRESSURE PORT

main44308-28021iCXR1#,2#,TCR1#,2#¥1,980199201-199912

44310PUMP ASSY, VANE

main44310-28060iTCR1#,2#¥94,500199201-199501

main44310-28100iCXR1#,2#¥94,200199201-199501

main44310-28180iCXR1#,2#,TCR1#,2#¥94,400199501-199912

44311PULLEY, VANE PUMP

main44311-28011iTCR1#,2#¥7,800199201-199912

main44311-28030iCXR1#,2#¥7,200199201-199501

44312ABEARING(FOR VANE PUMP SHAFT)

main44317-28030iCXR1#,2#,TCR1#,2#¥6,300199201-199912

44313ROTOR, VANE PUMP

main44313-26060iCXR1#,2#,TCR1#,2#¥7,700199201-199912

main44313-26070iCXR1#,2#,TCR1#,2#¥7,700199201-199912

main44313-26080iCXR1#,2#,TCR1#,2#¥7,700199201-199912

main44313-26090iCXR1#,2#,TCR1#,2#¥7,700199201-199912

main44313-26100iCXR1#,2#,TCR1#,2#¥7,700199201-199912

44324AHOUSING, PUMP, REAR

main44324-28030iCXR1#,2#,TCR1#,2#¥2,510199201-199912

44324CRING, O(FOR PUMP HOUSING REAR)

main90301-18007iCXR1#,2#,TCR1#,2#¥110199201-199912

44326RING, CAM(FOR VANE PUMP)

main44325-32270iCXR1#,2#,TCR1#,2#¥6,700199201-199912

main44325-32280iCXR1#,2#,TCR1#,2#¥6,700199201-199912

main44325-32290iCXR1#,2#,TCR1#,2#¥6,700199201-199912

main44325-32300iCXR1#,2#,TCR1#,2#¥6,700199201-199912

main44325-32310iCXR1#,2#,TCR1#,2#¥6,700199201-199912

44326APIN, STRAIGHT(FOR VANE PUMP CAM RING)

main90250-04071iCXR1#,2#,TCR1#,2#¥110199201-199912

44327CGASKET, VANE PUMP HOUSING

main44327-26010iCXR1#,2#,TCR1#,2#¥460199201-199912

44329BWIRE, VANE PUMP BEARING

main44329-28010iCXR1#,2#,TCR1#,2#¥370199201-199912

44330VALVE ASSY, FLOW CONTROL

main44330-28011iTCR1#,2#¥8,700199201-199501

main44330-28021iTCR1#,2#¥8,700199201-199501

main44330-28031iTCR1#,2#¥8,700199201-199501

main44330-28041iTCR1#,2#¥8,700199201-199501

main44330-28051iCXR1#,2#,TCR1#,2#¥8,700199201-199501

main44330-28061iCXR1#,2#,TCR1#,2#¥8,700199201-199501

main44330-28070iCXR1#,2#¥8,600199307-199912

sub44330-28011¥8,700

main44330-28080iCXR1#,2#,TCR1#,2#¥8,600199307-199912

sub44330-28021¥8,700

main44330-28090iCXR1#,2#,TCR1#,2#¥8,600199307-199912

sub44330-28031¥8,700

main44330-28100iCXR1#,2#,TCR1#,2#¥8,600199307-199912

sub44330-28041¥8,700

main44330-28110iCXR1#,2#¥8,600199307-199912

sub44330-28051¥8,700

main44330-28120iCXR1#,2#,TCR1#,2#¥8,600199308-199912

sub44330-28061¥8,700

44330ASPRING, COMPRESSION(FOR FLOW CONTROL VALVE)

main90501-13034iCXR1#,2#,TCR1#,2#¥160199201-199912

44337UNION, POWER STEERING SUCTION PORT

main44337-28050iCXR1#,2#,TCR1#,2#¥1,890199201-199608

main44337-28051iCXR1#,2#,TCR1#,2#¥1,880199608-199912

44337ARING, O(FOR POWER STEERING SUCTION PORT)

main90301-11010iCXR1#,2#,TCR1#,2#¥270199201-199609

sub90301-11016¥140

main90301-11016iCXR1#,2#,TCR1#,2#¥140199609-199912

44338ARING, O(FOR PRESSURE PORT UNION)

main90301-19003iCXR1#,2#,TCR1#,2#¥300199201-199609

sub90301-19013¥260

main90301-19013iCXR1#,2#,TCR1#,2#¥260199609-199912

sub90301-19018¥240

44342PLATE, VANE PUMP SIDE, REAR

main44342-26020iCXR1#,2#,TCR1#,2#¥1,530199204-199912

main44342-32060iCXR1#,2#,TCR1#,2#¥1,530199201-199204

sub44342-26020¥1,530

44342ARING, O(FOR VANE PUMP SIDE PLATE REAR)

main90301-47001iCXR1#,2#,TCR1#,2#¥170199201-199912

44345BPLATE, VANE PUMP

main44345-26010iCXR1#,2#,TCR1#,2#¥700199201-199912

main44345-26020iCXR1#,2#,TCR1#,2#¥700199201-199912

main44345-26030iCXR1#,2#,TCR1#,2#¥700199201-199912

main44345-26040iCXR1#,2#,TCR1#,2#¥700199201-199912

main44345-26050iCXR1#,2#,TCR1#,2#¥700199201-199912

44360RESERVOIR ASSY, VANE PUMP OIL

main44360-28090iCXR1#,2#,TCR1#,2#¥10,000199201-199912

9010508192

main90105-08192¥130

9010508194

main90105-08194¥130

9011908035

main90119-08035¥110

9011908193

main90119-08193¥190

9020631001

main90206-31001¥160

30 parts on this diagram · 1 diagram in section
