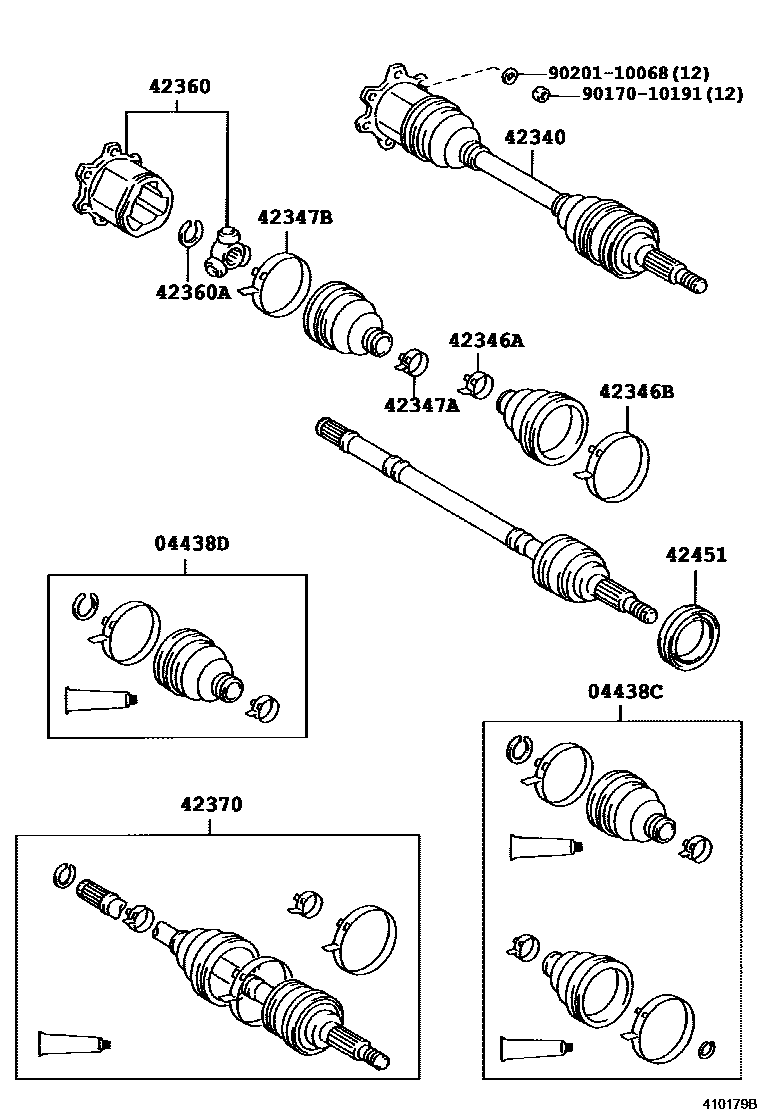

REAR AXLE SHAFT & HUB

0001 1 0002 1 0003 1

04438CBOOT KIT, REAR DRIVE SHAFT

main04437-28030iCXR11,21,TCR11,21199201-199906

sub04437-28011

main04437-28031iCXR11,21,TCR11,21199906-199912

sub04437-28011

04438DBOOT KIT, REAR DRIVE SHAFT INBOARD JOINT

main04437-28020iCXR11,21,TCR11,21199201-199906

sub04437-28021

main04437-28021iCXR11,21,TCR11,21199906-199912

sub04439-26020

42340SHAFT ASSY, REAR DRIVE

main42340-28050iCXR11,21,TCR11,21..G199201-199210

sub42340-28051

sub42428-24010

sub90179-26006

main42340-28051iCXR11,21,TCR11,21..G,GLUX199210-199608

main42340-28060iTCR11,21..S199201-199210

sub42340-28061

sub42428-24010

sub90179-26006

main42340-28060iTCR11,21..S199201-199210

sub42340-28061

sub42428-24010

sub90179-26006

main42340-28061iTCR11,21..S199210-199308

main42340-28061iCXR11,21,TCR11,21..G199210-199308

main42340-28061iCXR11,21,TCR11,21199308-199608

main42340-28061iCXR11,21,TCR11,21199608-199912

42346ACLAMP (FOR REAR DRIVE SHAFT OUTBOARD JOINT BOOT)

main42345-14010iCXR11,21,TCR11,21199201-199912

main90949-01473iCXR11,21,TCR11,21199307-199308

42346BCLAMP, NO. 2 (FOR RR DRIVE SHAFT OUTBOARD JOINT BOOT)

main90949-01473iCXR11,21,TCR11,21199201-199912

42347ACLAMP (FOR REAR DRIVE SHAFT INBOARD JOINT BOOT)

main42345-14010iCXR11,21,TCR11,21199201-199912

42347BCLAMP, NO.2 (FOR REAR DRIVE SHAFT INBOARD JOINT BOOT)

main42345-30010iCXR11,21,TCR11,21199201-199912

42360JOINT ASSY, REAR DRIVE SHAFT INBOARD

main43403-28020iCXR11,21,TCR11,21199201-199906

sub43403-28030

main43403-28030iCXR11,21,TCR11,21199906-199912

42360ARING, SHAFT SNAP (FOR REAR DRIVE SHAFT INBOARD JOINT)

main90520-26028iCXR11,21,TCR11,21199201-199912

42370SHAFT ASSY, REAR DRIVE OUTBOARD JOINT

main42370-29125iCXR11,21,TCR11,21..G199201-199210

sub42370-29126

sub42428-24010

sub90179-26006

main42370-29126iCXR11,21,TCR11,21..G,GLUX199210-199608

sub42370-29137

main42370-29135iTCR11,21..S199201-199210

sub42370-29136

sub42428-24010

sub90179-26006

main42370-29136iCXR11,21,TCR11,21199308-199608

sub42370-29137

main42370-29136iCXR11,21,TCR11,21199608-199906

sub42370-29137

main42370-29136iTCR11,21..S199210-199308

sub42370-29137

main42370-29137iCXR11,21,TCR11,21199906-199912

42451DEFLECTOR, REAR WHEEL BEARING DUST, NO.1

main42452-28010iCXR11,21;TCR11,21..GLUX199308-199908

main42452-28010iTCR11,21..S199201-199308

main42452-28010iCXR11,21,TCR11,21..G..(EFI,TD)199201-199912

main42452-28020iCXR11,21,TCR11,21..G,GLUX199201-199608

9017010191

main90170-10191

9020110068

main90201-10068

13 parts on this diagram · 3 diagrams in section
