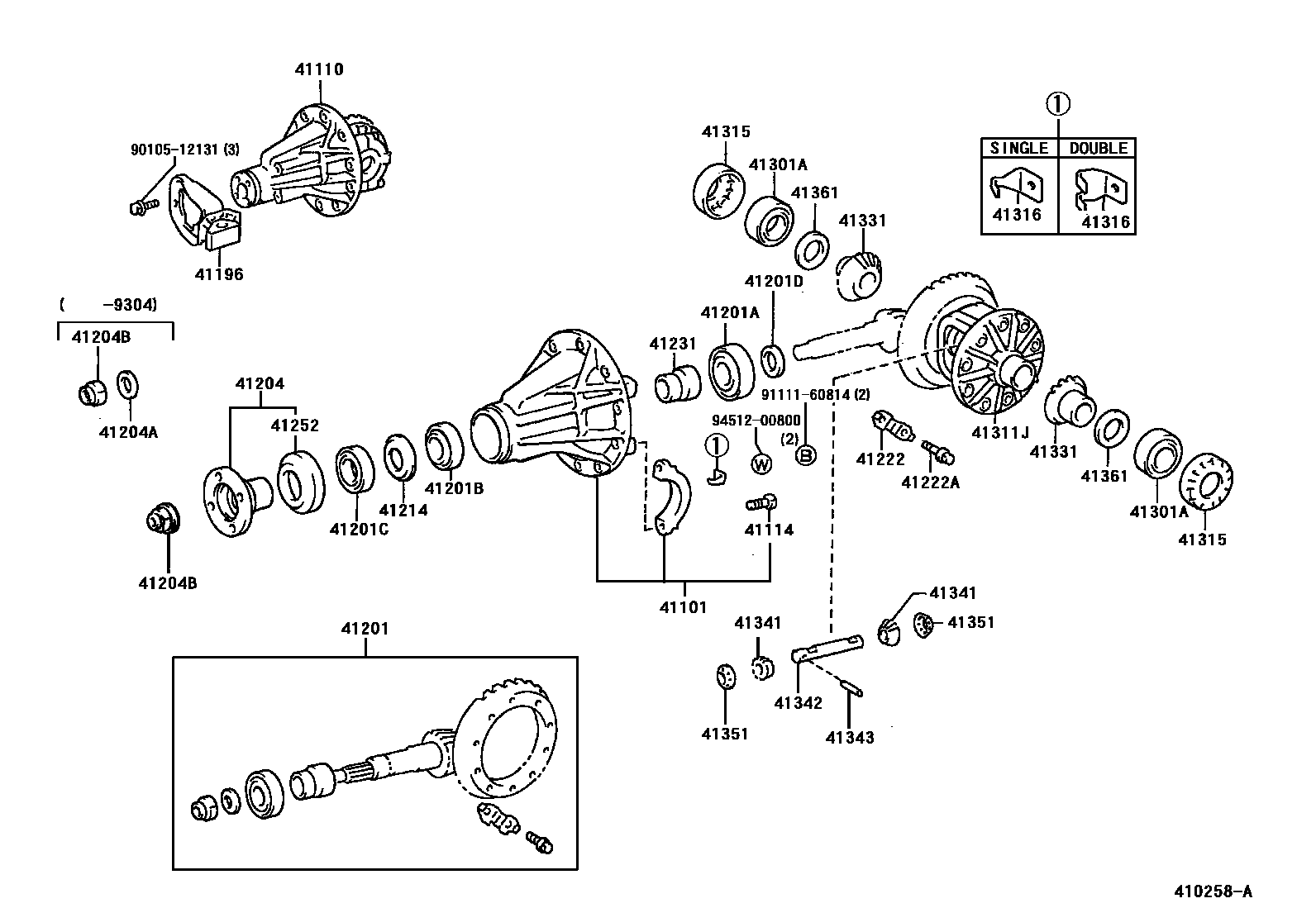

REAR AXLE HOUSING & DIFFERENTIAL

0001 1 0002 1 0003 1

41101CARRIER SUB-ASSY, DIFFERENTIAL, REAR

main41101-28030iCXR11,21,TCR11,21199201-199912

main41101-30031iCXR10..TD;CXR20,TCR20;CXR10,TCR10..ATM..(EFI,TDEFI)199201-199912

main41101-30040iCXR10,TCR10..MTM..(EFI,TDEFI)199201-199908

41110CARRIER ASSY, DIFFERENTIAL, REAR

main41110-28070iCXR20,TCR20;CXR10,TCR10..ATM199201-199912

main41110-28140iCXR10..MTM199201-199308

main41110-28170iCXR10..ATM199201-199401

main41110-28200iCXR11,21,TCR11,21199201-199912

main41110-28250iCXR11..MTM199201-199308

main41110-28260iCXR11..ATM199201-199401

main41110-28300iCXR10,TCR10..MTM..(EFI,TDEFI)199201-199908

41114BOLT, REAR DIFFERENTIAL BEARING CAP

main90105-12053iCXR10,20,TCR10,20199201-199912

main90105-12163iCXR11,21,TCR11,21199201-199912

41196DAMPER, REAR DIFFERENTIAL DYNAMIC

main41196-28010iTCR10..MTM199201-199608

main41196-28060iTCR11,21199608-199912

41201FINAL GEAR KIT, DIFFERENTIAL, REAR

main41201-80004iCXR2#,TCR2#;CXR1#,TCR1#..ATM199201-199912

main41201-80019iCXR10,TCR10..MTM199201-199906

main41201-80048iCXR11..MTM199201-199308

sub41201-80054

41201ABEARING (FOR REAR DRIVE PINION REAR)

main90366-35023iCXR11,21,TCR11,21199201-199912

main90366-35073iCXR10,20,TCR10,20199201-199311

41201BBEARING (FOR REAR DRIVE PINION FRONT)

main90366-30022iCXR11,21,TCR11,21199201-199912

sub90366-30078

main90366-30055iCXR10,20,TCR10,20199201-199912

41201CSEAL, OIL (FOR REAR DIFFERENTIAL CARRIER)

main90311-38010iCXR11,21,TCR11,21199201-199912

main90311-38047iCXR10,20,TCR10,20199512-199912

main90311-38133iCXR10,20,TCR10,20199201-199512

sub90311-38047

41201DWASHER, PLATE (FOR REAR DIFFERENTIAL DRIVE PINION)

main90201-35396iCXR1#,2#,TCR1#,2#199201-199912

main90201-35397iCXR1#,2#,TCR1#,2#199201-199912

main90201-35398iCXR1#,2#,TCR1#,2#199201-199912

main90201-35399iCXR1#,2#,TCR1#,2#199201-199912

main90201-35400iCXR1#,2#,TCR1#,2#199201-199912

main90201-35401iCXR1#,2#,TCR1#,2#199201-199912

main90201-35402iCXR1#,2#,TCR1#,2#199201-199912

main90201-35403iCXR1#,2#,TCR1#,2#199201-199912

main90201-35404iCXR1#,2#,TCR1#,2#199201-199912

main90201-35434iCXR1#,2#,TCR1#,2#199201-199309

sub90201-35515

main90201-35435iCXR1#,2#,TCR1#,2#199201-199309

sub90201-35516

main90201-35436iCXR1#,2#,TCR1#,2#199201-199309

sub90201-35517

main90201-35437iCXR1#,2#,TCR1#,2#199201-199309

sub90201-35518

main90201-35438iCXR1#,2#,TCR1#,2#199201-199912

main90201-35439iCXR1#,2#,TCR1#,2#199201-199912

main90201-35440iCXR1#,2#,TCR1#,2#199201-199912

main90201-35441iCXR1#,2#,TCR1#,2#199201-199912

main90201-35515iCXR1#,2#,TCR1#,2#199309-199912

main90201-35516iCXR1#,2#,TCR1#,2#199309-199912

main90201-35517iCXR1#,2#,TCR1#,2#199309-199912

main90201-35518iCXR1#,2#,TCR1#,2#199309-199912

41204FLANGE SUB-ASSY, REAR DRIVE PINION COMPANION, REAR

main41204-35050iCXR1#,2#,TCR1#,2#199201-199912

41204AWASHER, PLATE (FOR REAR DRIVE PINION)

main90201-18485iCXR1#,2#,TCR1#,2#199201-199308

41204BNUT (FOR REAR DRIVE PINION)

main90179-18001iCXR1#,2#,TCR1#,2#199201-199308

main90179-18020iCXR10,20,TCR10,20199304-199912

41214SLINGER, REAR DIFFERENTIAL DRIVE PINION OIL

main41214-30021iCXR1#,2#,TCR1#,2#199201-199912

41222PLATE, REAR DIFFERENTIAL RING GEAR SET BOLT LOCK

main41222-35030iCXR1#,2#,TCR1#,2#199201-199912

41222ABOLT (FOR REAR DIFFERENTIAL RING GEAR SET)

main90101-11353iCXR1#,2#,TCR1#,2#199201-199912

41231SPACER, REAR DIFFERENTIAL DRIVE PINION BEARING

main41231-22010iCXR1#,2#,TCR1#,2#199201-199912

41252DEFLECTOR, DUST (FOR REAR DIFFERENTIAL)

main41252-30010iCXR1#,2#,TCR1#,2#199201-199912

41301ABEARING(FOR REAR DIFFERENTIAL CASE)

main90368-45066iCXR10,20,TCR10,20199201-199912

main90368-50006iCXR11,21,TCR11,21199201-199912

41311JCASE, REAR DIFFERENTIAL

main41311-22060iCXR11,21,TCR11,21199201-199912

main41311-28010iCXR10;TCR10..MTM199201-199908

main41311-28030iCXR11199201-199401

main41311-30050iTCR10..ATM;CXR20,TCR20199201-199912

sub41311-28010

41315NUT, REAR DIFFERENTIAL BEARING ADJUSTING

main41315-35010iCXR10,20,TCR10,20199201-199912

41316LOCK, REAR DIFFERENTIAL BEARING ADJUSTING NUT

main41316-30010iCXR10,20,TCR10,20199201-199308

main41316-35010iCXR10,20,TCR10,20199308-199912

main41317-30010iCXR10,20,TCR10,20199201-199912

41331GEAR, REAR DIFFERENTIAL SIDE

main41331-14040iCXR11,21,TCR11,21199201-199912

sub41331-14041

main41331-30030iCXR10,20,TCR10,20199201-199912

41341PINION, REAR DIFFERENTIAL

main41341-30020iCXR1#,2#,TCR1#,2#199201-199912

sub41341-30050

41342SHAFT, REAR DIFFERENTIAL PINION

main41342-22020iCXR1#,2#,TCR1#,2#199201-199912

sub41342-22021

41343PIN, REAR DIFFERENTIAL PINION SHAFT

main90250-06058iCXR1#,2#,TCR1#,2#199201-199912

41351WASHER, REAR DIFFERENTIAL PINION THRUST

main41351-30060iCXR1#,2#,TCR1#,2#199201-199912

41361WASHER, REAR DIFFERENTIAL SIDE GEAR THRUST, NO.1

main41361-30040iCXR1#,2#,TCR1#,2#199201-199912

main41361-30050iCXR1#,2#,TCR1#,2#199201-199912

main41361-30060iCXR1#,2#,TCR1#,2#199201-199912

main41361-30070iCXR1#,2#,TCR1#,2#199201-199912

9010512131

main90105-12131

9111160814

main91111-60814

9451200800

main94512-00800

30 parts on this diagram · 3 diagrams in section
