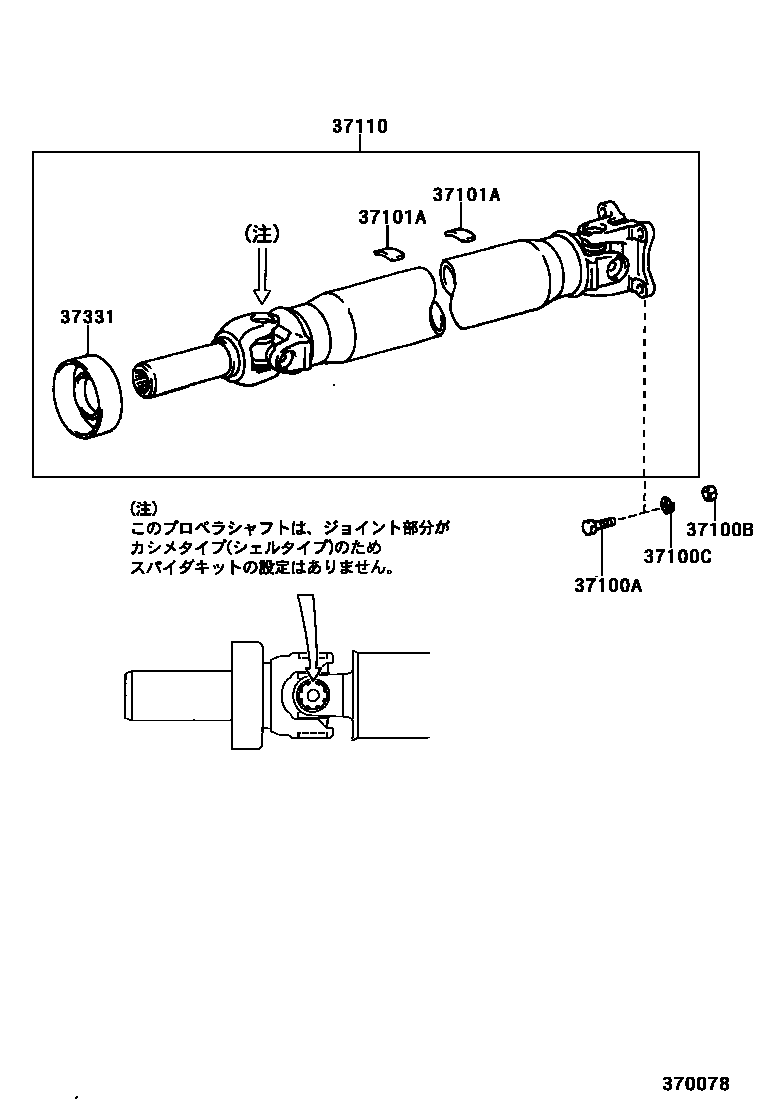

PROPELLER SHAFT & UNIVERSAL JOINT

0001 1 0003 1 0004 1���� 0005 1��

37100SHAFT ASSY, PROPELLER W/CENTER BEARING

main37100-28010iTCR2#..MTM199201-199608

main37100-28020iCXR2#,TCR2#..ATM199201-199912

main37100-28030iCXR2#..MTM199201-199308

main37100-28060iCXR20..MTM199308-199908

37100ABOLT, NO.1 (FOR PROPELLER SHAFT & DIFFERENTIAL SETTING)

main90105-10085iCXR1#,2#,TCR1#,2#199201-199912

37100BNUT, NO.1 (FOR PROPELLER SHAFT & DIFFERENTIAL SETTING)

main90179-10059iCXR2#,TCR2#199201-199912

37100CWASHER, NO.1 (FOR PROPELLER SHAFT & DIFFERENTIAL SETTING)

main90204-10002iCXR1#,TCR1#199201-199912

sub90560-10H00

37101APIECE, BALANCE, NO.1 (FOR PROPELLER SHAFT)

main90937-01132iCXR1#,2#,TCR1#,2#199201-199912

main90937-01136iCXR1#,2#,TCR1#,2#199201-199912

main90937-01140iCXR1#,2#,TCR1#,2#199201-199912

main90937-01147iCXR1#,2#,TCR1#,2#199201-199912

main90937-01148iCXR1#,2#,TCR1#,2#199201-199912

main90937-01149iCXR1#,2#,TCR1#,2#199201-199912

main90937-01150iCXR1#,2#,TCR1#,2#199201-199912

main90937-01151iCXR1#,2#,TCR1#,2#199201-199912

main90937-01152iCXR1#,2#,TCR1#,2#199201-199912

main90937-01153iCXR1#,2#,TCR1#,2#199201-199912

main90937-01154iCXR1#,2#,TCR1#,2#199201-199912

main90937-01155iCXR1#,2#,TCR1#,2#199201-199912

main90937-01156iCXR1#,2#,TCR1#,2#199201-199912

main90937-01157iCXR1#,2#,TCR1#,2#199201-199912

main90937-01158iCXR1#,2#,TCR1#,2#199201-199912

main90937-01201iCXR1#,2#,TCR1#,2#199201-199912

main90937-01202iCXR1#,2#,TCR1#,2#199201-199912

main90937-01203iCXR1#,2#,TCR1#,2#199201-199912

main90937-01204iCXR1#,2#,TCR1#,2#199201-199912

main90937-01205iCXR1#,2#,TCR1#,2#199201-199912

main90937-01396iCXR1#,2#,TCR1#,2#199201-199912

main90937-01397iCXR1#,2#,TCR1#,2#199201-199912

main90937-01398iCXR1#,2#,TCR1#,2#199201-199912

main90937-01399iCXR1#,2#,TCR1#,2#199201-199912

main90937-01400iCXR1#,2#,TCR1#,2#199201-199912

main90937-01401iCXR1#,2#,TCR1#,2#199201-199912

main90937-01402iCXR1#,2#,TCR1#,2#199201-199912

37110SHAFT ASSY, PROPELLER

main37110-28260iCXR2#,TCR2#199201-199912

main37110-28270iTCR10..MTM199201-199608

main37110-28290iCXR10,TCR10..ATM199201-199505

sub37110-28400

main37110-28300iCXR11,TCR11..ATM199201-199912

main37110-28330iCXR10..MTM199201-199908

main37110-28340iCXR11..MTM199201-199308

main37110-28400iCXR10,TCR10..ATM199505-199912

37331COVER, SLIDING SHAFT DUST

main37331-30010iCXR1#,TCR1#199201-199912

7 parts on this diagram · 4 diagrams in section
